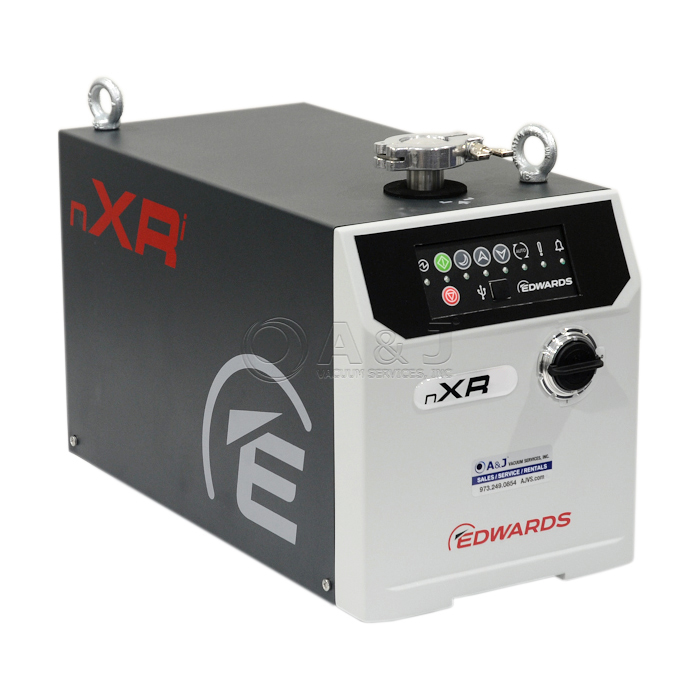

Edwards nXR60i Dry Multi Stage Roots Pump, 35 cfm, 60 m3/h, 100-127/ 200-240 VAC 50/60 Hz, 1Ph, NW40, A90502983

Main image
Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8
Condition: New
Item#:PN24591
Mfr Part#:A90502983
Manufacturer:Edwards Vacuum
PRICE:
$21,020.00
Web savings:
$1,220.01
YOU PAY:
$19,799.99
Request a repair estimate Request sales quote Financing available
New Edwards nXR60i Dry Multi Stage Roots Pump, 35 cfm, 60 m3/h, 100-127/ 200-240 VAC 50/60 Hz, 1Ph, NW40, A90502983
Features:
  • Single Phase, Air Cooled and Quiet, dB(A) 55
  • Pumping Speed of 60 m3/h, 35 cfm
  • Inlet Flange NW 40
  • Ultimate Vacuum (Total Pressure) mbar <2 x 10-2
  • Overview
  • Specifications
  • Manuals
  • MFR Brochures
  • Videos
  • Accessories
  • Service & Repair
12 months warranty

Edwards nXR60i Dry Multi Stage Roots Pump, 35 cfm, 60 m3/h, 100-127/ 200-240 VAC 50/60 Hz, 1Ph, NW40, A90502983



Edwards nXR60i Features:

  • Single phase, air cooled and quiet
  • Pumping Speed of 60 m3/h
  • Zero contamination makes the difference. Totally oil free and dust free within the vacuum chamber.
  • Flexibility of control – manual, remote contact closure and RS485 serial communication
  • Based on field proven iXL range for peace of mind
  • Compact footprint. Designed with size in mind. Seemless integration into analytical instruments and vacuum systems.
  • Maintenance free for up to five years

nXR60i / A90502983 Overview:

Brand new Edwards air cooled nXR60i multi stage rotts dry vacuum pump is designed to deliver aconsistent performance user flexibility in mind. Edwards nXR 60i pump is a high performance and yet compact dry vacuum pump. This new single phase pump nXR line is available with pumping speeds of 300up to 120 m3h: nXR30i, nXR40i, nXR60i, nXR90i and nXR120i. With lower inputpower and zero maintenance the Edwards nXR30i pump brings real high performance and cost benefits across a wide range of applications.

Performance is at the core atributeof nXRi line of dry vacuum pumps.  The intelligent drive enables the system to achieve an enhanced performance plateau from single phase power supply and a consistent worldwide operation. The choice of control options are either manual, simple remote or serial communications.  These may be utilised to provide real control for the system builder.

Edwards nXR60i / A90502983 provides a small footprint with quiet operation making it a convenient and flexible high performing, yet compact, vacuum pump.  The oil-free non-contacting pump mechanism will provide extended operation with maximum up time, up to five year service life, with zero maintenance and no oil to dispose of.

New Edwards nXR60i is the latest addition to the Edwards intelligent pumping line of dry vacuum pumps and is the ideal dry pump for Scientific OEMs, LCMS end users, ICPMS end users and in applications where a consistent performance, control and reliability are essential.



A&J Vacuum Services offers full repair/service of Edwards Dry Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

This item is non-returnable/non-refundable

Edwards nXR60i Dry Multi Stage Roots Pump, 35 cfm, 60 m3/h, 100-127/ 200-240 VAC 50/60 Hz, 1Ph, NW40, A90502983



Edwards nXR60i Technical Data:

Connection Inlet Flange DN 40 ISO-KF (NW40)
Weight 29.60 kg | 65.30 lb
Connection Outlet Flange DN 25 ISO-KF (NW25)
Leak Rate 1.000 × 10⁻⁷ Pa·m³/s
Power Supply Phase 1-Ph
Power Supply Voltage 1Ph 100-127/200-240V 50/60Hz

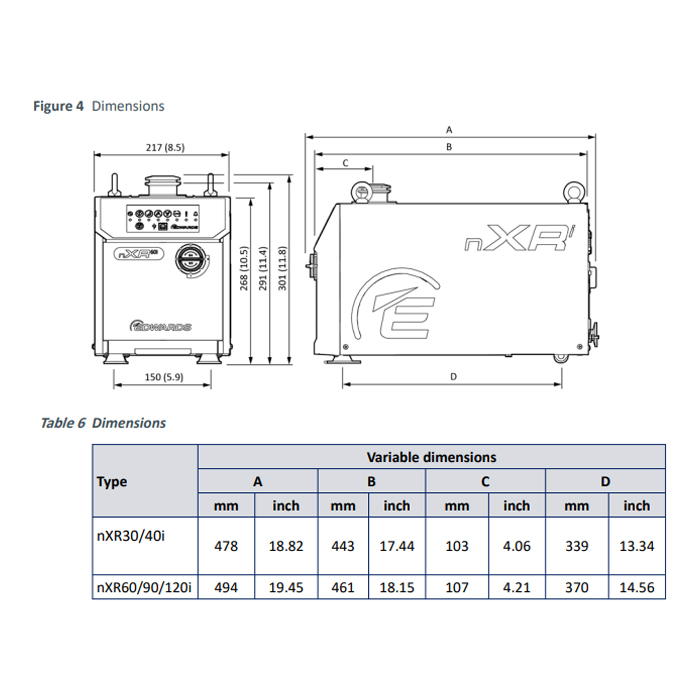

Dimension Length 494.00 mm | 19.45 in
IP Rating IP21
Power Supply Frequency 50 Hz
60 Hz
Dimension Height 301.00 mm | 11.85 in
Dimension Width 217.00 mm | 8.54 in
Connector Electrical Power IEC EN60320 C20 - Male (for C19 plug on mains cable)
Noise / Sound Level 55.00 db(A)
Cooling Method Air Cooling (forced - fan)
Vibration Level Velocity (rms) 2.000 × 10⁻³ m/s
Vibration Level Acceleration 2.000 × 10⁻³ m/s²
Connection Inlet / Outlet Flange DN 40 ISO-KF (NW40) / DN 25 ISO-KF (NW25)
Accessories / Scope of Supply This product does not include the required mains power cable for each specific region. This cable has to be additionally selected from the list of suitable accessories. Check out the gas ballast and filter accessories to operate your product reliably under all application conditions.
Certification Motor UL (61010-1 3rd Edition)
Capacity Water Vapour 8.333 × 10⁻⁵ kg/s
Pressure Ultimate With Gas Ballast 10.00 Pa
Pressure Ultimate 3.00 Pa
Nominal rotational speed 250.00 Hz
Power at Atmosphere Continous 1000.00 W
Power at Ultimate 450.00 W
Pumping Speed Air Nitrogen 0.017 m³/s
Power at Atmosphere Short Term Max 1000.00 W
Pressure Absolute Inlet Continous Max 1.013 × 10⁵ Pa
Altitude Max 2.000 × 10⁶ mm | 78740.16 in
Pressure Absolute Outlet Continous Max 1.200 × 10⁵ Pa
Temperature Ambient Operation Max 40.00 °C | 104.00 °F | 313.15 K
Temperature Ambient Operation Min 5.00 °C | 41.00 °F | 278.15 K
Temperature Ambient Storage Min -30.00 °C | -22.00 °F | 243.15 K
Temperature Ambient Storage Max 70.00 °C | 158.00 °F | 343.15 K
Material Exposed to Vacuum Cast iron, aluminum, Steel, FKM Fluoroelastomer (seals), PFPE lubricant
Classification Product Pressure Range Medium Vacuum: 1 mbar - 1·10⁻³ mbar
Classification High / Medium / Rough Vacuum pump Rough Vacuum Pump
Classification Dry or Wet Pump Dry
Classification Vacuum Pump Technology Multistage Roots Pump
Communication Interfaces Customer RS232 (serial)
RS485 (serial)
Parallel I/O
USB
Connection Electrical Comms Interface Connector DSUB 15-PIN - Male
USB type B - Female
Communication Interface Protocol DX protocol
Connection Accessories Connector Phoenix Contact M8 4-pin connector Female (SACC-DSI-M 8FS-4CON-M12/0.5)
