- Single phase, air cooled and quiet, dB(A) 55
- Pumping Speed of 90 m3/h, 53 cfm
- Inlet Flange NW 40
- Ultimate vacuum (total pressure) mbar <2 x 10-2
Shopping Cart ( )

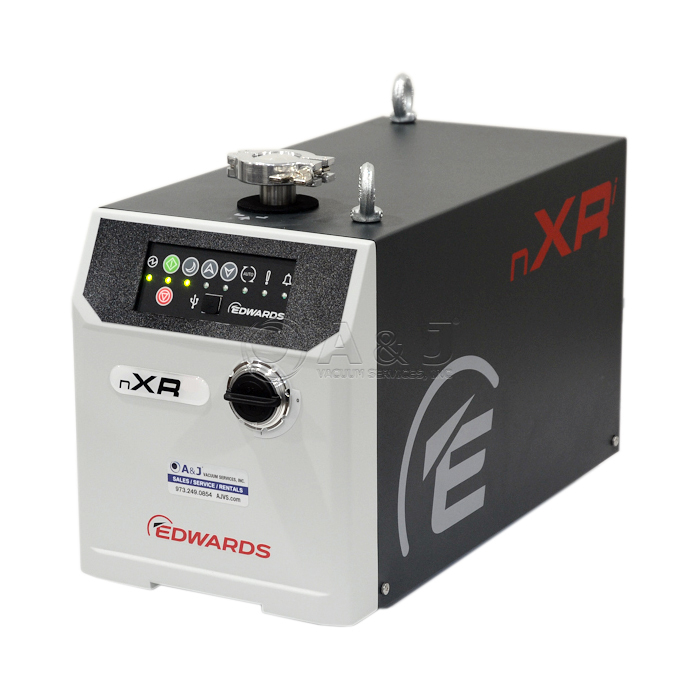

Edwards nXR90i Dry Pump, 53 cfm, 90 m3/h, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90602983, nXR 90i
Condition:
New
Item#:PN24592
Mfr Part#:A90602983
Manufacturer:Edwards Vacuum
Features:
New Edwards nXR90i Dry Pump, 53 cfm, 90 m3/h, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90602983, nXR 90i
Edwards nXR 90i / A90602983 Overview:
Brand new Edwards air cooled nXR90i multi stage rotts dry vacuum pump is designed to deliver aconsistent performance user flexibility in mind. Edwards nXR 90i pump is a high performance and yet compact dry vacuum pump. This new single phase pump nXR line is available with pumping speeds of 30 up to 120 m3h: nXR30i, nXR40i, nXR60i, nXR90i and nXR120i. With lower inputpower and zero maintenance the Edwards nXR30i pump brings real high performance and cost benefits across a wide range of applications.
Edwards nXR 90i / A90602983 Features:
- Single phase, air cooled and quiet
- Pumping Speed of 90 m3/h
- Zero contamination makes the difference. Totally oil free and dust free within the vacuum chamber.
- Flexibility of control – manual, remote contact closure and RS485 serial communication
- Based on field proven iXL range for peace of mind
- Compact footprint. Designed with size in mind. Seemless integration into analytical instruments and vacuum systems.
- Maintenance free for up to five years
Edwards nXR 90i Technology:
Performance is at the core atributeof nXRi line of dry vacuum pumps. The intelligent drive enables the system to achieve an enhanced performance plateau from single phase power supply and a consistent worldwide operation. The choice of control options are either manual, simple remote or serial communications. These may be utilised to provide real control for the system builder.
Edwards nXR90i / A90602983 provides a small footprint with quiet operation making it a convenient and flexible high performing, yet compact, vacuum pump. The oil-free non-contacting pump mechanism will provide extended operation with maximum up time, up to five year service life, with zero maintenance and no oil to dispose of.
New Edwards nXR90i is the latest addition to the Edwards intelligent pumping line of dry vacuum pumps and is the ideal dry pump for Scientific OEMs, LCMS end users, ICPMS end users and in applications where a consistent performance, control and reliability are essential.
Click Here for Edwards nXR30i, nXR40i nXR40i nXR60i nXR90i and nXR120i Manual
A&J Vacuum Services offers full repair/service of Edwards Dry Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
New Edwards nXR90i Dry Pump, 53 cfm, 90 m3/h, Multi Stage Roots Pump, 100-127/ 200-240 VAC 50/60 Hz, A90602983, nXR 90i
Edwards nXR90i / A90602983 Technical Data:
- Single phase, air cooled and quiet
- Pumping Speed of 90 m3/h, 53 cfm
- Inlet Flange NW 40
- Outlet Flange NW 25
- Rotational speed 15000 rpm
- Weight 29 kg (64 lbs)
- Voltage Input: 100-127/200-240 V (+/-10%), switchable
Click Here for Edwards nXR30i, nXR40i nXR40i nXR60i nXR90i and nXR120i Manual
A&J Vacuum Services offers full repair/service of Edwards Dry Vacuum Pumps, along with all other brands offered on our website. AJVS also services Edwards turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Edwards nXR30i nXR40i nXR60i nXR90i nXR120i Instructions manual
Edwards nXR30i nXR40i nXR60i nXR90 nXR120 Dry Pump Data Sheet
Edwards nXRi Dry Pump Presentation Video
Item#:PN07560
Mfr Part#:KF40CLA
Condition: In Stock
New
In Stock
$18.99
Item#:PN07589
Mfr Part#:KF40CRVS
Condition: In Stock
New
In Stock
$14.99
Item#:PN07718
Mfr Part#:KF40FX1000
Condition: In Stock
New
In Stock
$409.99
Item#:PN19715
Mfr Part#:D40001030
Condition: In Stock
New
In Stock
$109.99
Item#:PN24378
Mfr Part#:D1G1021100
Condition: In Stock
New
In Stock
$799.99
Item#:PN24548
Mfr Part#:D39590000
Condition: Out of Stock
New
$1,045.95
Item#:PN24598
Mfr Part#:A50637510
Condition: Out of Stock
New
Price upon request
Item#:PN24599
Mfr Part#:A50637392
Condition: In Stock
New
In Stock
$135.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
