- Inlet flange: DN 40-KF
- Pumping speed (N2): 42 l/s
- Ultimate pressure: < 1 x 10-7 mbar
- XDD1 Dry Diaphragm Backing pump
Shopping Cart ( )

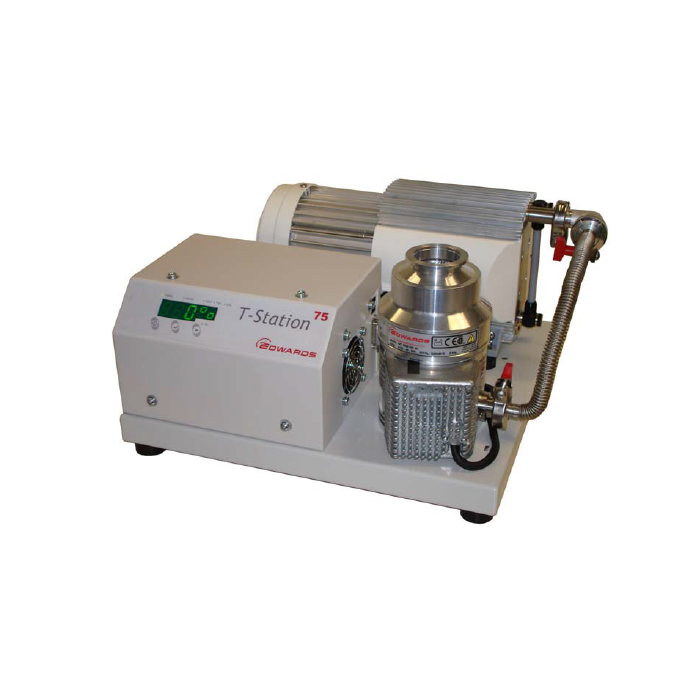

Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 40-KF), XDD1 Vacuum Pump and Turbo Active Gauge, T75 Station115V TS75D1002
Condition:
Discontinued
Item#:PN18713
Mfr Part#:TS75D1002
Manufacturer:Edwards Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Full Service / Repair of T-75 Turbo Stations is available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 40-KF), XDD1 Vacuum Pump and Turbo Active Gauge, T75 Station 115V TS75D1002
Edwards T-Station 75 is Edward's new entry line Turbo pumping system. Package includes EXT75DX with an Oil sealed XDD1 Dry Diaphragm backing pump. Edwards T-Station.
Edwards T-Station 75 Features:
- Compact series of pumping stations for all high vacuum applications
- Air-cooled and ready for operation with EXT75DX Turbo Pump
- DN 40-KF
- Integrated Control Unit
- 115 V AC, 50/60 Hz
Edwards T-Station 75 Applications:
- Analytical
- Leak Detection
- Vacuum process technology
- Research, Development and Scientific
- Particle accelerators
- Electron-beam welding
- Solar Energy
PLEASE NOTE: THIS ITEM HAS BEEN OBSOLETE, REPLACED WITH NEW LINE OF EDWARDS T85, T-STATION 85 TURBO SYSTEM. CLICK HERE TO VIEW IT
Full Service / Repair of T-75 Turbo Stations available at AJVS Service Center. Contact Us to request service estimate.
Edwards T-Station Turbo Pumping T Station, Includes EXT75DX Turbo Pump (DN 40-KF), XDD1 Vacuum Pump and Turbo Active Gauge, T75 Station 115V TS75D1002
Backing Pump: XDD1 Dry Diaphragm backing pump.
Inlet Flange: DN 40-KF
Mains Requirement: 110 V, 50/60 Hz
Pumping Speed Backing Pump at 50 Hz: 1.2 m3/h
Pumping Speed for N2: 42 l/s

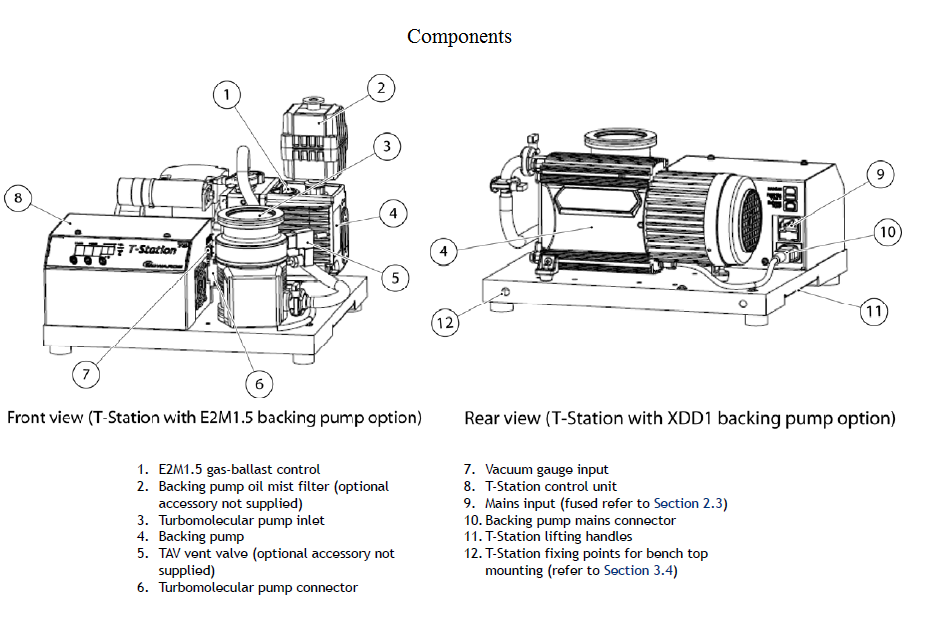

Pumping Station Components: EXT75DX, XDD1, TAG (Turbo and Active Guage)
Ultimate Pressure: < 5 x 10-8 mbar

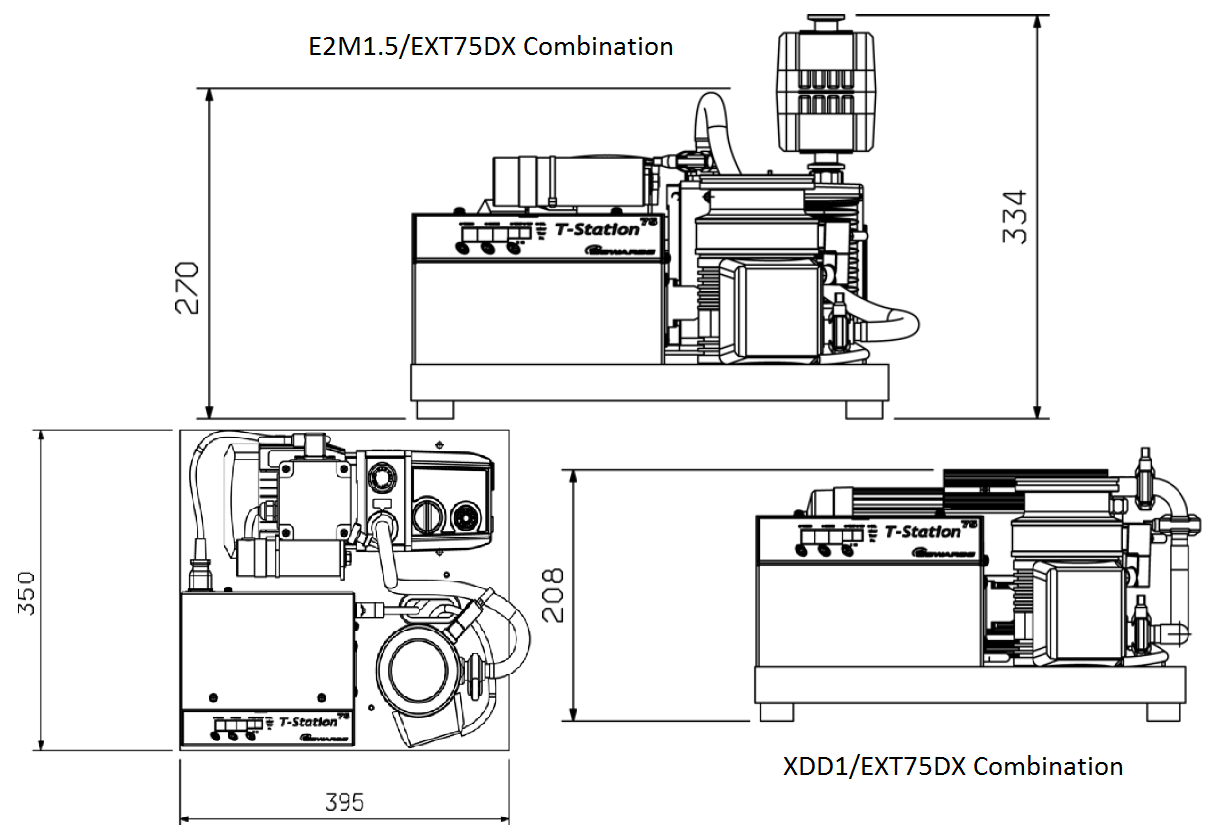

Weight: 17 kg / 40 lbs
Noise Level: 56dB(A)
Edwards XDD1 A74602983_A74602991 Operating Instructions Dry Diaphragm Pump
Edwards T Station D39593880 TS75W1001_TS75W2002_TS75W3002_TS75D1002_TSD75D2002_TS75D3002 - Instruction Manual (4).pdf
Edwards E2m0.7 E2M1.2 Operation Instructions A37141902 A37141919
