- Inlet Flange: DN 25 ISO-KF
- Pumping Speed: 6.1 m3/h , 3.6 cfm
- Noise Level: 55 ± 2.5 dB(A)
- Ultimate Total Pressure: 2.0 x 10‐2 mbar

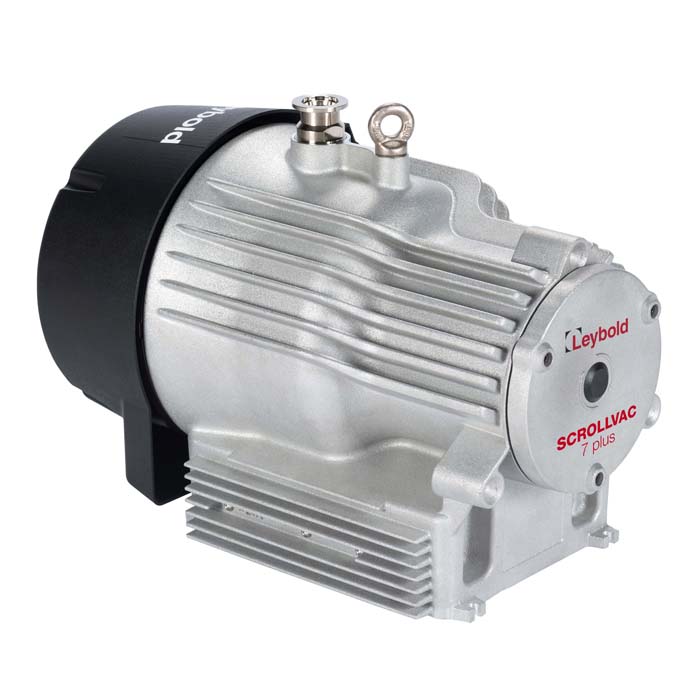

Leybold Scrollvac 7 Plus Oil-Free Dry Scroll Vacuum Pump, 1-phase, 50/60 Hz, 100-127 V, 200-240 V, 6.1 m3/h, 3.6 cfm, 141007V10
Leybold Scrollvac 7 Plus Features:
- Oil-free
- Lightweight design
- Easy maintenance
- Reduced power consumption
- Quiet work environment, < 55 dB(A)
- Simple seal change every 2.5 years
- Universal voltage drive
- Eliminated risk of contamination: pump bearings isolated from vacuum
Scrollvac 7 / 141007V10 Overview:
New Leybold Scrollvac 7 Plus dry vacuum pumps are produced to operate in a broad spectrum of applications - general laboratory, research, General vacuum pumping applications, Mass Spectomerty, Backing turbo pumps, Research and development and many more other vacuum applications. Pumping Speed 6.1 m3/h, 3.6 cfm.
Each of the available ScrollVac pump models (Scrollvac 7 Plus, 10 Plus, 15 Plus, and 18 Plus) consists of two spiral forms - one moves in an orbiting motion relative to the other, fixed spiral which provides the ultimate vacuum performance. This eccentric design allows several crescent-shaped volumes to be generated. During this process, the volumes are driven from the outside to the inside of the spirals resulting in gas compression. ScrollVac 7 is known as very quiet scroll pump.
The Leybold ScrollVac 7 pump may be operated in these modes:
- Manually, using the buttons on the interface panel. Refer to Figures 2 and
13 - Remotely via the 15-pin D-SUB digital I/O connector.
The Leybold ScrollVac can be operated via Logic Interface. The ScrollVac pump controller can be operated via the 15-pin D-SUB digital I/O connector. The signals on the logic interface are of the following types:
- Control inputs: these are switch-type signals that are used to control the
pump - Status outputs: these outputs identify the status of the system.
The Leybold ScrollVac 7 pump can be operated manually using interface panel buttons which includes unique Standby mode that reduces pump speed to 70% of full speed to extend lifetime of the tipseals and liftime of all internal bearings.
Scrollvac7 Plus Applications:
- Radiation
- High magnetic field applications
- Physical research
- Industrial applications: degassing, vacuum ovens, sterilization
- Cyclic duties
- Wet chemistry laboratories
- Pumping of condensable vapors
- Backing pump for turbomolecular and cryopump systems
- Biological laboratories
- Cryogenics
- Curing Epoxy
A&J Vacuum repair / rebuild and service all Leybold Scrollvac Vacuum Pumps (7 Plus 141007V10) along with Leybold Scrollvac 1-Phase Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Scrollvac 7 Plus Oil-Free Dry Scroll Vacuum Pump, 1-phase, 50/60 Hz, 100-127 V, 200-240 V, 6.1 m3/h, 3.6 cfm, 141007V10
Leybold Scrollvac 7 Technical Data:
- Inlet connection: DN 25 ISO-KF
- Outlet connection: DN 25 ISO-KF

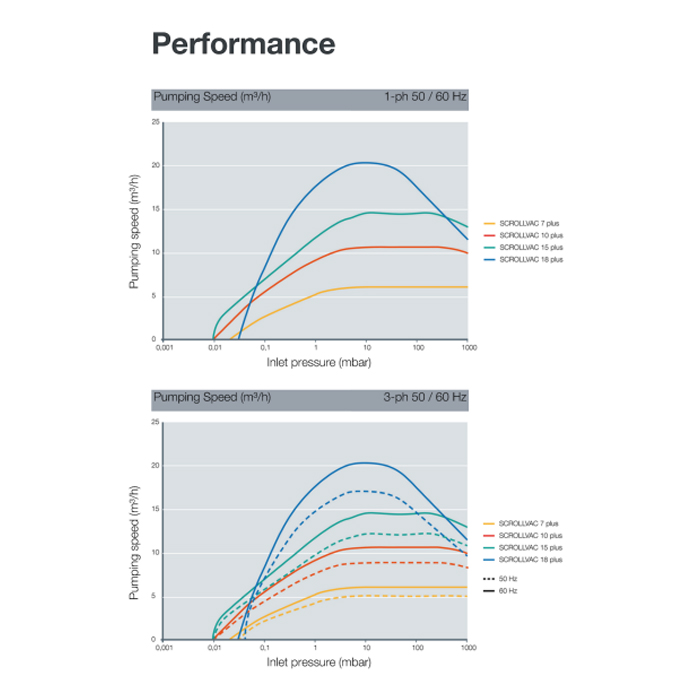

- Pumping speed at 50 Hz: 6.1 m3/h | 3.6 cfm
- Pumping speed at 60 Hz: 6.1 m3/h | 3.6 cfm
- Ultimate total pressure (without gas ballast): 2.0 x 10‐2 mbar | 0.015 Torr
- Ultimate total pressure (with gas ballast): 5.0 x 10‐2 mbar | 0.04 Torr
- Max. water vapor tolerance (with gas ballast): 22 mbar | 16.5 Torr
- Max. water vapor capacity (with gas ballast): 100 g/h
- Noise level acc. to DIN 45 635 without gas ballast: 55 ± 2.5 dB(A)
- Leak rate: 1.0 x 10‐6 mbar l/s
- Mains voltage: 1‐ph, 100‐127, 200‐240 V (+/‐ 10%), 50/60 Hz
- Mains connection: IEC 60320 C20
- Power consumption at ultimate pressure: 260 W
- Rotation speed at 50 Hz: 1650 min‐1 | 1650 rpm
- Rotation speed at 60 Hz: 1650 min‐1 | 1650 rpm
- Protection rating: IP 42
- Admissible ambient temperature: +5 to +40 °C | 41 to 104 F

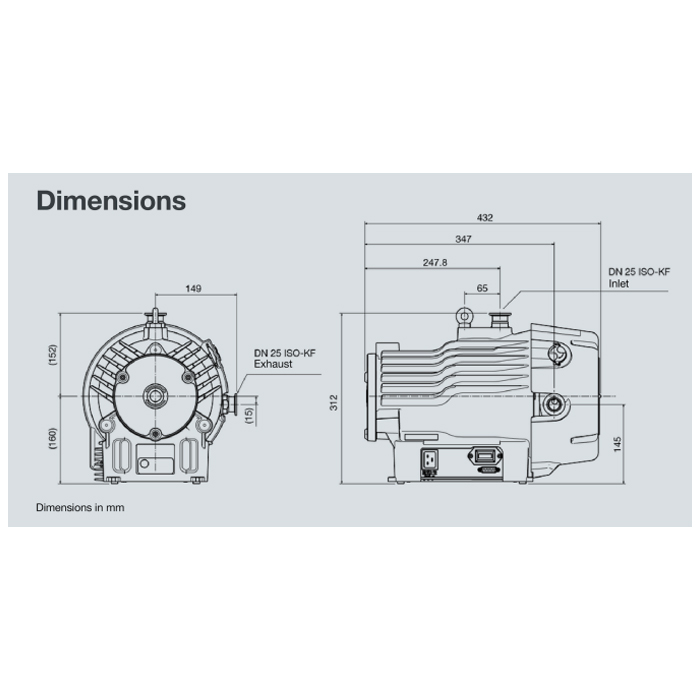

- Dimensions: 430 x 282 x 325 mm | 16.9 x 11.1 x 12.8 inches
- Weight: 27 kg | 59 lbs
A&J Vacuum repair / rebuild and service all Leybold Scrollvac Vacuum Pumps (7 Plus 141007V10) along with Leybold Scrollvac 1-Phase Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold Scrollvac Plus Vacuum Pump Operating Manual
|
