Leybold Chemical Resistance Conversion Kit for Scrollvac 18 Plus Vacuum Pump, 141101A02
Condition:
New
Item#:PN22164
Mfr Part#:141101A02
Manufacturer:Leybold
Features:
Leybold Chemical Resistance Conversion Kit for Scrollvac 18 Plus Vacuum Pump, 141101A02
Leybold Scrollvac Plus Features:
- Oil-free
- Lightweight design
- Easy maintenance
- Reduced power consumption
- Quiet work environment, < 55 dB(A)
- Simple seal change every 2.5 years
- Universal voltage drive
- Eliminated risk of contamination: pump bearings isolated from vacuum
Chemical Resistance Conversion Kit / 141101A02 Overview:

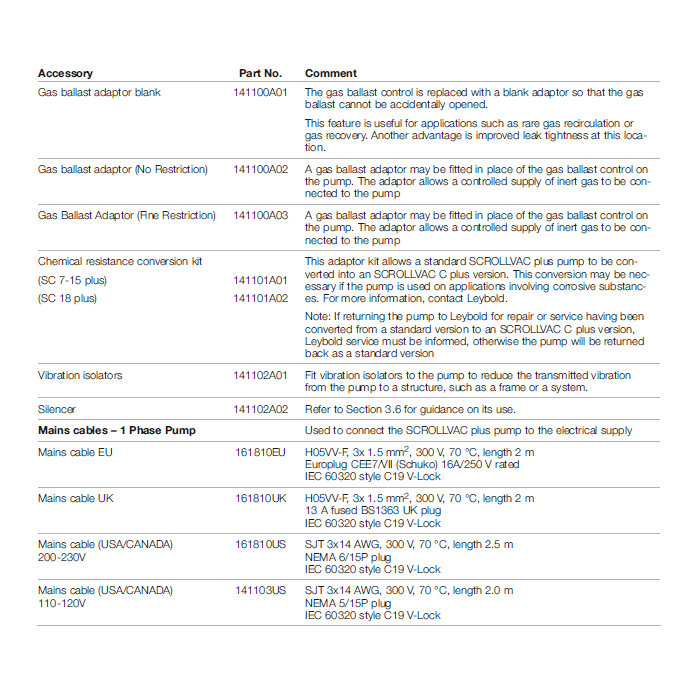

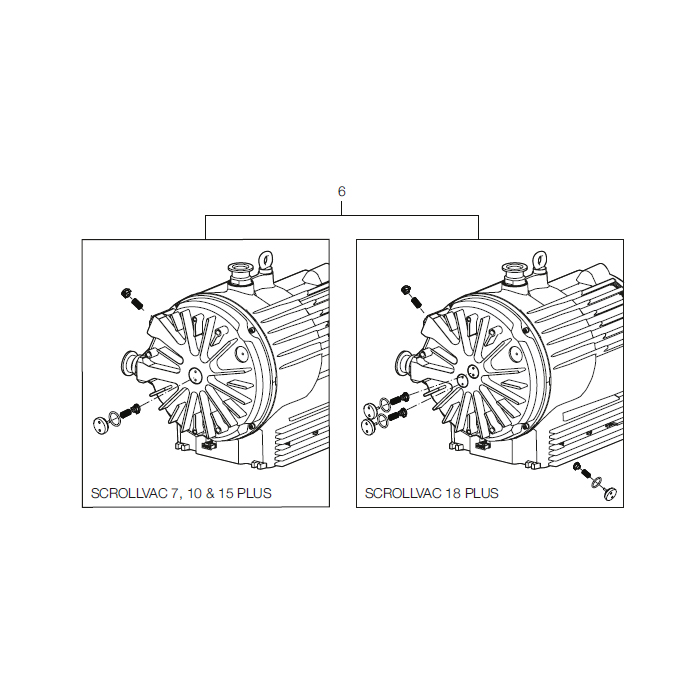

This adaptor kit allows a standard SCROLLVAC plus pump to be converted into an SCROLLVAC C plus version. This conversion may be necessary if the pump is used on application involving corrosive substances.
Supplied equipment: valve pad (4), valve spring (4), 19.6 ID O-ring (2), NW25 stainless steel port (2), NW25 port O-ring (2).
New Leybold Scrollvac dry vacuum pumps are produced to operate in a broad spectrum of applications - general laboratory, general vacuum pumping applications, mass spectomerty, backing turbo pumps, research and development, and many more other vacuum applications.
Scrollvac Applications:
- Radiation
- High magnetic field applications
- Physical research
- Industrial applications: degassing, vacuum ovens, sterilization
- Cyclic duties
- Wet chemistry laboratories
- Pumping of condensable vapors
- Backing pump for turbomolecular and cryopump systems
- Biological laboratories
- Cryogenics
- Curing Epoxy
A&J Vacuum repair / rebuild and service all Leybold Scrollvac 1-Phase & 3-Phase Vacuum Pumps (7 Plus 141007V10, 10 Plus 141010V10 141010V30, 15 Plus 141015V10 141015V30, 18 Plus 141018V10 141018V30) Leybold Scroll Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold Chemical Resistance Conversion Kit for Scrollvac 18 Plus Vacuum Pump, 141101A02
Leybold Scrollvac Plus Features:
- Oil-free
- Lightweight design
- Easy maintenance
- Reduced power consumption
- Quiet work environment, < 55 dB(A)
- Simple seal change every 2.5 years
- Universal voltage drive
- Eliminated risk of contamination: pump bearings isolated from vacuum
Chemical Resistance Conversion Kit / 141101A02 Overview:
This adaptor kit allows a standard SCROLLVAC plus pump to be converted into an SCROLLVAC C plus version. This conversion may be necessary if the pump is used on application involving corrosive substances.
Supplied equipment: valve pad (4), valve spring (4), 19.6 ID O-ring (2), NW25 stainless steel port (2), NW25 port O-ring (2).
New Leybold Scrollvac dry vacuum pumps are produced to operate in a broad spectrum of applications - general laboratory, general vacuum pumping applications, mass spectomerty, backing turbo pumps, research and development, and many more other vacuum applications.
Scrollvac Applications:
- Radiation
- High magnetic field applications
- Physical research
- Industrial applications: degassing, vacuum ovens, sterilization
- Cyclic duties
- Wet chemistry laboratories
- Pumping of condensable vapors
- Backing pump for turbomolecular and cryopump systems
- Biological laboratories
- Cryogenics
- Curing Epoxy
A&J Vacuum repair / rebuild and service all Leybold Scrollvac 1-Phase & 3-Phase Vacuum Pumps (7 Plus 141007V10, 10 Plus 141010V10 141010V30, 15 Plus 141015V10 141015V30, 18 Plus 141018V10 141018V30) Leybold Scroll Vacuum Pumps and other Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
