- Pumping Speed at 50 Hz: 18.9 m3/h
- Pumping Speed at 60 Hz: 22.7 m3/h
- Ultimate Pressure: 1.5 x 10-3 Torr
- Three Phase Motor
Shopping Cart ( )

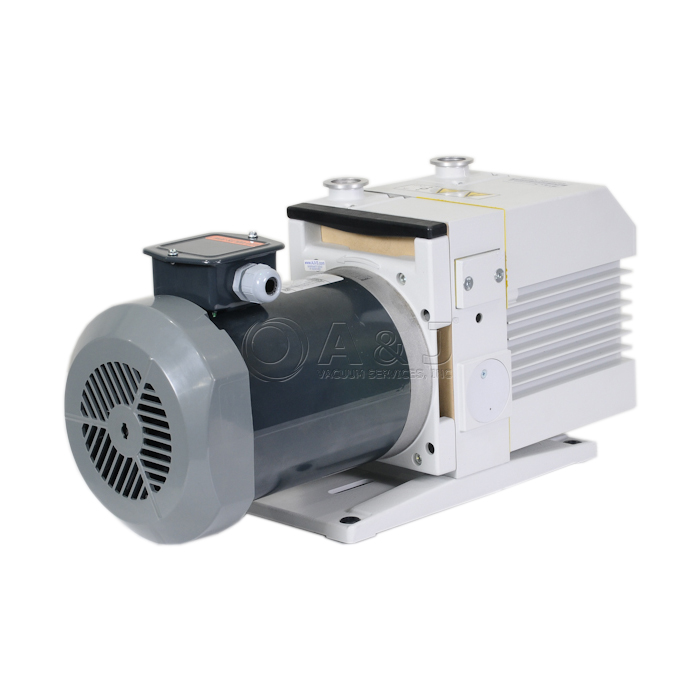

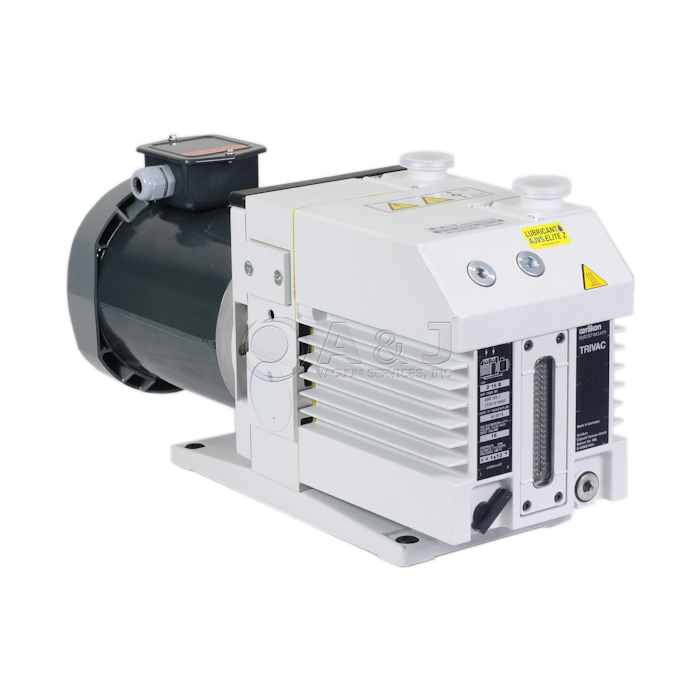

Leybold D16BCS Trivac Vacuum Pump, Three Phase, 200 - 240 V, 380 - 400 V, 50 Hz / 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-2
Condition:
Remanufactured
Call us for Availability
Item#:PN21080
Mfr Part#:91369-2
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold D16BCS Trivac Vacuum Pump, Three Phase, 200 - 240 V, 380 - 400 V, 50 Hz / 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-2
D16BCS Trivac / 91369-2 Overview:
Leybold / Oerlikon Trivac BCS pumps are oil-sealed rotary vane pumps. Trivac B pumps can pump gases and vapors and evacuate vessels or vacuum systems in the fine vacuum range. BCS Series pumps are suitable for pumping greater than atmospheric concentrations of oxygen, hazardous gases, or extremely aggressive or corrosive media.
Additional accesories such as CFS oil filtration system and ARS exhaust filters can be installed uppon request.
The drive motor of the Trivac D16BCS is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.
The LEYBOLD TRIVAC D16BCS vacuum pumps are oil lubricated vacuum pumps. Each Leybold D16B pump 91369-2 is wire wired for low 20-230V 60 Hz Voltage. The Leybold D 16 BCS is a well know pump with excellent reputation for vapor handling capability. The Leybold D16BCS pump has two vacuum stages with low vacuum and high vacuum which provided excelent ultimate vacuum pressure at < 2.0x10-3 mbar or <1.5x10-3 Torr. The Leybold D16BCS is perfectly suitable for many laboratory and research applications such as turbo pump backing pumps, diffusion pump backing pump, vacuum ovens, vacuum pumps for mass spectrometers, vacuum research laboratories, research projects. This Leybold D 16 BCS pump is prepared for Hydrocarbon oil service, best vacuum pump oil to be used is Leybonol LVO 420 / PN20498, The TRIVAC D16 Pump has grate water vapor capacity of 305 g/h.
Leybold D 16 BCD pumps are also very quiet with nise level of 50 db(A) without gass ballast, and 54 db(A) with gass ballast open. Both Inlet and Exhaust ports are DN 25 ISO-KF. The gas ballast valve is opened with position 1 and closed with position 0. These Leybold D16B vane vacuum pumps are available with different motors with other voltage options listed below.
D16BCSTrivac Applications:
- Vacuum Ovens
- Leak detectors and Leak detector systems
- Surface analysis instruments
- Scanning electron microscopes
- Load lock
- Spectroscopy
- University Research Labs
- As a backing pump for turbomolecular pump systems
- Beam welding
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16B vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold D16BCS Trivac Vacuum Pump, Three Phase, 200 - 240 V, 380 - 400 V, 50 Hz / 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-2
Leybold D16BCS Technical Data:
| Nominal pumping speed (50Hz | 60Hz) | 18.9 m3/h (11.1 cfm) | 22.7 m3/h (13.4 cfm) |
| Pumping speed (50Hz | 60Hz) | 16.5 m3/h (9.7 cfm) | 19.8 m3/h (11.7 cfm) |
| Ultimate partial pressure without gas ballast (50Hz | 60Hz) | 10-4 mbar (0.75 x 10-4 Torr) | 10-4 mbar (0.75 x 10-4 Torr) |
| Ultimate total pressure without gas ballast (50Hz | 60Hz) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) |
| Ultimate total pressure with gas ballast (50Hz | 60Hz) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) |
| Water vapor tolerance (50Hz | 60Hz) | 25 mbar (18.8 Torr) | 25 mbar (18.8 Torr) |
| Water vapor capacity (50Hz | 60Hz) | 305 g/h (0.672 lbs/h) | 370 g/h (0.816 lbs/h) |
| Oil filling, min. / max. (50Hz | 60Hz) | 0.45 / 1.2 l (0.5 / 1.1 qt) | 0.45 / 1.2 l (0.5 / 1.1 qt) |
|
Noise level to DIN 45 635, without / with gas ballast (50Hz | 60Hz) |
54 / 56 dB(A) | 54 / 56 dB(A) |
| Admissible ambient temperature (50Hz | 60Hz) | +12 to +40 °C (+54 to +104 °F) | +12 to +40 °C (+54 to +104 °F) |
| Motor rating (50Hz | 60Hz) | 750 W (1.0 HP) | 750 W (1.0 HP) |
| Nominal speed (50Hz | 60Hz) | 1425 rpm | 1730 rpm |
| Type of protection (50Hz | 60Hz) | IP 55 | IP 55 |
| Connections, Intake and Exhaust (50Hz | 60Hz) | 25 KF | 25 KF |
| Weight (50Hz | 60Hz) | 28 kg (61.7 lbs) | 28 kg (61.7 lbs) |
