- Peak Pumping Velocity: 26.8 cfm
- Oil Type: HE200
- Pressure: 1 x 10-3
- Oil Capacity: 3.5 L
Shopping Cart ( )
Leybold D30A Vacuum Pump Dual Stage Rotary Vane, Hydrocarbon, 3 Phase Motor, 40302860
Condition:
Remanufactured
Call us for Availability
Item#:PN06678
Mfr Part#:40302860
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold D30A Vacuum Pump Dual Stage Rotary Vane, Hydrocarbon, 3 Phase Motor, 40302860
D30A Trivac / 40302860 Overview:

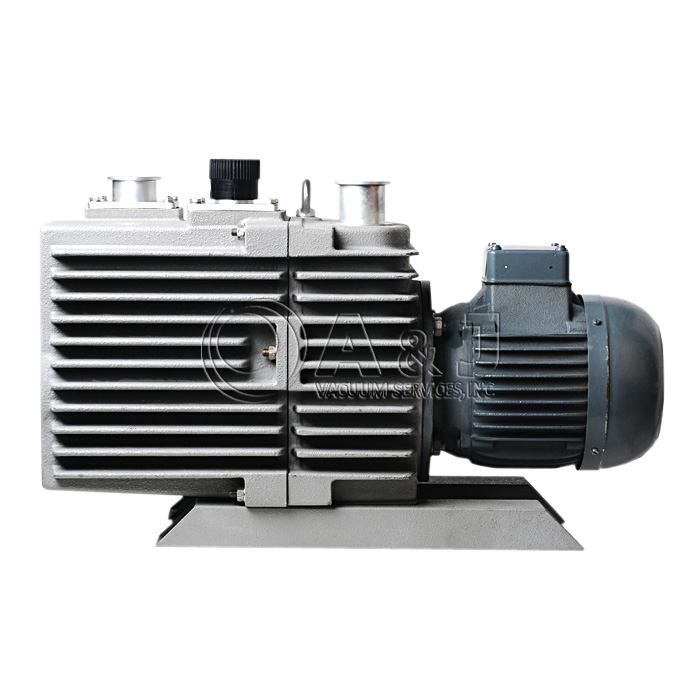

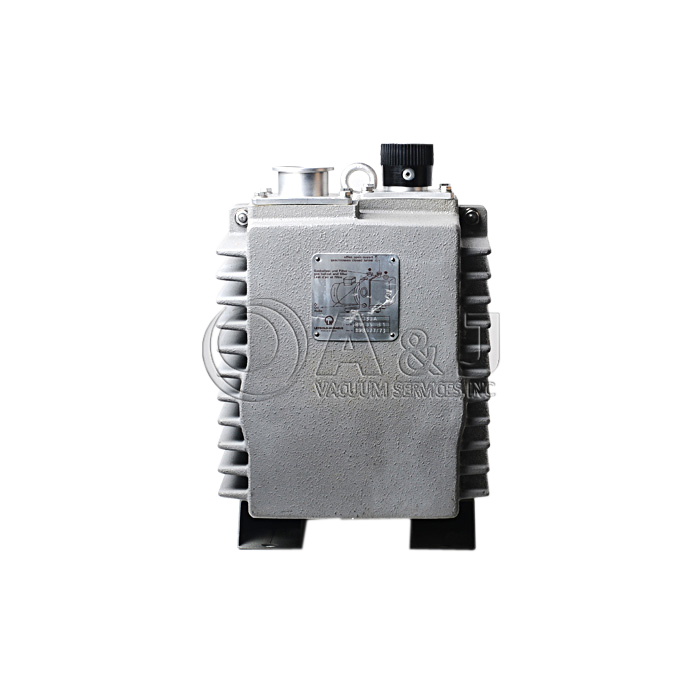

Fully refurbished Leybold / Oerlikon D30A Dual Stage Rotary Vane Pump coupled with a KF40 Inlet Flange and KF40 Outlet Flange. This Leybold / Oerlikon Rotary Vane Pump has a peak pumping velocity of 26.8 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Leybold / Oerlikon D30A Pump comes with an entire 12-Month Warranty.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pumpwiki page for more information.
D30ATrivac Applications:
- Gas analyzers
- Leak detection
- Mass spectrometers
- Other spectrometers
- Electron microscopes
- Surface analyzers
- Centrifuges
- Sterilization
- Electron tubes
- Lamps
- TV tubes (CRT)
- Refrigeration
- Air conditioning
- Drying
- Distillation
- Metallurgy
- Free drying
- CVD.LPCVD
- Ion implantation
- Dry etching
- Load-lock
- Cryogenics
- Gas recovery
- Oxygen pumping
A&J Vacuum repair / rebuild and service all Leybold D30A Vacuum Pumps, Leybold Pumps along with Leybold Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold D30A Vacuum Pump Dual Stage Rotary Vane, Hydrocarbon, 3 Phase Motor, 40302860
Leybold D30A Trivac Technical Data:
| Displacement (CFM) | 26.8 |
| Displacement (liters/minute) | 760 |
| Ultimate partial pressure (Torr) | 3 x 10-4 |
| Ultimate pressure with gas ballast (Torr) | 3 x 10-3 |
| Water vapor tolerance (Torr) | 40 |
| Oil capacity (quarts) | 3.7 maximum 2.75 minimum |
| Motor power (hp) | 1 - 1/2 |
| Pump rotational speed (RPM) | 1725 |
| Weight (kg/lb) | 74 | 163 |
| Sound pressure level (max) at three feet with gas ballast closed (db(A)) | 59 |
| Sound pressure level (ave) at three feet with gas ballast open (db(A)) | 62 |
| Intake tube and exhaust port diameter (mm) | KF40 |
A&J Vacuum repair / rebuild and service all Leybold D30A Vacuum Pumps, Leybold Pumps along with Leybold Vacuum Pumps, Leybold Helium Leak Detectors, along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
