Leybold DISPLAY TWO Dual Channel Vacuum Display Vacuum Gauge 230024
Condition:
New
Item#:PN20251
Mfr Part#:230024
Manufacturer:Leybold
Features:
Leybold DISPLAY TWO Dual Channel Vacuum Display Vacuum Gauge 230024
Leybold Display Two Overview:
The Leybold The DISPLAY TWO serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC and also for DU sensors.
The Leybold The DISPLAY TWO is designed for being installed into a rack according (19", 2 HU)
Applicable Transmitters
THERMOVAC
- TTR90
- TTR90S
- TTR91, TTR91S
- TTR96
- TTR211S
- TTR216S
- TTR100
- TTR100S2
- TTR101
- TTR101S2
PENNINGVAC
- PTR90
DU Sensor
- DU200
- DU201
- DU2000
- DU2001
Typical Leybold Display TWO applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays

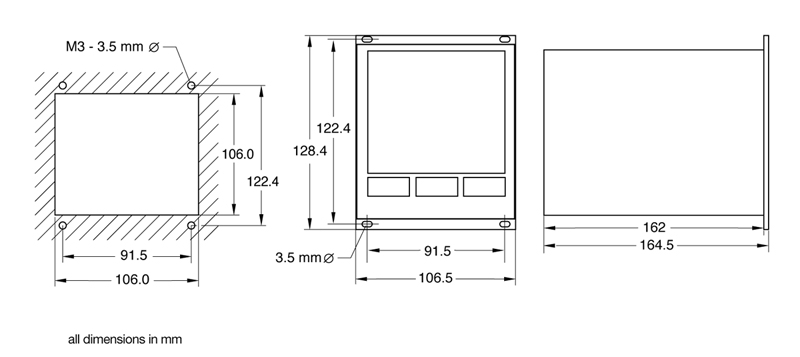

Leybold Display Two Dimensions:
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold Display Two Dual Channel Vacuum Display Vacuum Gauge 230024
Leybold Display Two Technical Data:
| Display range | 1x10-9 mbar |
| Gauge Ports | 2 |
| Weight | 0.5 KG |
| Dimensions: |
Width: 106.0 mm (1/4 19“) |
|
Height: 84.5 mm (2 HE) |
|
|
Depth: 108.0 mm |
|
|
Voltage: |
100…240 V AC |
|
Frequency: |
50/60 Hz |
|
Connection: |
RJ45 (FCC 68) |
| RJ45 | (FCC 68) |
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
