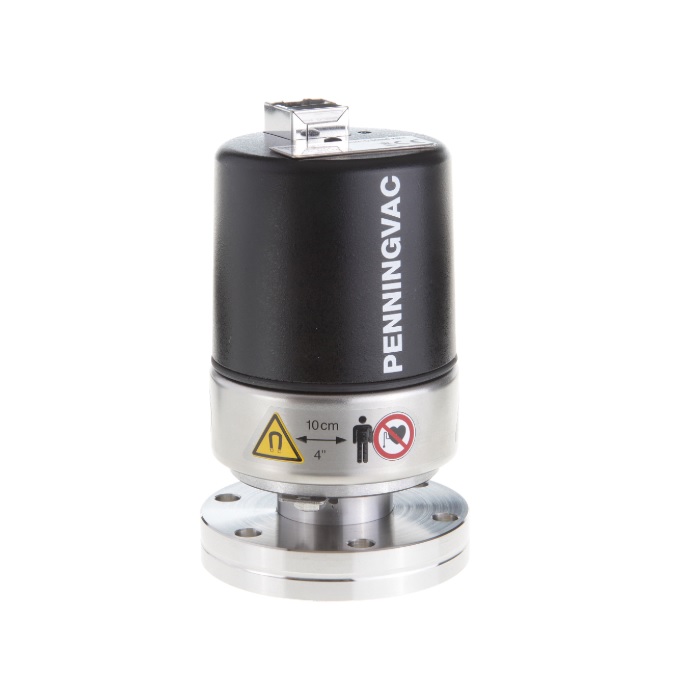

Leybold PTR 90 Penningvac Vacuum Gauge, DN 40 CF-F 230072, PTR90
Leybold PTR 90 / 230072 Penningvac Overview:
The Leybold Penningvac PTR 90 Vacuum Gauge head combines the cold cathode ionization principle with the Pirani measurement system and mey be operated with modern display and operation instruments.
The Leybold PTR 90 transmeters offer the capability of single port pressure measurement in the range from atmosphere to 1x 10-8 mbar - 1000 mbar
The Leybold Penningvac PTR 90 230070 Transmiters are equipped with rugged cold cathode measurement cell for integration within programmable systems. They offer a high level of reproducibility combined with low tendency to collect contamination even in argon operation.
Leybold PTR Technology
Each PTR 90 transmitter is individually tested throughout the measuring range before leaving the factory. A test report is included in the package. In addition, each transmitter pressure reading is individually temperature-compensated within the specified operating temperature range.
The PTR 90 cold cathode ionization vacuum gauges after the inverted magnetron / Penning principle.
- Pirani / cold cathode combination for cost and time-saving measurements across a wide pressure range
- Complete coverage of the measurement range from 5 x 10-9 mbar to atmosphere
- Automatic ignition from the Pirani to the cold cathode
- Modular design for easy serviceability
- Robust cold cathode sensing cell: reliable measurements and high process quality
- Modular design provides low total cost of ownership by easy and inexpensive servicing
- Measurement range from 1 x 10-9 to 1 x 10-2 mbar
Typical Leybold PTR 90 applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
