Leybold GRAPHIX TWO Thermovac Vacuum Gauge Controller 230681V01
Condition:
New
Item#:PN23159
Mfr Part#:230681V01
Manufacturer:Leybold
Features:
Leybold GRAPHIX TWO Thermovac Vacuum Gauge Controller 230681V01
Leybold Graphix Two Overview:
Universal 2 channel display and operating unit with persistent display of all measurement channels, suited for the active sensors of the THERMOVAC, CERAVAC, linear sensors (DU series), PENNINGVAC and IONIVAC series.
Advantages to the User for Leybold Graphix Two:
- Display range from 1 x 10-10 to 2000 mbar
- 3.5" touch screen display with intuitive menu interface

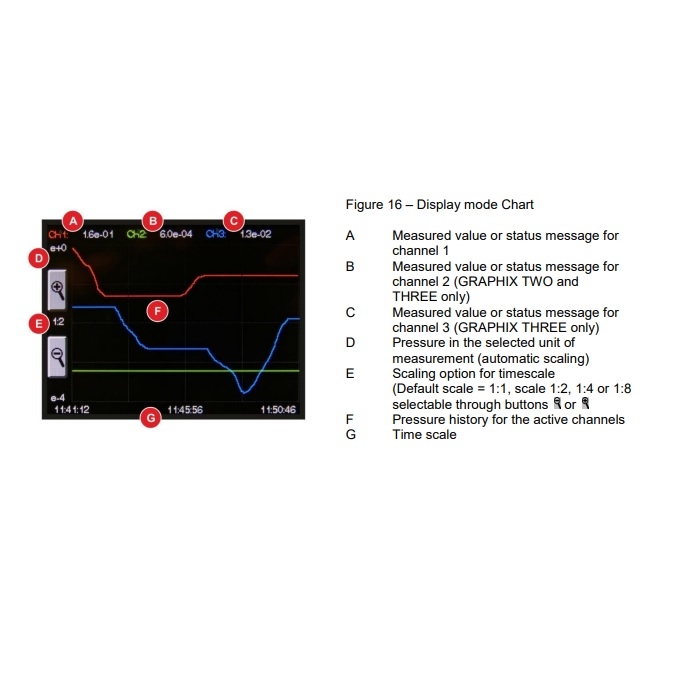

- Graphic display of the measurement data
- Internal and external (front side USB) storing of measurement data and configuration files
- Leak rate indication based on the pressure rise method
- 6 adjustable variable hysteresis switching thresholds, floating changeover contacts and visual indication of the switching status in the display area, freely assignable to the individual measurement channels

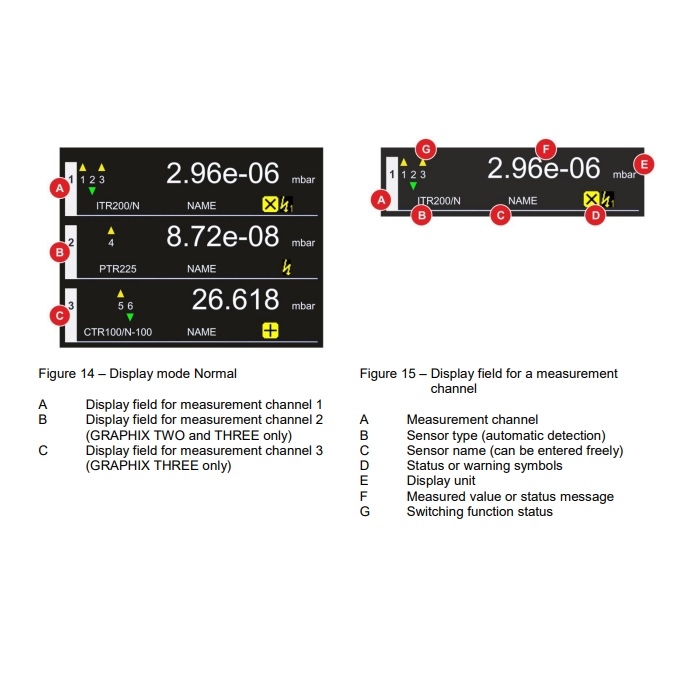

- Different visualisation options (graphs and decimal display with zoom function)
- For connection of all active sensors of other brands
- Degas function for ITR transmitters
- Zero alignment for CTR transmitters
- 3 separate chart recorder outputs 0 to 10 V for each measurement channel (analogue output)
- 4th programmable chart recorder output optional
- RS 232 C / RS 485 C interface with adjustable baud rate
- Relay output for error indication
- Display selectable between mbar, Torr, micron, Pascal or psi
- Compact installation and benchtop enclosure (1/4 19" 3 HU)
- Software update via USB optional
- Languages: English, German, Chinese, Japanese, French; Italian, Spanish, Korean
- Visualisation through LEYASSIST running on a PC
Applicable Transmitters
THERMOVAC
- TTR 211 / TTR 216 S
- TTR 90 / TTR 91 / TTR 91 N
- TTR 96 S / TTR 96 N S
- TTR 100 / TTR 100 S2
- TTR 101 / TTR 101 N / TTR 101 S2 / TTR 101 N 2S
- TTR 911 / TTR 911 N
- TTR 916 / TTR 916 N
CERAVAC
- CTR 90 / CTR 91
- CTR 100 / CTR 100 N
- CTR 101 / CTR 101 N
Linear pressure sensors
- DU 200 / DU 201
- DU 2000 / DU 2001
- DU 2001 rel.
PENNINGVAC
- PTR 90 / PTR 90 N
- PTR 225 / PTR 225 N
- PTR 225 S / PTR 225 N S
- PTR 237 / PTR 237 N
IONIVAC
- ITR 90 / ITR 90 N
- ITR 200 S / ITR 200 N S
- ITR 200 N SL
Other brands
- Active sensors with linear or logarithmic output
Typical Leybold Graphix Two applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays
Leybold Graphix Two Thermovac Controller Dimensions:
Click Here for Graphix Two Operating Manual.pdf
Click Here for Leybold Graphix Two Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold GRAPHIX TWO Thermovac Vacuum Gauge Controller 230681V01
Leybold Graphix Two Display Technical Data:
| Display range: | 10-10 - 2000 mbar |
| Number of measurement channels: | 2 |
| Possible active sensors: | CTR 90/91, CTR 100/101 series DU 200/201, DU2000/2001/2001 rel. Series TTR 90/91/96, TTR 100/101 series TTR 211/216/, TTR 911/916 series PTR 90, PTR 225 series ITR 90/200 series |
| Unit of measurement: | mbar, Torr, Micron, Pascal, Psi |
| Interfaces: | RS 232, RS 485 |
| Relay interface: | 25 pol. Sub-D Buchse |
| Relay load rating: | 1A, 30V AC/30V DC |
| Mains connection: | 100-240V, 50/60Hz |
| Protection class: | IP 20 |
| Dimensions: (W x H x D) | 106,4 x 128,5 x 164,5 mm |
Leybold Graphix Two Thermovac Controller Dimensions:
Click Here for Graphix Two Operating Manual.pdf
Click Here for Leybold Graphix Two Broshure.pdf
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
