- Display range 1x10-9 mbar
- Weight 0.5 KG
- Voltage: 100…240 V AC
- Frequency: 50/60 Hz
Shopping Cart ( )
Leybold DISPLAY THREE Triple Channel Vacuum Display Vacuum Gauge 230025
Condition:
New
Item#:PN20252
Mfr Part#:230025
Manufacturer:Leybold
Features:
Leybold DISPLAY THREE Triple Channel Vacuum Display Vacuum Gauge 230025
Leybold Display Three Overview:
The Leybold The DISPLAY THREE serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC and also for DU sensors.
The Leybold The DISPLAY THREE is designed for being installed into a rack according (19", 2 HU)
Applicable Transmitters
THERMOVAC
- TTR90
- TTR90S
- TTR91, TTR91S
- TTR96
- TTR211S
- TTR216S
- TTR100
- TTR100S2
- TTR101
- TTR101S2
PENNINGVAC
- PTR90
DU Sensor
- DU200
- DU201
- DU2000
- DU2001
Typical Leybold DISPLAY THREE applications
- Mass spectrometer control
- General vacuum pressure measurement
- Gas backfilling measurement and controlling
- System process control .
- Control system pressure
- Sense abnormal pressure and take appropriate security measures using setpoint relays

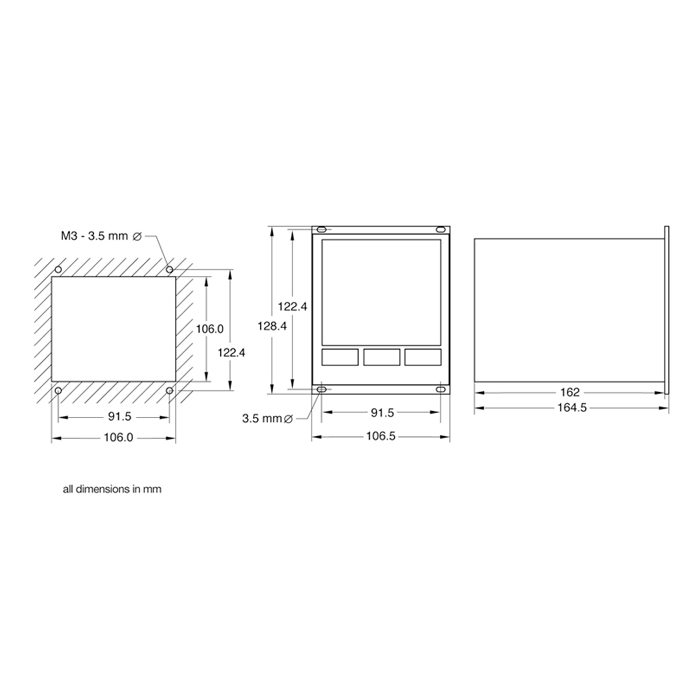

Leybold Display Three Dimensions:
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Leybold DISPLAY THREE Triple Channel Vacuum Display Vacuum Gauge 230025
Leybold Display Three Technical Data:
| Display range | 1x10-9 mbar |
| Gauge Ports | 3 |
| Weight | 0.5 KG |
| Dimensions: |
Width: 106.0 mm (1/4 19“) |
|
Height: 84.5 mm (2 HE) |
|
|
Depth: 108.0 mm |
|
|
Voltage: |
100…240 V AC |
|
Frequency: |
50/60 Hz |
|
Connection: |
RJ45 (FCC 68) |
| RJ45 | (FCC 68) |
Click Here for DISPLAY TWO and THREE Operating Manual.pdf
Click Here for Leybold Vacuum Measurement Active Sensors Broshure
A&J Vacuum services and repairs Leybold Scroll Vacuum Pumps, Leybold Turbo Pump repair along with all other Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
