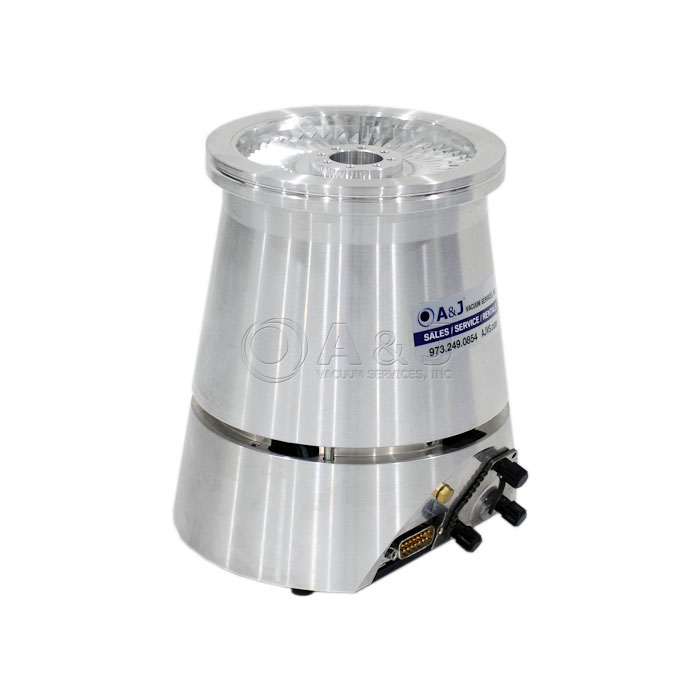

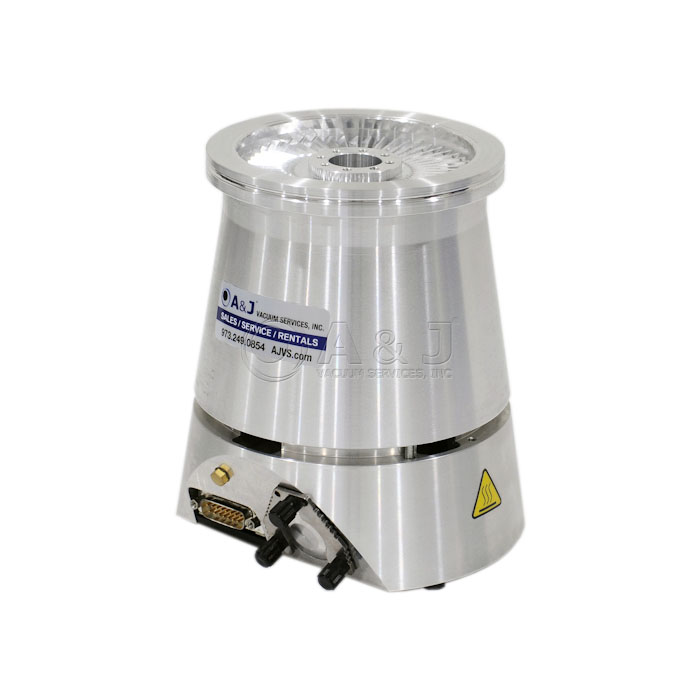

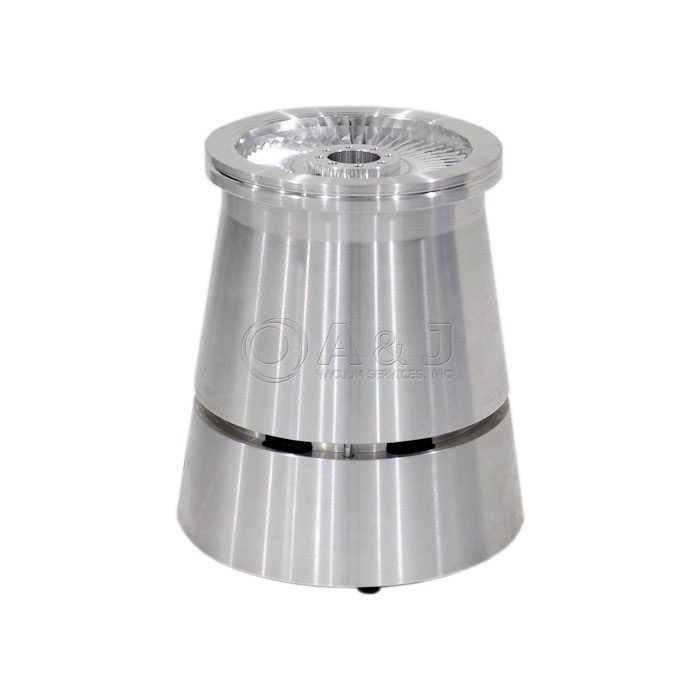

Leybold HY CONE 200 Turbo Pump, DN 100 ISO-K, 86250
Condition:
Remanufactured
Call us for Availability
Item#:PN22232
Mfr Part#:86250
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold HY CONE 200 Turbo Pump, DN 100 ISO-K, 86250
Leybold HY CONE 200 Features:
- Low pressure inside the pump - no danger of ignition
- During Operation the pump can reach temperatures as high as 110ºC
- Suitable for pumping air and clean gases
- KF components can be connected directly to the pump
- Intake Flange with wire mesh protects the pump against mechanical damage
- Threaded hole in the pump has a purpose od a connection point for venting
HY CONE 200 / 86250 Overview:

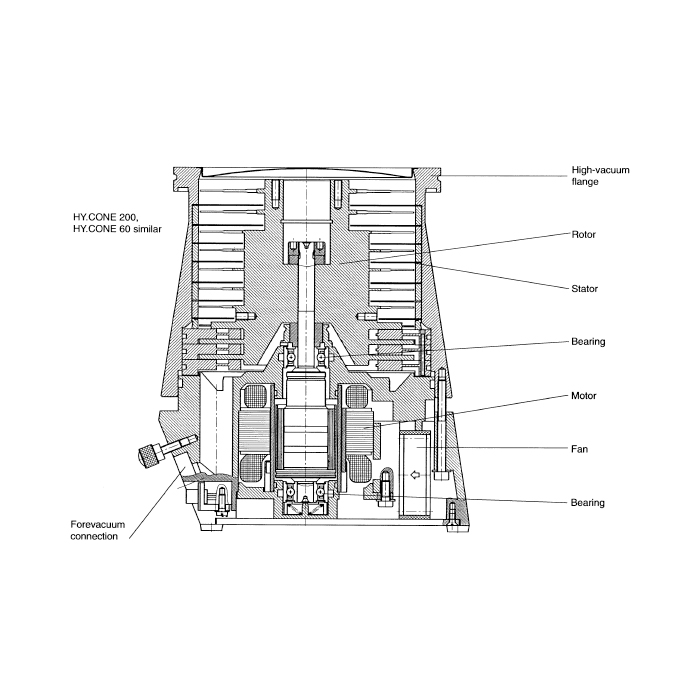

Leybold HY CONE 200 Turbo Pump is designed for pumping air and clean gases. It consists of the pump housing, a multi-stage rotor, stator group, and the drive. The HY CONE 200 is a hybrid pump that features a turbomolecular rotor, split-cage DC motor, and circuit board installed directly in the pump. The circuit board is equipped with a temperature sensor and a memory for critical data storage. Controller, CONE.TROL 200 frequency converter and forevacuum pump are not included with this pump but are required for pump operation. The HY CONE 200 Turbo Pump can be cooled down by the integrated fan, which can be set to run whenever the pump is operating or only when the sensor detects a certain tempreture. Water cooling is also available.
A&J Vacuum repairs / rebuilds and services all Leybold Turbo Pumps, Sogevac Pumps, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold HY CONE 200 Turbo Pump, DN 100 ISO-K, 86250

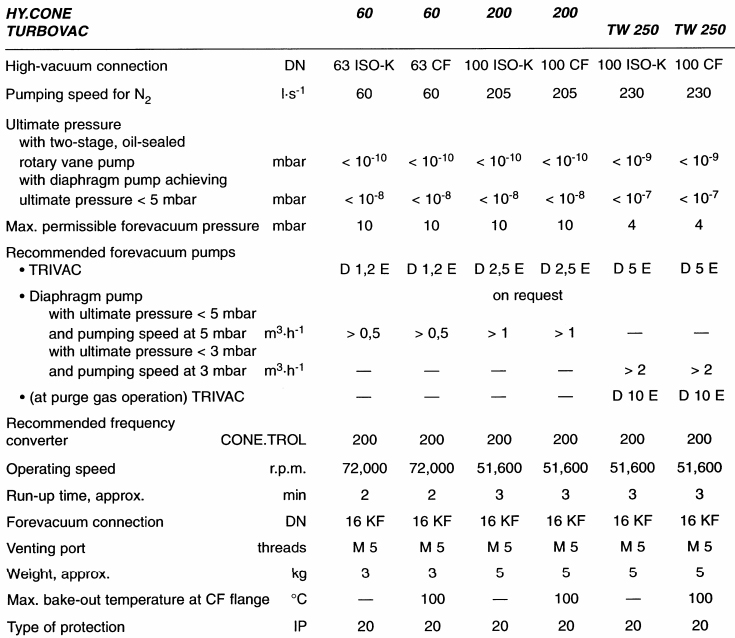

Leybold HY CONE 200 Technical Data:
A&J Vacuum repairs / rebuilds and services all Leybold Turbo Pumps, Sogevac Pumps, Leybold Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN17381
Mfr Part#:APIEZON 501
Condition: In Stock
New
In Stock
$305.00
Item#:PN17557
Mfr Part#:APIEZON M
Condition: In Stock
New
In Stock
$199.95
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
