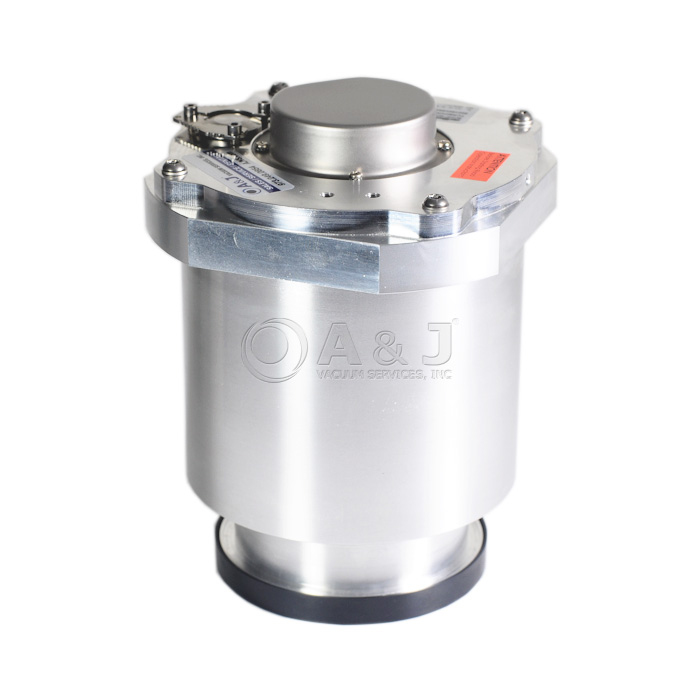

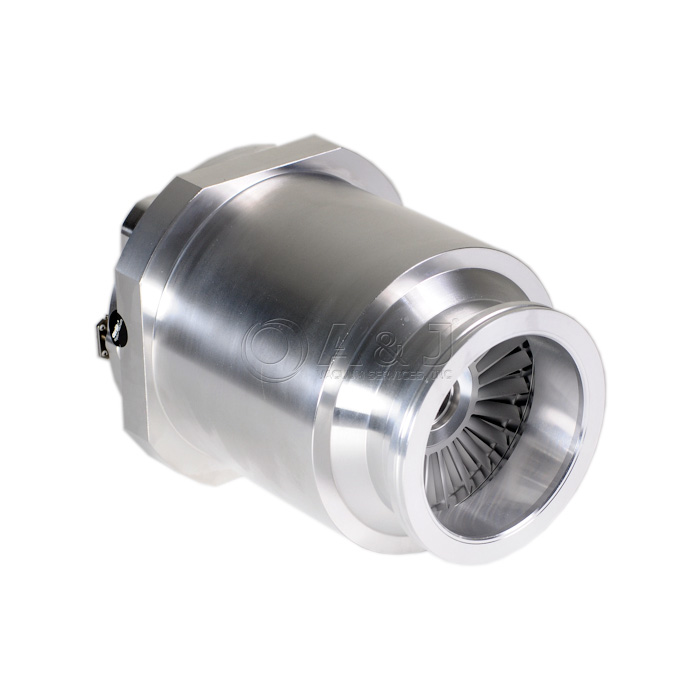

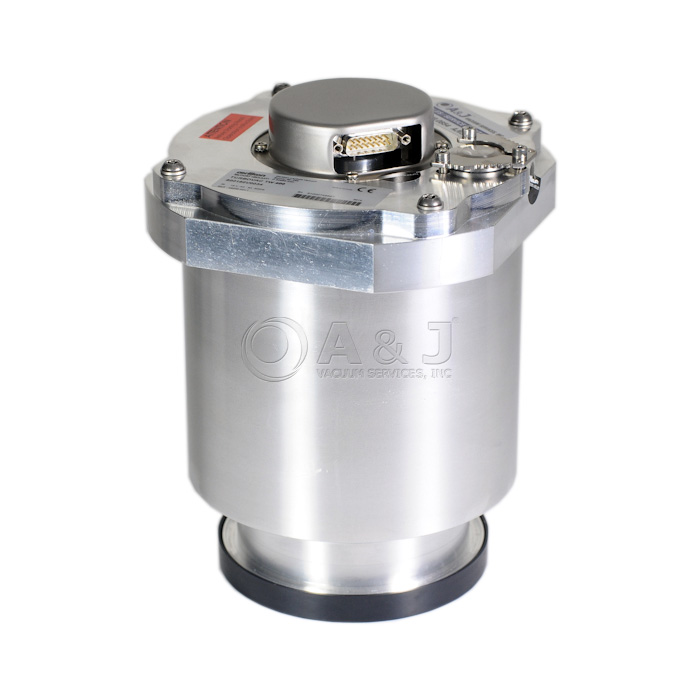

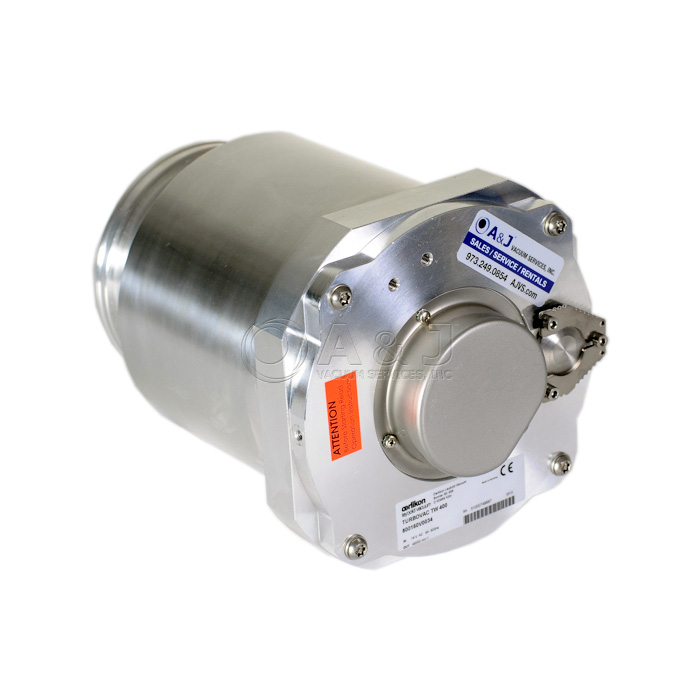

The Oerlikon Turbovac TW 400/300 Turbo Pump is a dual inlet Turbo Pump designed for Mass Spectrometers Instruments to evacuate up to three vacuum chambers. TW 400/300 have a mounting housing and is designed to be integrated into a system.
Oerlikon TW400 Turbo Pumps are suitable for pumping air and clean gases.
The TW 400/300 pump comprises essentially a multi-stage rotor with the stator group, and the drive. The first section of the rotor are two turbomolecular pump stages while the second section represents a Holweck stage.

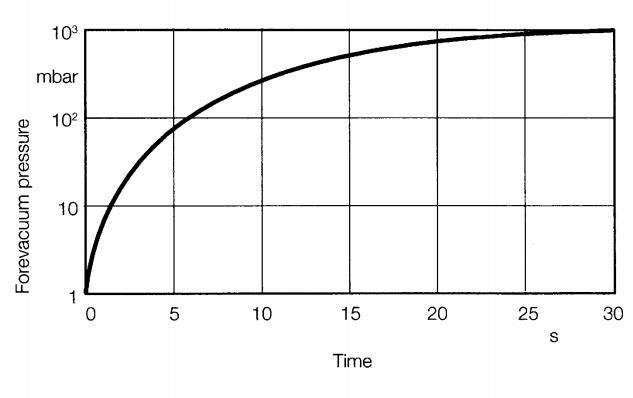

The Holweck pumping stage increases the permissible forevacuum pressure level markedly when compared with the classical turbomolecular pump. The pumps have gas inlets into the turbo stages, the triple-inlet pumps have a third gas inlet into the Holweck stage. The two triple-inlet pumps are very similar, they differ mainly in the Holweck stage and the operating speed.
Click Here for Leybold TW 400 Manual
A&J Vacuum also repair / rebuild and service Oerlikon Turbo TW400 800160V0034 Turbo Pump repair and TW 400/300 Turbo Pumps along with all other Oerlikon Leybold Vacuum Rotary Vane Pumps, Oerlikon Dry Scroll Pump repair, Oerlikon Leybold Leak Detector Repair and all other Leybold Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
