Shopping Cart ( )

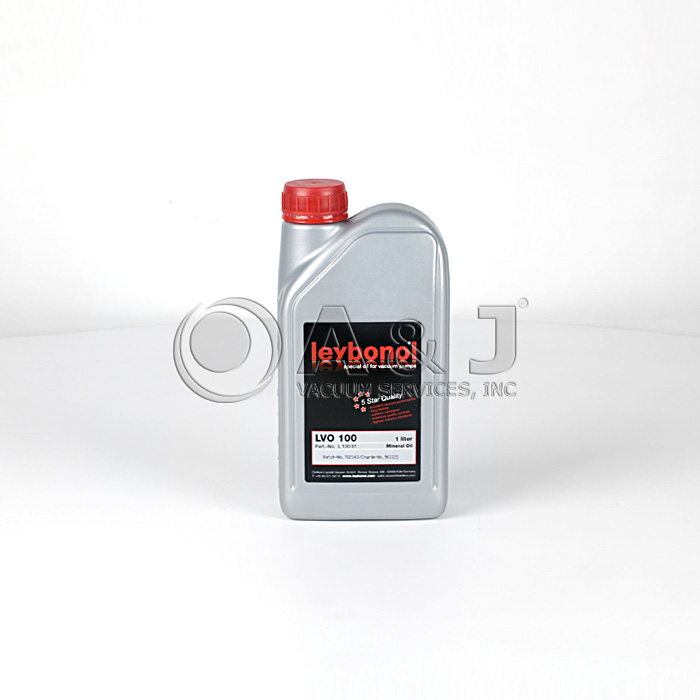

Leybold Leybonol LVO 100 Mineral Oil, 1 Liter, L10001
Condition:
New
In Stock
Item#:PN16787
Mfr Part#:L10001
Manufacturer:Leybold
Features:
Leybold Leybonol LVO 100 Mineral Oil, 1 Liter, L10001
Leybold Leybonol LVO 100 Mineral Oil Features:
- Viscosity:
- 95 mm2/s at 40 °C (104 °F)
- Flash Point: > 255 °C | > 491 °F
- Density at 15 °C (59 °F): 880 kg/m3
- Pour Point: < -9 °C | < +16 °F
Leybonol LVO 100 Mineral Oil / L10001 Overview:
Oerlikon Leybold Leybonol LVO100 mineral oils are products distilled and refined from crude oil. These do not consist of precisely defined compounds but rather consist of a complex mixture. The way in which the mineral oil is pre-treated and its composition is decisive as to the applications it will be suited for.
Depending on the distribution of the hydrocarbons and the dominance of certain properties, mineral oils are grouped according to paraffin-base, naphthenic and aromatic. For the purpose of attaining especially low ultimate pressures, mineral oils must be selected on the basis of a core fraction. The thermal and chemical resistance of mineral oils has been found to be adequate in the majority of applications. They offer a high degree of compatibility with elastomers and resistance to hydrolysis.
This Leybold LVO100 is a direct replacement mineral oil for Leybold HE200 Vacuum pump oil. LVO100 oil is the original Leybold Vacuum Pump oil for large selection of Leybold Vacuum Pumps.
The oil is being used for Leybold TRIVAC, E + DK, and RUVAC systems.
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Vacuum Pumps, Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold Leybonol LVO 100 Mineral Oil, 1 Liter, L10001
Leybold Leybonol LVO 100 Mineral Oil Technical Data:
- Type of oil: Mineral oil, free of additives
- Elastomer compatibility -
- FKM (FPM, Viton): suited
- NBR (Perbunan): conditionally suited
- EDPM: unsuitable
- ISO viscosity grade: ISO VG 100
- Viscosity:
- 95 mm2/s at 40 °C (104 °F)
- Flash Point: > 255 °C | > 491 °F
- Density at 15 °C (59 °F): 880 kg/m3
- Pour Point: < -9 °C | < +16 °F
- Package size: 1 liter
A&J Vacuum repair / rebuild and service all Leybold Oerlikon Vacuum Pumps, Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
