- Pumping Speed (50/60 Hz): 24.0 m3/h | 29.0 m3/h
- Ultimate Pressure w/ GB: ≤ 0.1 mbar | ≤ 0.075 Torr
- Mains Connection: 1‐ph, 240 V, ±10%, 50/60 Hz
- Inlet Connection: DN 25 ISO-KF
Leybold SOGEVAC NEO D 25 Rotary Vane Pump, Single Phase, 240 V, 50/60 Hz, 970200V
Leybold SOGEVAC NEO D 25 Features:
- Clean and quiet
- Long-running performance
- No external exhaust filter required
- Effective pumping speed: 24 / 29 m3/h
- Noise level of 54 dB(A)
SOGEVAC NEO D 25 / 970200V Overview:
The SOGEVAC NEO D is designed for continuous operation at any inlet pressure and maintains the same robust industrial build as the rest of the SOGEVAC series. This latest generation of rotary vane vacuum pumps is well-suited for all dual-stage pumping applications.
The new SOGEVAC NEO D combines multiple advantages, but above all it stands out for being cleaner, quieter, and virtually maintenance-free. It is equipped with a high-quality exhaust filter integrated into the oil casing and is optimized for maximum uptime with long-life hydrocarbon oils.
SOGEVAC NEOD25 Applications:
- Analytics
- Glove boxes
- Sterilization
- R&D
- Heat treatment & plasma processes
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC NEO vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SOGEVAC NEO D 25 Rotary Vane Pump, Single Phase, 240 V, 50/60 Hz, 970200V
Leybold SOGEVAC NEO D 25 Technical Data:
- Inlet connection: DN 25 ISO-KF
- Outlet connection: DN 25 ISO-KF
- Nominal pumping speed at 50 Hz: 28.0 m3/h | 16.48 cfm
- Nominal pumping speed at 60 Hz: 34.0 m3/h | 20.01 cfm
- Pumping speed at 50 Hz: 24.0 m3/h | 14.13 cfm
- Pumping speed at 60 Hz: 29.0 m3/h | 17.07 cfm
- Ultimate partial pressure without gas ballast: ≤ 0.008 mbar | ≤ 0.006 Torr
- Ultimate total pressure with gas ballast: ≤ 0.1 mbar | ≤ 0.075 Torr
- Water vapor tolerance at 50 Hz: 10.0 mbar | 7.5 Torr
- Water vapor tolerance at 60 Hz: 10.0 mbar | 7.5 Torr
- Operating fluid: LVO 700
- Operating fluid capacity: 1.5 l | 1.32 qt
- Noise level to DIN 45 635 -
- Without gas ballast: 54 dB(A)
- With gas ballast: N/A
- Mains connection: 1‐ph, 240 V, ±10%, 50/60 Hz
- Motor rating at 50 Hz: 900 W | 1,22 HP
- Motor rating at 60 Hz: 1100 W | 1,49 HP
- Rotation speed at 50 Hz: 1460 min-1 | 1460 rpm
- Rotation speed at 60 Hz: 1730 min-1 | 1730 rpm
- Motor protection rating: IP 40
- Admissible ambient temperature: +12 to +40 °C | +54 to +104 °F

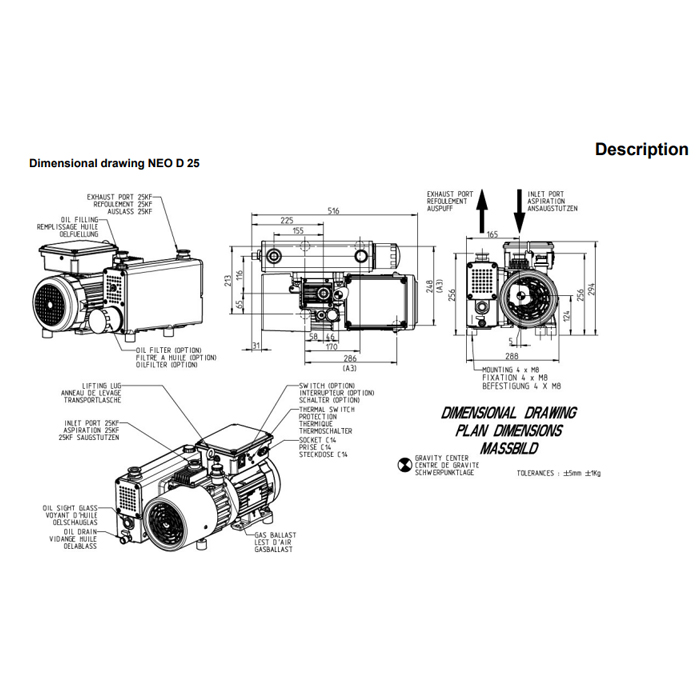

- Dimensions L x W x H: 518 x 288 x 294 mm | 20 x 11 x 12 in
- Weight: 50 kg | 110 lb
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC NEO vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Leybold SOGEVAC NEO D Brochure
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
