- Pumping Speed (50/60 Hz): 74 m3/h | 89 m3/h
- Ultimate Pressure w/ GB: < 1 x 10-1
- Water Vapor Tolerance: 10 mbar
- Noise Level: 57 dB(A)
Shopping Cart ( )
Leybold SOGEVAC NEO D 65 Rotary Vane Pump, Three Phase, 180 - 264 / 342 - 506 V, 50/60 Hz, 970402V
Condition:
New
Item#:PN57868
Mfr Part#:970402V
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold SOGEVAC NEO D 65 Rotary Vane Pump, Three Phase, 180 - 264 / 342 - 506 V, 50/60 Hz, 970402V
Leybold SOGEVAC NEO D 65 Features:
- Clean and quiet
- Long-running performance
- No external exhaust filter required
- Effective pumping speed: 63 / 76 m3/h
- Noise level of 57 dB(A)
SOGEVAC NEO D 65 / 970402V Overview:
The SOGEVAC NEO D is designed for continuous operation at any inlet pressure and maintains the same robust industrial build as the rest of the SOGEVAC series. This latest generation of rotary vane vacuum pumps is well-suited for all dual-stage pumping applications.
The new SOGEVAC NEO D combines multiple advantages, but above all it stands out for being cleaner, quieter, and virtually maintenance-free. It is equipped with a high-quality exhaust filter integrated into the oil casing and is optimized for maximum uptime with long-life hydrocarbon oils.
SOGEVAC NEOD65 Applications:
- Analytics
- Glove boxes
- Sterilization
- R&D
- Heat treatment & plasma processes
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC NEO vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold SOGEVAC NEO D 65 Rotary Vane Pump, Three Phase, 180 - 264 / 342 - 506 V, 50/60 Hz, 970402V
Leybold SOGEVAC NEO D 65 Technical Data:
- Frequency: 50/60 Hz

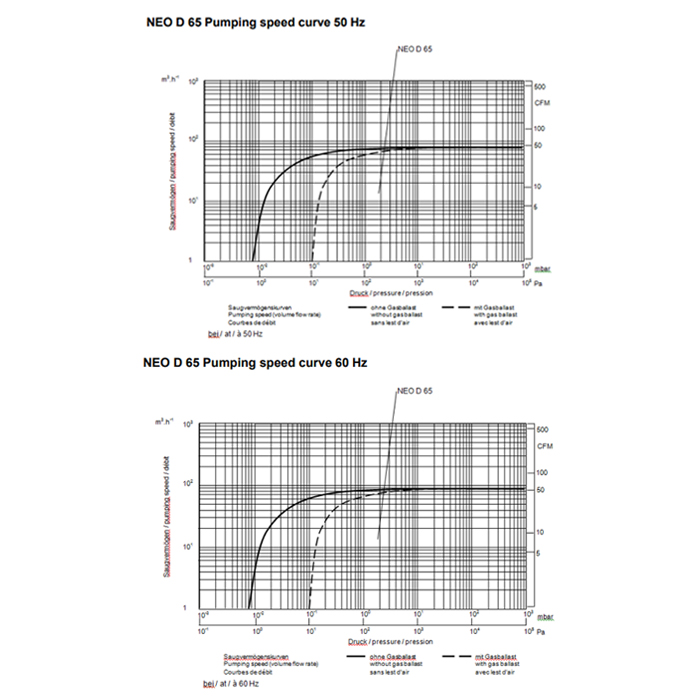

- Rated pumping speed: 74 m3/h | 89 m3/h
- Effective pumping speed: 63 m3/h | 76 m3/h
- Ultimate pressure without GB: < 8 x 10-3 mbar
- Ultimate pressure with GB: < 1 x 10-1 mbar
- Water vapor tolerance: 10 mbar
- Motor power -
- 3-phase motor: 2.0 kW | 2.6 kW
- 1-phase motor: - | -
- Frequency converter: 2.0 kW | 2.6 kW
- Noise level: 57 dB(A)
- Oil volume: 3 l
- Flanges: 40 KF
- Weight: 96 kg | 212 lb

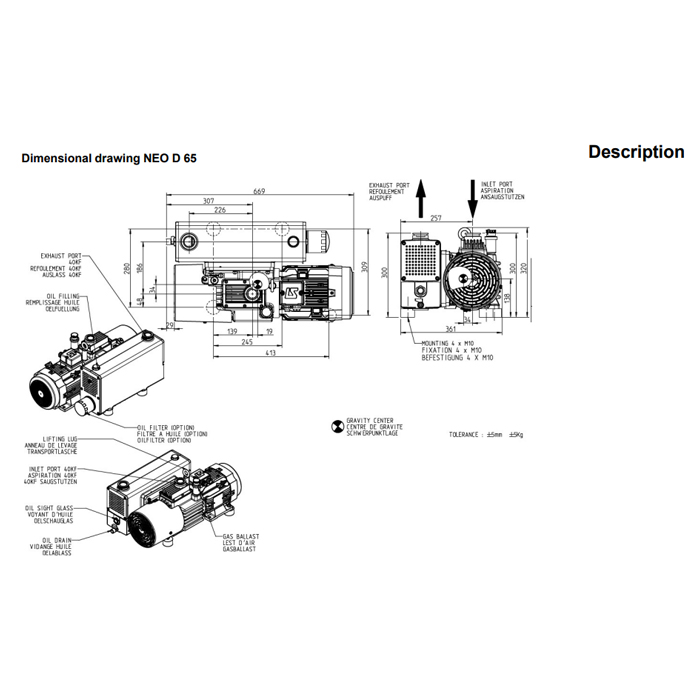

- Dimensions L x W x H: 669 x 359 x 320 mm | 26 x 14 x 13 in
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC NEO vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN57800
Mfr Part#:EK96004
Condition: Out of Stock
New
$59.99
Item#:PN57861
Mfr Part#:9700LS
Condition: Out of Stock
New
Price upon request
Item#:PN57862
Mfr Part#:971471210
Condition: Out of Stock
New
Price upon request
Item#:PN57863
Mfr Part#:95193
Condition: Out of Stock
New
Price upon request
Item#:PN57865
Mfr Part#:9700TS
Condition: Out of Stock
New
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
