- Fully Refurbished
- Inlet Flange: DN 160 ISO-K
- Outlet Flange: DN 25 KF

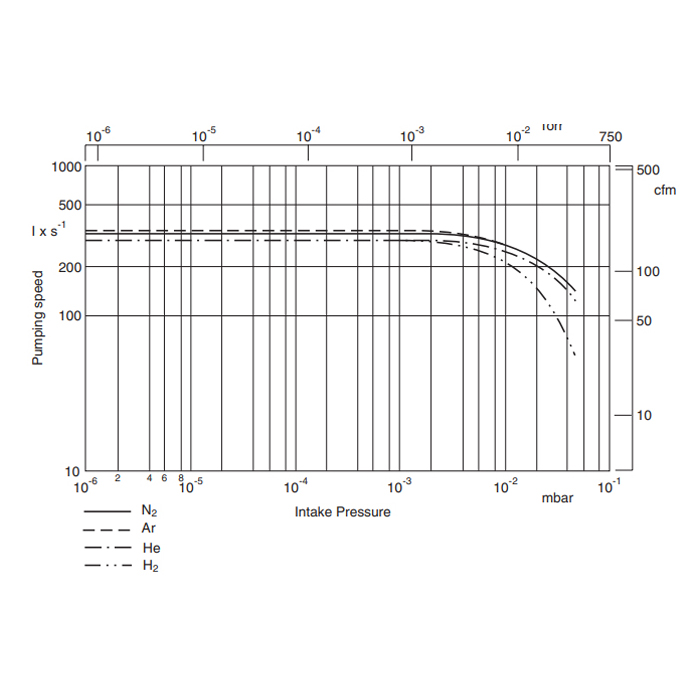

- Pumping Speed N2 345 l/sec
Shopping Cart ( )
Leybold TMP361 Turbovac Turbo Pump, DN-160 ISO-K, 85672
Condition:
Remanufactured
Call us for Availability
Item#:PN22595
Mfr Part#:85672
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold TMP361 Turbovac Turbo Pump, DN-160 ISO-K, 85672
Leybold TMP361 Turbovac Features:
- Compact design
- Operation in any orientation
- Oil-free pump for generating clean
- high and ultrahigh vacuum conditions
- Space Saving
- Low operating cost
- Highly relayable operation
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- Load locks and transfer chambers
TMP361 Turbovac / 85672 Overview:
The TURBOVAC model 361 is a turbomolecular pump featuring grease-lubricated bearings. This unit is engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These units are not suitable for operation without a forevacuum pump.
The turbomolecular pumps from Oerlikon Leybold Vacuum generate a clean high and ultra-high vacuum, are easy to operate and are exceptionally reliable. In connection with a well rated backing pump, pressures below 10-10 mbar (0.75 x 10-10 Torr) can be attained.
Oerlikon Leybold Vacuum offers two product lines:
- TURBOVAC line Turbomolecular pumps with mechanical rotor suspension
- TURBOVAC MAG line Turbomolecular pumps with magnetic rotor suspension
Each of the two product lines contains “classic” turbomolecular pumps as well as turbomolecular pumps with a compound stage. Oerlikon Leybold Vacuum is one of the world’s leading manufacturer of turbomolecular pumps.
Consequently, the TURBOVAC and the TURBOVAC MAG pumps are successfully used in many applications. A list of the most important ones is given in the table “Applications” in the section “General.”
TMP361 Turbovac Applications:
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D, e.g.
- UHV systems
- Particle accelerators
- Load locks and transfer chambers
AJVS.com service and repair all Leybold Turbo Pumping Stations, Leybold TMP 361 Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold TMP361 Turbovac Turbo Pump, DN-160 ISO-K, 85672

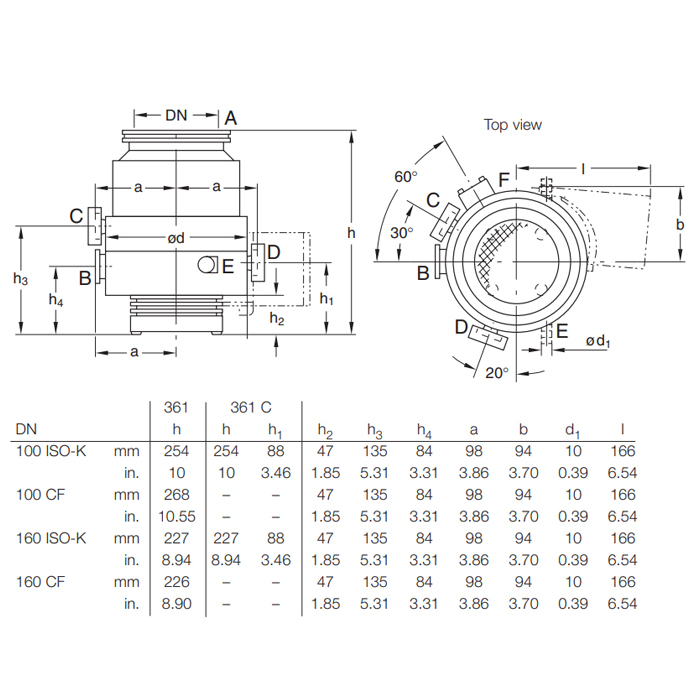

Leybold TMP361 Turbovac Technical Data:
AJVS.com service and repair all Leybold Turbo Pumping Stations, Leybold TMP 361 Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN07149
Mfr Part#:800152V0016, 89408
Condition: Ships Within 1-3 Days
New
$530.00
Item#:PN07150
Mfr Part#:85531
Condition: Out of Stock
New
$530.45
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
