Found 3 products
Item#: PN00206 Mfr Part#: 85401 Manufacturer: Leybold
PRICE: $6,740.00
WEB SAVINGS: $3,090.00
YOU PAY: $3,650.00

Fully Remanufactured Leybold TMP50 Turbo Pump, ISO 63, 85401, Turbovac 50, New P/N 800150V0010



Leybold TurboVac TMP 50 Overview:


The Leybold TURBOVAC TMP50 P/N 85401 turbomolecular pumps featuring grease-lubricated bearings. These units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK NT 10 frequency converter and a forevacuum pump are required for the operation of the TURBOVAC TMP-50

These Leybold TMP 50 Turbo Pumps are not suitable for operation without a forevacuum pump.

Leybold TMP50 Turbomolecular pumps are not suitable for pumping either gases which contain dust particles or liquids.

Turbovac 50Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are not suitable for pumping aggressive or reactive gases.

Leybold TURBOVAC TMP 50 versions identified with a “C” in the model number are equipped with this purge gas feature, it protects only the bearing area and the motor in the TURBOVAC.

Some media (such as aluminum trichloride) can sublime inside the pump and form deposits. Thick deposits reduce the play between moving parts to the point that the pump could seize. In some processes deposits can be prevented by heating the pump. Please consult with us in case such problems arise.

Corrosive gases (such as chlorine) can destroy the rotors.

During operation the pressure inside the TURBOVAC TMP50 turbo pump is so low that there is no danger of ignition (at pressures below about 100 mbar, 75 Torr). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 100 mbar (75 Torr). During operation the pump can reach temperatures as high as 120°C (248 °F). Sparks could occur in case of damage to the pump and these could ignite explosive mixtures.



Leybold TurboVac TMP 50 Pumping speed:


Leybold Turbovac TMP 50 Pumping Speed, 85401



Leybold TurboVac TMP 50 Dimensions:


Leybold Turbovac TMP 50 Dimensions, 85401


A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 50 Turbo  Vacuum  Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold  Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN07836 Mfr Part#: 85402 Manufacturer: Leybold
PRICE: $3,950.00
WEB SAVINGS: $600.00
YOU PAY: $3,350.00

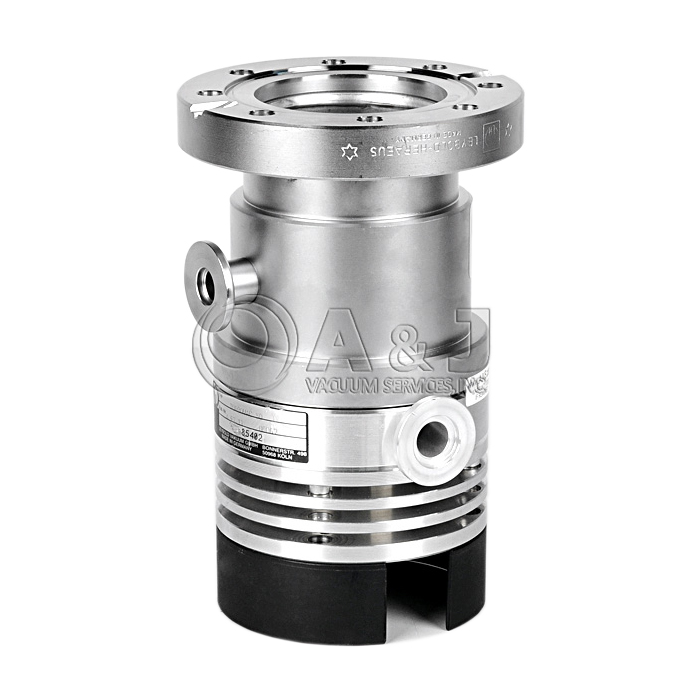

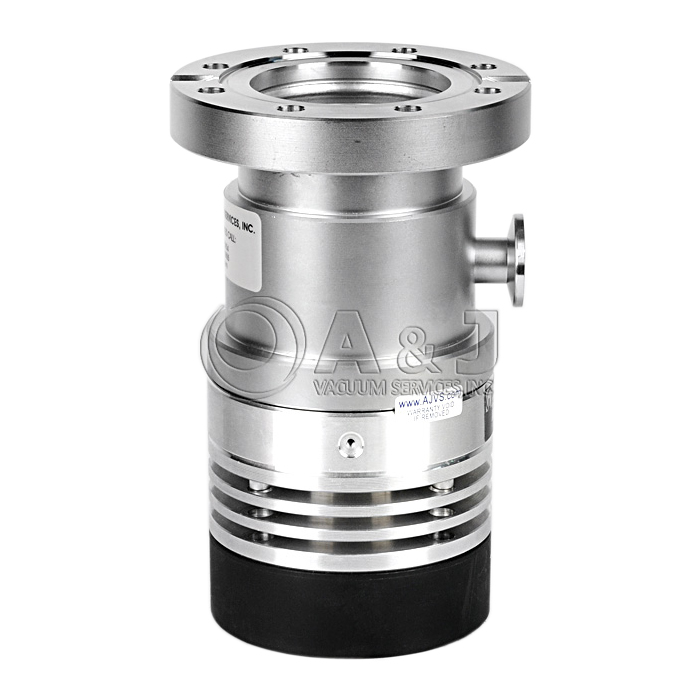

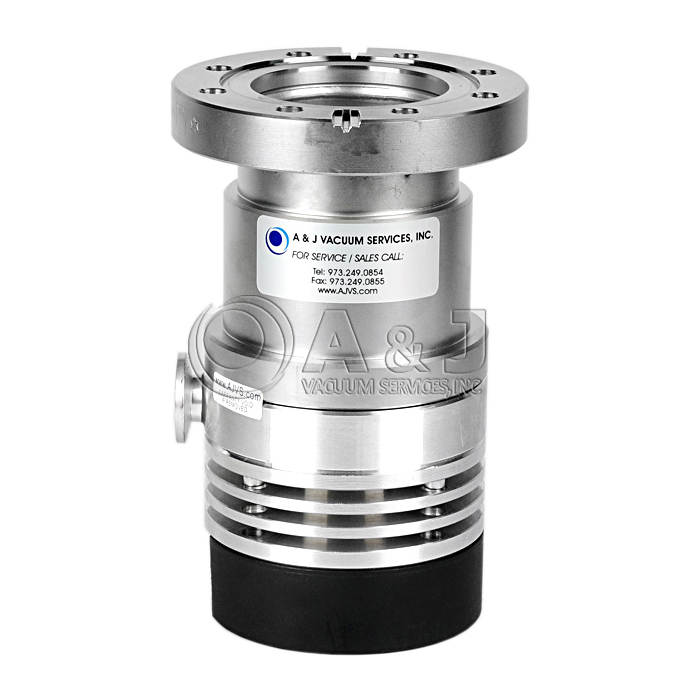

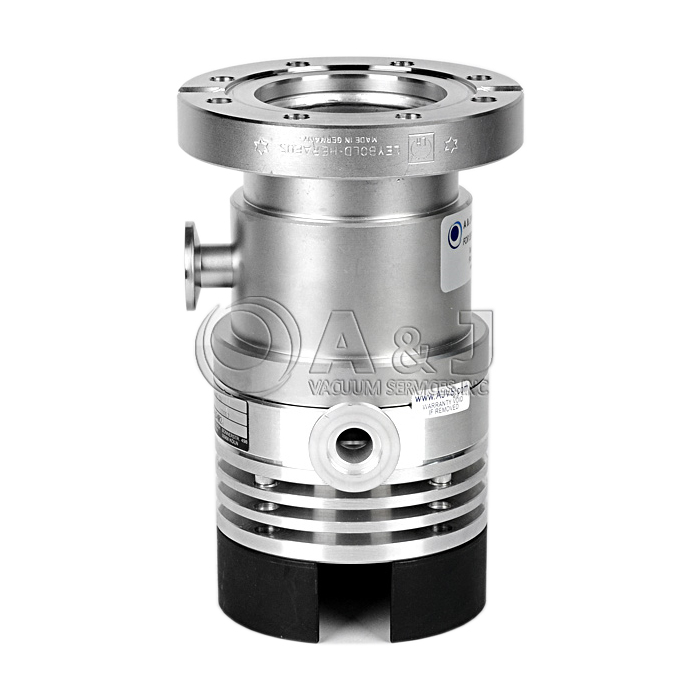

Fully Remanufactured Leybold TurboVac TMP 50 Turbo Pump, CF 63, 85402, TMP50



Leybold TurboVac TMP 50 Overview:


The Leybold TURBOVAC TMP50 P/N 85402 turbomolecular pumps featuring grease-lubricated bearings. These units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK NT 10 frequency converter and a forevacuum pump are required for the operation of the TURBOVAC TMP-50

These Leybold TMP 50 Turbo Pumps are not suitable for operation without a forevacuum pump.

Leybold TMP50 Turbomolecular pumps are not suitable for pumping either gases which contain dust particles or liquids.

Turbovac 50Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are not suitable for pumping aggressive or reactive gases.

Leybold TURBOVAC TMP 50 versions identified with a “C” in the model number are equipped with this purge gas feature, it protects only the bearing area and the motor in the TURBOVAC.

Some media (such as aluminum trichloride) can sublime inside the pump and form deposits. Thick deposits reduce the play between moving parts to the point that the pump could seize. In some processes deposits can be prevented by heating the pump. Please consult with us in case such problems arise.

Corrosive gases (such as chlorine) can destroy the rotors.

During operation the pressure inside the TURBOVAC TMP50 turbo pump is so low that there is no danger of ignition (at pressures below about 100 mbar, 75 Torr). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 100 mbar (75 Torr). During operation the pump can reach temperatures as high as 120°C (248 °F). Sparks could occur in case of damage to the pump and these could ignite explosive mixtures.



Leybold TurboVac TMP 50 Pumping speed:


Leybold Turbovac TMP 50 Pumping Speed, 85402



Leybold TurboVac TMP 50 Dimensions:


Leybold Turbovac TMP 50 Dimensions, 85402


A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 50 Turbo  Vacuum  Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold  Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured In Stock
Item#: PN00205 Mfr Part#: 85400 Manufacturer: Leybold
PRICE: $2,995.00
YOU PAY: $2,995.00

Fully Remanufactured Leybold TurboVac TMP 50 Turbo Pump, KF 40, 85400, TMP50



Leybold TurboVac TMP 50 Overview:


The Leybold TURBOVAC TMP50 P/N 85400 turbomolecular pumps featuring grease-lubricated bearings. These units are engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK NT 10 frequency converter and a forevacuum pump are required for the operation of the TURBOVAC TMP-50

These Leybold TMP 50 Turbo Pumps are not suitable for operation without a forevacuum pump.

Leybold TMP50 Turbomolecular pumps are not suitable for pumping either gases which contain dust particles or liquids.

Turbovac 50Turbomolecular pumps without a purge gas feature are suitable only for moving air or inert gases. They are not suitable for pumping aggressive or reactive gases.

Leybold TURBOVAC TMP 50 versions identified with a “C” in the model number are equipped with this purge gas feature, it protects only the bearing area and the motor in the TURBOVAC.

Some media (such as aluminum trichloride) can sublime inside the pump and form deposits. Thick deposits reduce the play between moving parts to the point that the pump could seize. In some processes deposits can be prevented by heating the pump. Please consult with us in case such problems arise.

Corrosive gases (such as chlorine) can destroy the rotors.

During operation the pressure inside the TURBOVAC TMP50 turbo pump is so low that there is no danger of ignition (at pressures below about 100 mbar, 75 Torr). A hazardous condition will be created if flammable mixtures enter the hot pump at pressures above 100 mbar (75 Torr). During operation the pump can reach temperatures as high as 120°C (248 °F). Sparks could occur in case of damage to the pump and these could ignite explosive mixtures.



Leybold TurboVac TMP 50 Pumping speed:


Leybold Turbovac TMP 50 Pumping Speed, 85400



Leybold TurboVac TMP 50 Dimensions:


Leybold Turbovac TMP 50 Dimensions, 85400


A&J Vacuum Repair / Rebuild and Service Oerikon Leybold Turbovac TMP 50 Turbo  Vacuum  Pumps, Oerlikon Leybold Booster Pumps along with all other Leybold  Vacuum Rotary Vane Pumps, Leybold Dry Scroll Pump repair, Leybold Leak Detector Repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854


Condition: Remanufactured Out of Stock
