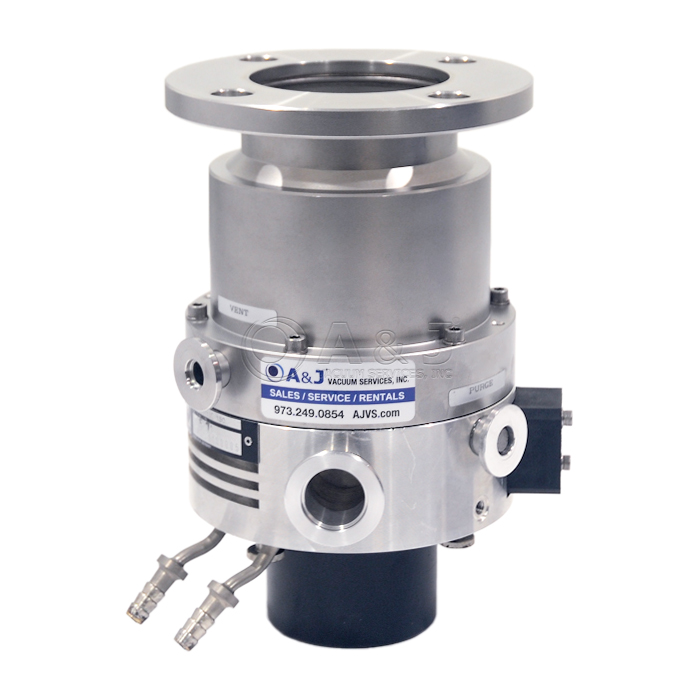

Leybold Turbovac TMP 150 (TMP150) Turbo Pump with ISO100 Inlet Flange, KF25 Outlet Flange
Leybold Turbovac TMP 150 Overview:
The TURBOVAC model 150 is a turbomolecular pump featuring oil-lubricated bearings. This unit is engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These units are not suitable for operation without a forevacuum pump.
This item comes with a FULL 12-MONTH WARRANTY!
Typical Applications:
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D, e.g.
- UHV systems
- Particle accelerators
- Load locks and transfer chambers
Technical Features:
- Compact design
- Operation in any orientation
- Oil-free pump for generating clean
- high and ultrahigh vacuumconditions
Advantages to the User
- Space-saving
- Easy to integrate into complex
vacuum systems - Low operating costs
- Highly reliable operation also in
processes loaded with particles
Leybold Turbovac TMP 150 Technical Data:
- Pumping speed: for N2 150 l/s,
- Ultimate pressure with rotary vane pump 5x10-8 mbar,
- Recommended Backing Pump 1.5-16 m3.
- Air Cooling available.
- Turbo pump designed for a wide range of applications in research industry, Space simulation, Thin film deposition, Ion source, Mass spectrometer, leak detection.
- The Leybold Turbotronic NT-150/360 Turbo Pump controller is needed to operate Leybold Turbovac TMP 150 Turbo Pump.
Oerlikon Leybold TMP 150 CSV TurboVac Turbo Pump, 00902, DN 63 ISO-K
Leybold Turbovac TMP 150 Overview:
The TURBOVAC model 150 is a turbomolecular pump featuring oil-lubricated bearings. This unit is engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These units are not suitable for operation without a forevacuum pump.
This item comes with a FULL 12-MONTH WARRANTY!
Typical Applications:
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D, e.g.
- UHV systems
- Particle accelerators
- Load locks and transfer chambers
Technical Features:
- Compact design
- Operation in any orientation
- Oil-free pump for generating clean
- high and ultrahigh vacuumconditions
Advantages to the User
- Space-saving
- Easy to integrate into complex
vacuum systems - Low operating costs
- Highly reliable operation also in
processes loaded with particles
Leybold Turbovac Oerlikon Leybold TMP 150 CSV TurboVac Turbo Pump, 85502, DN 100 ISO-K
Leybold Turbovac TMP 150 Overview:
The TURBOVAC model 150 is a turbomolecular pump featuring oil-lubricated bearings. This unit is engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These units are not suitable for operation without a forevacuum pump.
This item comes with a FULL 12-MONTH WARRANTY!
Typical Applications:
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D, e.g.
- UHV systems
- Particle accelerators
- Load locks and transfer chambers
Technical Features:
- Compact design
- Operation in any orientation
- Oil-free pump for generating clean
- high and ultrahigh vacuumconditions
Advantages to the User
- Space-saving
- Easy to integrate into complex
vacuum systems - Low operating costs
- Highly reliable operation also in
processes loaded with particles

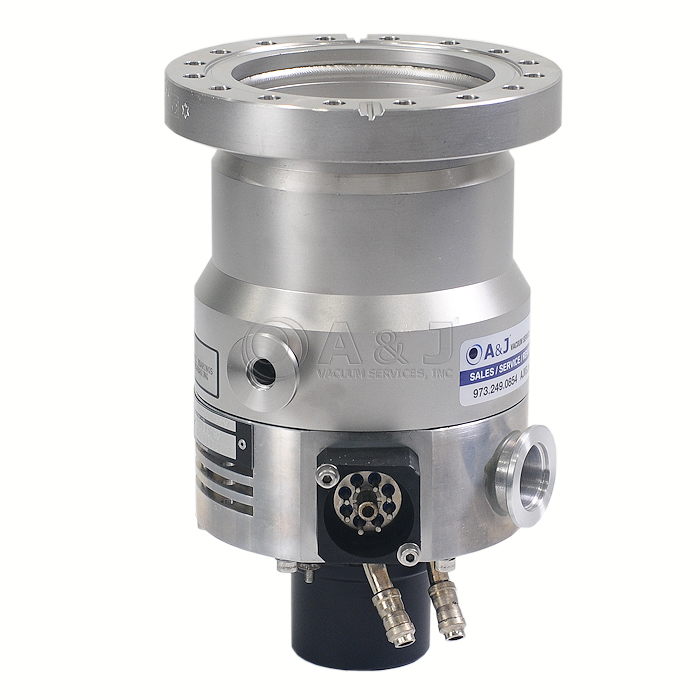

Oerlikon Leybold TMP 150 CSV TurboVac Turbo Pump, 85503, DN 100 CF-F
Leybold Turbovac TMP 150 Overview:
The TURBOVAC model 150 is a turbomolecular pump featuring oil-lubricated bearings. This unit is engineered to pump vacuum chambers down to pressures in the high-vacuum range. A TURBOTRONIK frequency converter and a forevacuum pump are required for the operation of the TURBOVAC.
These units are not suitable for operation without a forevacuum pump.
This item comes with a FULL 12-MONTH WARRANTY!
Typical Applications:
- Leak detectors
- Mass spectrometers
- Data storage
- Optical coating
- R & D, e.g.
- UHV systems
- Particle accelerators
- Load locks and transfer chambers
Technical Features:
- Compact design
- Operation in any orientation
- Oil-free pump for generating clean
- high and ultrahigh vacuumconditions
Advantages to the User
- Space-saving
- Easy to integrate into complex
vacuum systems - Low operating costs
- Highly reliable operation also in
processes loaded with particles
