- Pumping Speed (50/60 Hz): 22.5 / 25 m3/h
- Ultimate Pressure: < 0.8 mbar
- Mains Connection: 110-120 V, 1-ph, 50/60 Hz
- Inlet connection: NPT 3/4" + NPT 1/2" Inside Thread
Shopping Cart ( )

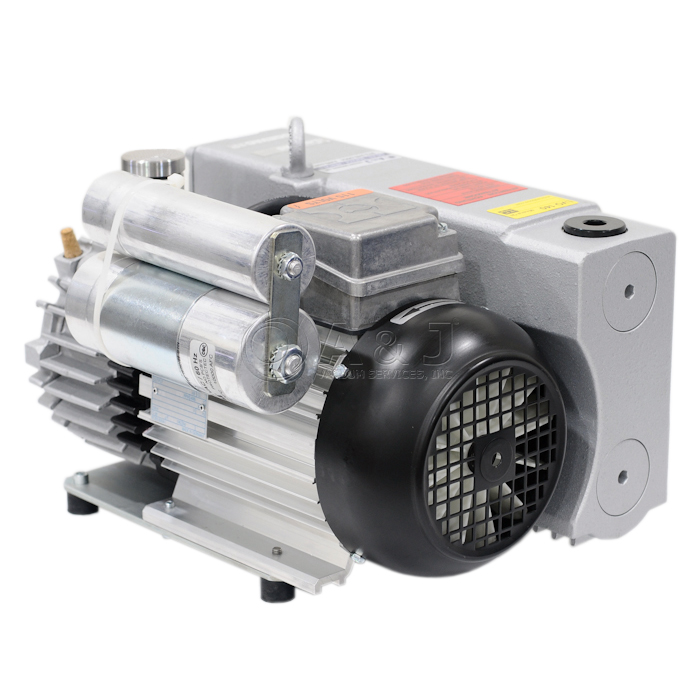

Leybold SOGEVAC SV 25 FP Vacuum Pump with Gas Ballast Valve, Single Phase, 110-120 V, 50/60 Hz, 960261FP
Condition:
New
Item#:PN22171
Mfr Part#:960261FP
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold SOGEVAC SV 25 FP Vacuum Pump with Gas Ballast Valve, Single Phase, 110-120 V, 50/60 Hz, 960261FP
Leybold SOGEVAC SV 25 FP Features:
- Compact design and small footprint
- Very low and constant noise level in any working condition
- Integrated functions, no external pipe
- Simplified maintenance
SOGEVAC SV 25 FP / 960261FP Overview:
Leybold SOGEVAC SV25 FC range of Rotary Vane Vacuum Pumps is setting new standards in the vacuum industry. The pumps allow space saving in your developments with minimum customer design constraints. It can also replace almost any pump in the field without requiring special adaptations.
Improved lubrication circuits and mechanical tolerances provide a constant low noise level at all working pressures. This provides a new standard in work area comfort to those operating your system.
All lubrication circuits as well as the gas ballast system have been integrated into the pumps’ major components allowing limited sealings and a reduced number of parts. As a result, improved product reliability and durability is gained with prolonged maintenance intervals.
The new SOGEVAC B pumps carry on with the proven and user-friendly maintenance concept of the former generation. All maintenance points are located on the front of the pump. Enhancements include an unambiguous angle mounted oil-sight glass offering visibility from two sides and a unique system that allows an easier exhaust demister replacement.
SOGEVAC SV25FP Applications:
- Vacuum packaging
- Vacuum processing
- Central vacuum systems
- Degassing
- Drying / Filling
- Freeze Drying
- Impregnation
- Leak testing
- Laser
- Handling / Lifting
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 25FP vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold SOGEVAC SV 25 FP Vacuum Pump with Gas Ballast Valve, Single Phase, 110-120 V, 50/60 Hz, 960261FP
Leybold SOGEVAC SV 25 FP Technical Data:
- Nominal pumping speed (50Hz | 60Hz): 26 m3/h | 31 m3/h
- Pumping speed (50Hz | 60Hz): 22.5 m3/h | 25 m3/h
- Ultimate partial pressure without gas ballast (50Hz | 60Hz): ≤ 0.5 mbar | ≤ 0.5 mbar
- Ultimate total pressure with small gas ballast (50Hz | 60Hz): ≤ 0.8 mbar | ≤ 0.8 mbar
- Water vapour tolerance (50Hz | 60Hz): 10 mbar | 10 mbar
- Water vapour tolerance load (50Hz | 60Hz): 85 g/h | 100 g/h
- Noise level (50Hz | 60Hz): 64 dB(A) | 67 dB(A)
- Motor power - Rated rotational speed (50Hz | 60Hz): 0.9-3000 kW-min^-1 | 1.1-3600 kW-min^-1
- Protection - Isolation (50Hz | 60Hz): IP55 - F | IP55 - F
- Leak rate (50Hz | 60Hz): 1X10^-3 mbar.l.s^-1 | 1X10^-3 mbar.l.s^-1
- Oil type / capacity (50Hz | 60Hz): LVO 140 / 1 L | LVO 140 / 1 L
- Weight with mineral oil (50Hz | 60Hz): 26 - 27 kg | 26 - 27 kg
- Intake connection (50Hz | 60Hz): G 3/4 + G1/2 | G 3/4 + G1/2
- Exhaust connection (50Hz | 60Hz): G 3/4 | G 3/4
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versions of SOGEVAC SV 25FP vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
