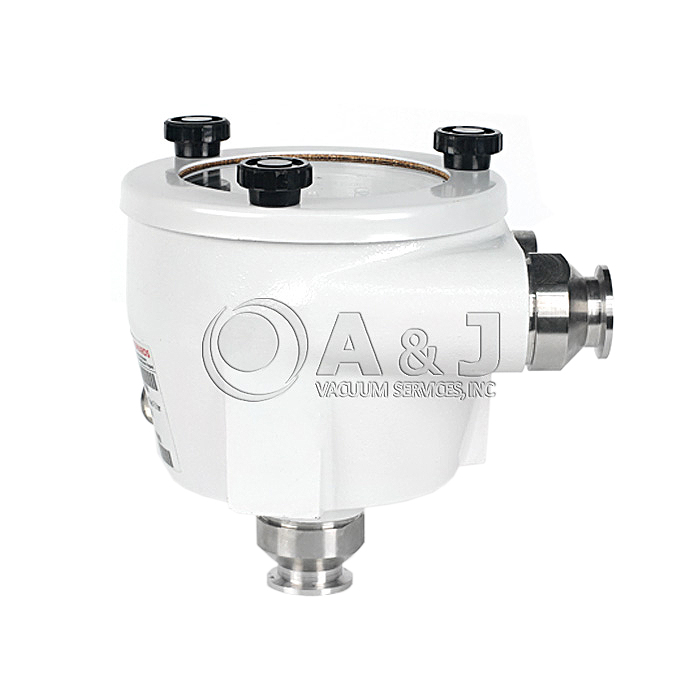

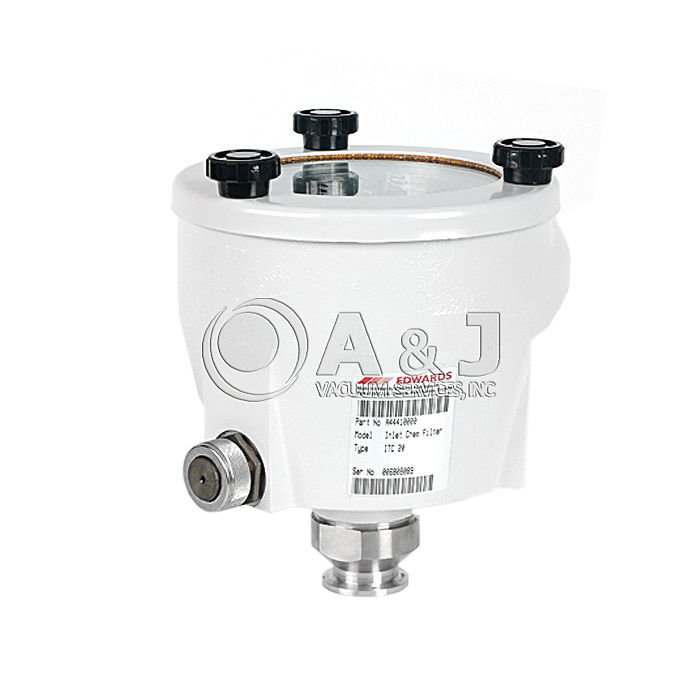

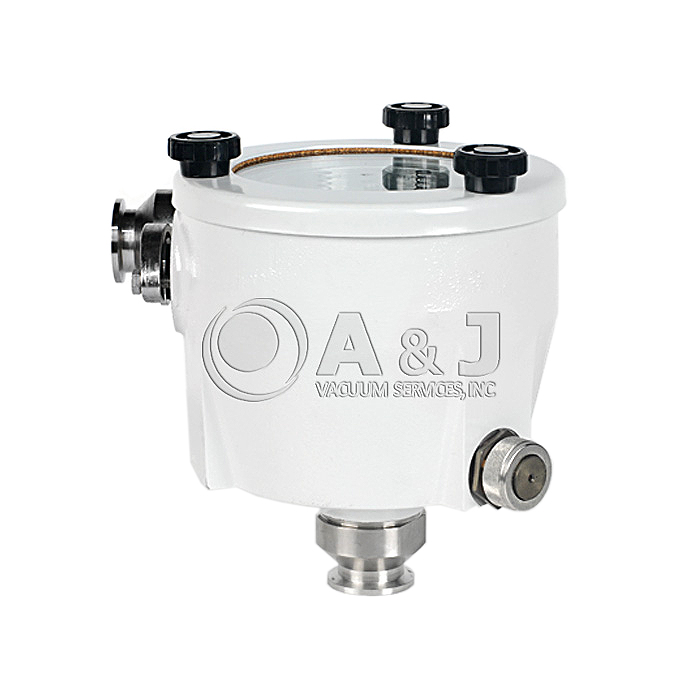

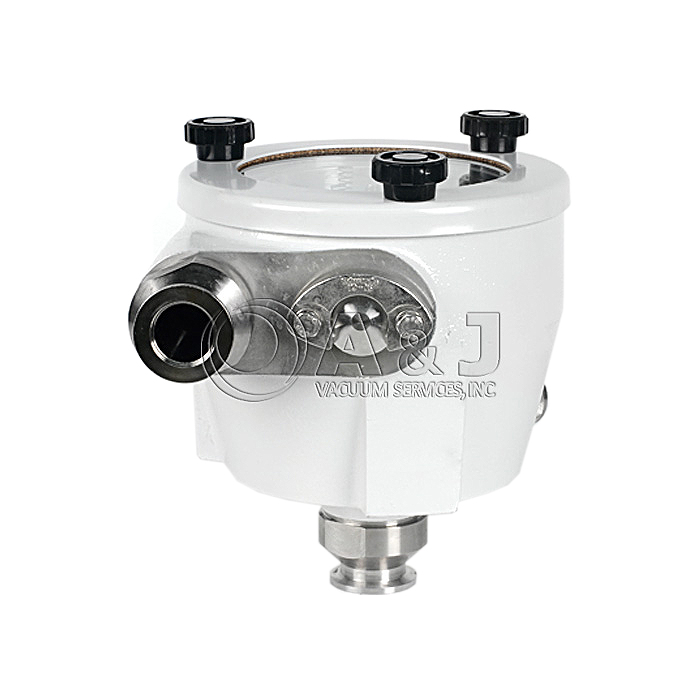

Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000
Item#: PN00840 Mfr Part#: A44410000 Manufacturer: Edwards Vacuum
Condition: New In Stock
New Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000 These catchpots minimize the entry of condensable vapors into the pump.

Features:
  • Flange size: NW 25
  • Trap-body (kg): 3.5 kg
  • Charge (kg): 0.4 kg
  • Charge material: Activated charcoal or activated alumina

PRICE: $2,390.00
WEB SAVINGS: $10.00
YOU PAY: $2,380.00
Item#: PN00840 Mfr Part#: A44410000
Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000
Item#: PN00840 Mfr Part#: A44410000 Manufacturer: Edwards Vacuum

Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000



Edwards ITC20K Overview:


Inlet traps, dust filters and catchpots have an aluminum body with a removable metal top cover/or sight-glass. The inlet-port is at a tangent to the body to achieve a degree of centrifugal separation of solid and liquid particles.

All inlet traps, catchpots and filters of the same size have the same body. The traps and filters have containers and filter elements which fit inside the body.

To provide maximum protection to the pumping system they should be installed as close to the vacuum pumping system as is possible.

The ITC Inlet Chemical Trap protects the pump against aggressive or heavy, lacquer-forming vapours which may damage the pump or contaminate the pump oil.



Edwards ITC20K Features:


  • Protection against various aggressive vapors, which may attack the pump or pump oil
  • Prevent high molecular weight vapors (such as might arise in a resin treatment plant), from reaching the pump. These vapors could cause lacquering or clogging.
  • The standard sorbent (activated charcoal), has relatively high trapping porperties (absorbs around 25% of its own weight), even when large amounts of water vapor are being pumped.
  • When filled with activated alumina on two-stage pumps, backstreaming of pump oil can be controlled



Edwards ITC20K Dimensions:


Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000, Dimensions




A&J Vacuum Services offers full repair/service of Edwards Pumps, along with all other brands offered on our website. AJVS also services Edwards Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

Edwards ITC20K (ITC 20K) Vacuum Pump Inlet Chemical Trap, KF25, A44410000



Edwards ITC20K Technical Data:


Flange size: NW 25
Trap-body (kg): 3.5 kg
Charge (kg): 0.4 kg
Charge material: Activated charcoal or activated alumina

A&J Vacuum Services offers full repair/service of Edwards Pumps, along with all other brands offered on our website. AJVS also services Edwards Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.

| Service and Repair
We can repair your:
  • Turbo Pumps
  • Rotary Vane Pumps
  • Dry Vacuum Pumps
  • Leak Detectors
  • Scroll Dry Pumps
  • Vacuum Boosters
  • Diaphragm Dry Pumps
You trusted worldwide leader of High Vacuum equipment!
Call us for your free repair estimate!
973-249-0854

A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.

We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.

We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.

Repair Steps

  1. Full incoming inspection and run up time check, vibration check, drive inspection.
  2. Full disassembly, decontamination and cleaning.
  3. Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
  4. Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
  5. Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.

Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
