Oerlikon / Leybold PhoeniXL 300 Dry Leak Detector With ScrollVac 30 D Dry Scroll Pump, 250001

Oerlikon / Leybold PhoeniXL 300 Dry Leak Detector With ScrollVac 30D Dry Scroll Vacuum Pump, 250001

Oerlikon / Leybold 300 Overview:

The PhoeniXL is a leak detector for Helium or Hydrogen. This instrument may be used to detect the location and the size of leaks on objects under test in two different ways:

• When the test sample has been evacuated first and is sprayed with helium on the outside. It is required that a vacuum connection is provided between the PhoeniXL and the test sample (vacuum mode).

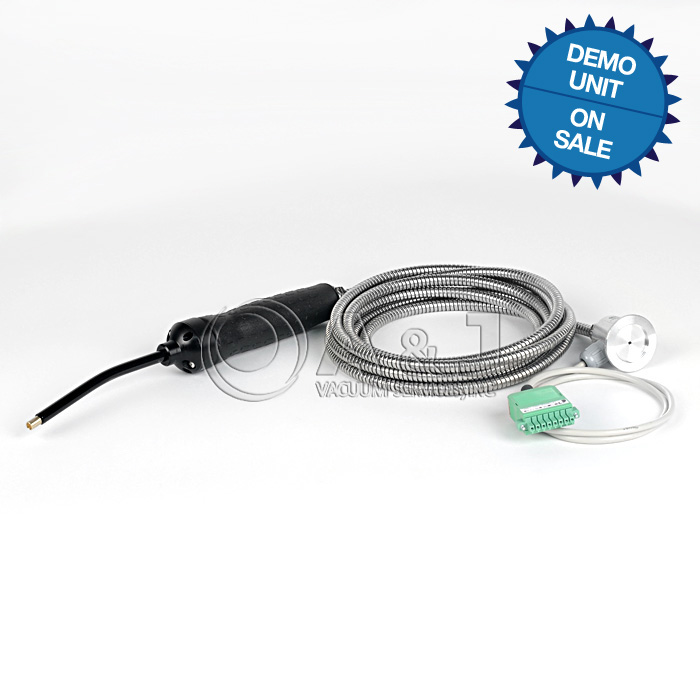

• When a helium overpressure is provided in the test sample and the test sample is searched from the outside with a sniffer probe which is attached to the inlet port (sniffer mode).

The PhoeniXL is to be used for leak detection only. It must not be used as a pumping system (esp. pumping aggressive or humid gases.)

Pumping condensable gases and steams: When pumping test sample water vapour that is inside the test object can attain to the fore pump. With the water vapor that is in the air - especially in humid areas or when using humid or wet test samples - the acceptable compatibility of water vapor or capacity of water vapor respectively can be exceeded. The steam in the oil of the pump condeses when the water vapor rises over the acceptable value. So the attribute of the oil changes and danger of corrosion occures for the pump.

While using the leak detector with condensable gases and steams the oil of the fore pump has to be controlled regularly. So you can recognize a condensation of water vapor in the pump. Usually the oil is light and lucent. When water vapor is inside it gets blear and milky at operating state temperature. When turning the pump off water vapor condensates and raises the part of water in the oil.

The leak detector must not directly be switched off after the process, in which condensable gases or steams are pumped, is finished. It must be running (at least 20 minutes) with opend gas ballast valve until the oil of the pump is freed from detached steam.

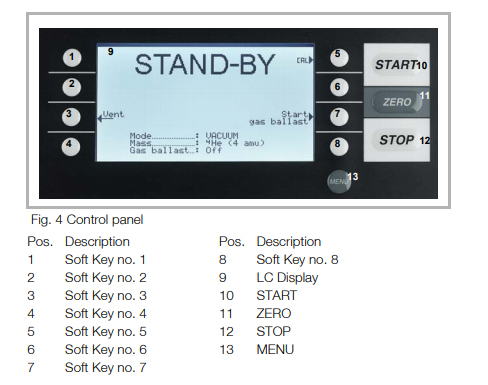

Oerlikon / Leybold 300 Front Panel:

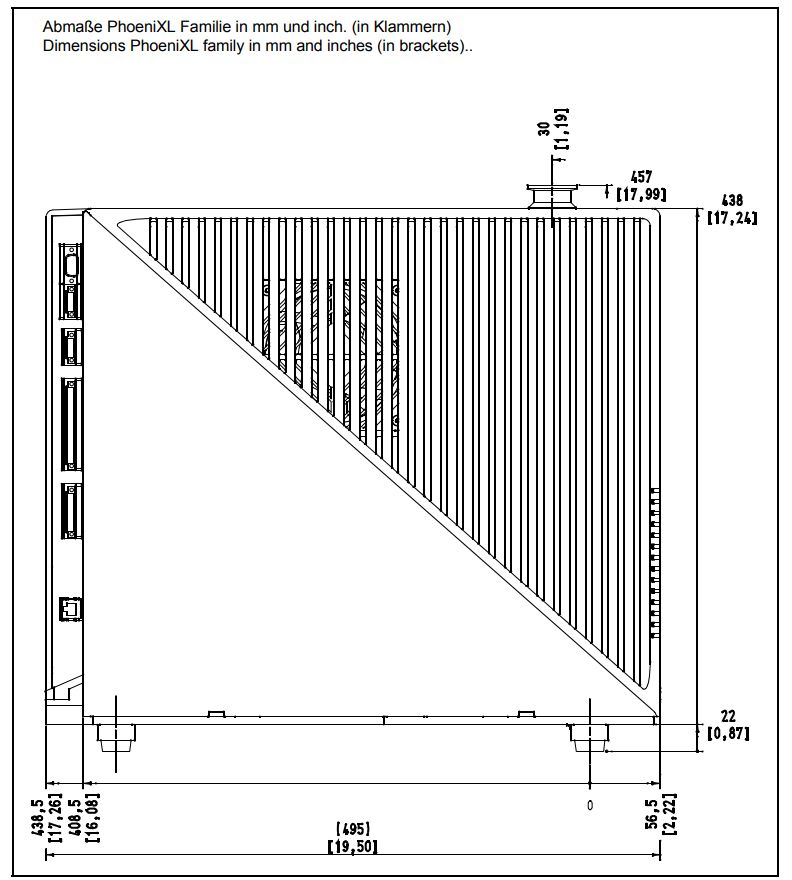

Oerlikon / Leybold 300 Dimensions:

Click Here for Leybold PhoeniXL 300 Operating Instruction

Click Here for Leybold Oerlikon Helium Leak Detectors

Click Here for Leybold Leybold Product Brochure

A&J Vacuum Services offers full repair/service of Oerlikon / Leybold PhoeniXL 300, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
