- Pumping Speed at 50 Hz: 9.7 cfm
- Pumping Speed at 60 Hz: 11.7 cfm
- Ultimate Pressure: 1.5 x 10-3 Torr
- 1730 RPM
Shopping Cart ( )

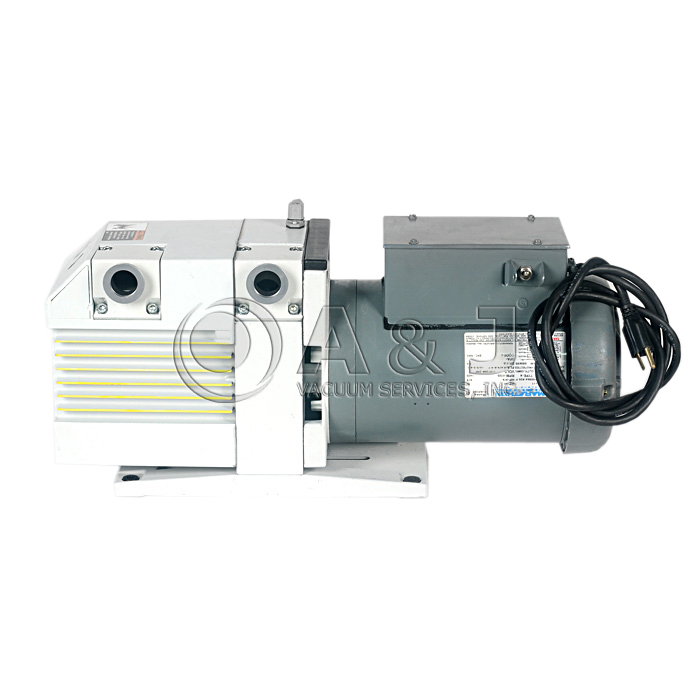

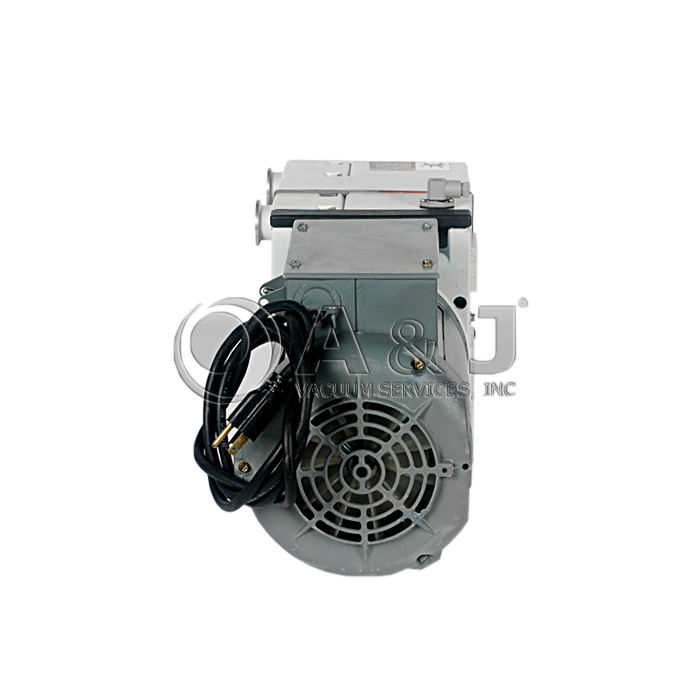

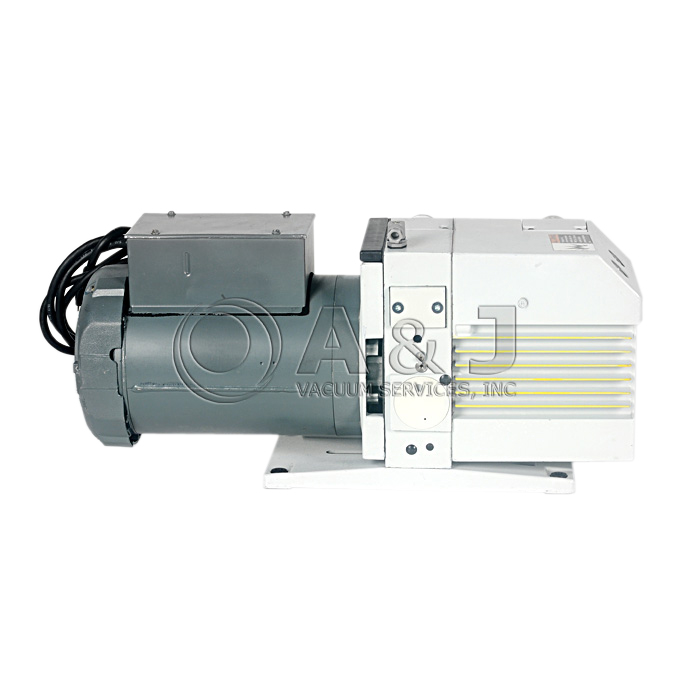

Leybold / Oerlikon Trivac D 16 BCS Rotary Vane Pump, 200 - 240V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-1
Condition:
Remanufactured
Call us for Availability
Item#:PN17842
Mfr Part#:91369-1
Manufacturer:Leybold
Price upon request
CONTACT US
Features:
Leybold / Oerlikon Trivac D 16 BCS Rotary Vane Pump, 200 - 240V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-1
D16BCS / 91369-1 Overview:
Leybold / Oerlikon Trivac B pumps are oil-sealed rotary vane pumps. Trivac B pumps can pump gases and vapors and evacuate vessels or vacuum systems in the fine vacuum range. Those of standard design are not suitable for pumping greater than atmospheric concentrations of oxygen, hazardous gases, or extremely aggressive or corrosive media.

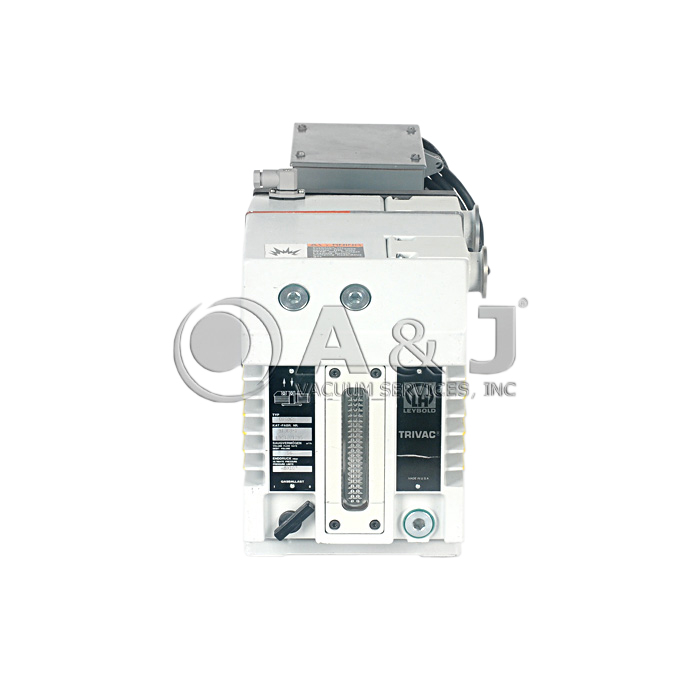

The drive motor of the Trivac B is directly flanged to the pump at the coupling housing. The pump and motor shafts are directly connected by a flexible coupling. The bearing points of the pump module are force lubricated sliding bearings. All controls as well as the oil-level glass and the nameplate are arranged on the front. All connections are to be found at the sides of the pump. The oil-level glass is provided with prisms for better observation of the oil level.
The pump module consists of assembly parts which are pin-fitted so as to allow easy disassembly and reassembly. The pump module can be easily removed without special tools.
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16BCS vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Leybold / Oerlikon Trivac D 16 BCS Rotary Vane Pump, 200 - 240V, 380 - 400 V, 50 Hz | 200 - 240 V, 380 - 480 V, 60 Hz, PFPE Oil, 91369-1
Leybold D16BCS Technical Data:
| Nominal pumping speed (50Hz | 60Hz) | 18.9 m3/h (11.1 cfm) | 22.7 m3/h (13.4 cfm) |
| Pumping speed (50Hz | 60Hz) | 16.5 m3/h (9.7 cfm) | 19.8 m3/h (11.7 cfm) |
| Ultimate partial pressure without gas ballast (50Hz | 60Hz) | 10-4 mbar (0.75 x 10-4 Torr) | 10-4 mbar (0.75 x 10-4 Torr) |
| Ultimate total pressure without gas ballast (50Hz | 60Hz) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) | < 2 x 10-3 mbar (< 1.5 x 10-3 Torr) |
| Ultimate total pressure with gas ballast (50Hz | 60Hz) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) | < 5 x 10-3 mbar (< 3.8 x 10-3 Torr) |
| Water vapor tolerance (50Hz | 60Hz) | 25 mbar (18.8 Torr) | 25 mbar (18.8 Torr) |
| Water vapor capacity (50Hz | 60Hz) | 305 g/h (0.672 lbs/h) | 370 g/h (0.816 lbs/h) |
| Oil filling, min. / max. (50Hz | 60Hz) | 0.5 / 1.0 l (0.5 / 1.1 qt) | 0.5 / 1.0 l (0.5 / 1.1 qt) |
|
Noise level to DIN 45 635, without / with gas ballast (50Hz | 60Hz) |
54 / 56 dB(A) | 54 / 56 dB(A) |
| Admissible ambient temperature (50Hz | 60Hz) | +12 to +40 °C (+54 to +104 °F) | +12 to +40 °C (+54 to +104 °F) |
| Motor rating (50Hz | 60Hz) | 750 W (1 HP) | 750 W (1 HP) |
| Nominal speed (50Hz | 60Hz) | 1425 rpm | 1730 rpm |
| Type of protection (50Hz | 60Hz) | IP 55 | IP 55 |
| Connections, Intake and Exhaust (50Hz | 60Hz) | 25 KF | 25 KF |
| Weight (50Hz | 60Hz) | 28 kg (61.7 lbs) | 28 kg (61.7 lbs) |
A&J Vacuum Service / rebuild and repair all Leybold vacuum pumps. We service all versionsof Trivac D16BCS vacuum pumps. AJVS also provides Customers with Leybold Scroll Pump service along with Vacuum Boosters, Leybold Vacuum Pumps, Leybold Helium Leak Detectors along with all other Leybold Turbo Pumping Stations, Leybold Turbo Pump Repair, Roots Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Item#:PN01538
Mfr Part#:19131D16KIT
Condition: In Stock
New
In Stock
$415.00
Item#:PN12133
Mfr Part#:E35001179 / 35001179
Condition: In Stock
New
In Stock
$49.99
Item#:PN07559
Mfr Part#:KF25CLA
Condition: In Stock
New
In Stock
$10.25
Item#:PN07593
Mfr Part#:KF25CRVA
Condition: In Stock
New
In Stock
$9.75
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
