- Stainless Steel Ring
- FKM O-Ring
- DN 16 ISO-KF
- Mesh Size: 0.004 mm | 1.575 · 10-4 inch
Shopping Cart ( )
Pfeiffer Centering Ring with Fine Filter, 316L Stainless Steel, DN 16 ISO-KF, FKM O-Ring, 2000008097 / PT 120 132 -T / PT120132-T
Condition:
New
Item#:PN57886
Mfr Part#:2000008097 / PT 120 132 -T / PT120132-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Centering Ring with Fine Filter, 316L Stainless Steel, DN 16 ISO-KF, FKM O-Ring, 2000008097 / PT 120 132 -T / PT120132-T
Pfeiffer Centering Ring with Fine Filter Features:

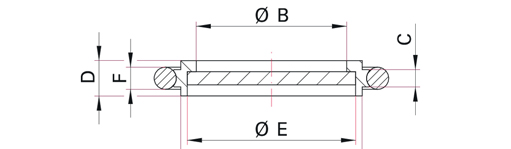

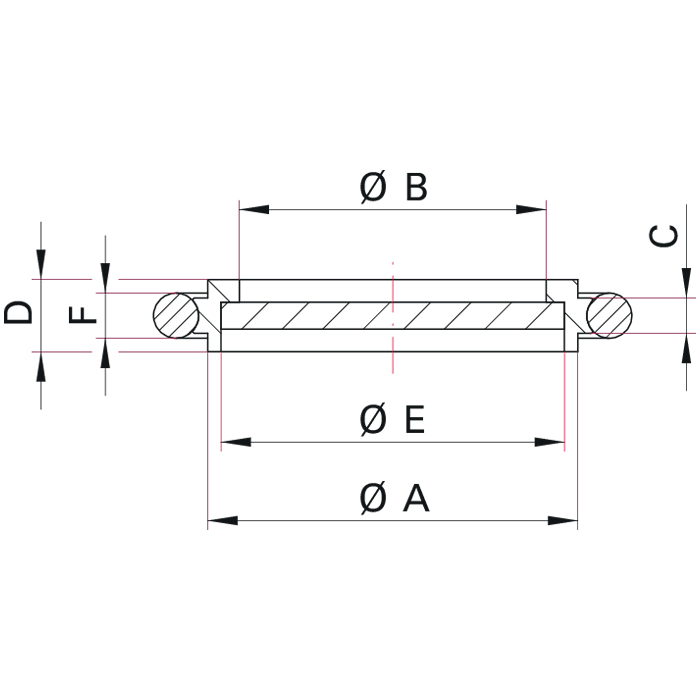

Stainless Steel Ring with FKM Seal Dimensions
- A: 0.67 in / 17 mm
- B: 0.51 in / 13 mm
- C: 0.15 in / 3.9 mm
- D: 0.31 in / 8 mm
- E: 0.60 in / 15 mm
- F: 0.20 in / 5 mm
Centering Ring with Fine Filter / PT120132-T Overview:
The Centering Ring is available in the stainless steel material, with a mesh size of 0.004 mm. The o-ring includes FKM material.
A&J Vacuum services and repairs Pfeiffer Vacuum Hardware, along with all other Pfeiffer Vacuum and Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Centering Ring with Fine Filter, 316L Stainless Steel, DN 16 ISO-KF, FKM O-Ring, 2000008097 / PT 120 132 -T / PT120132-T
Pfeiffer Centering Ring with Fine Filter Technical Data:
| Connection flange | DN 16 ISO-KF |
| Material |
Filter stainless steel 1.4404/316L, |
| Mesh size | 0.004 mm | 1.575 · 10-4 inch |
| O-ring material | FKM |
| Temperature range | -15 – 150 °C | 5 – 302 °F | 258.15 – 423.15 K |
| Usage | Gauge with DN 16 ISO-KF |
A&J Vacuum services and repairs Pfeiffer Vacuum Hardware, along with all other Pfeiffer Vacuum and Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
