- Main Area of Application: Lubrication
- Resistant to Contamination and Creep Effect
- Easy to Clean and Remove, Through Hot Water/Detergent
- Ideal Working Temperature Between 10 - 30 C
Shopping Cart ( )

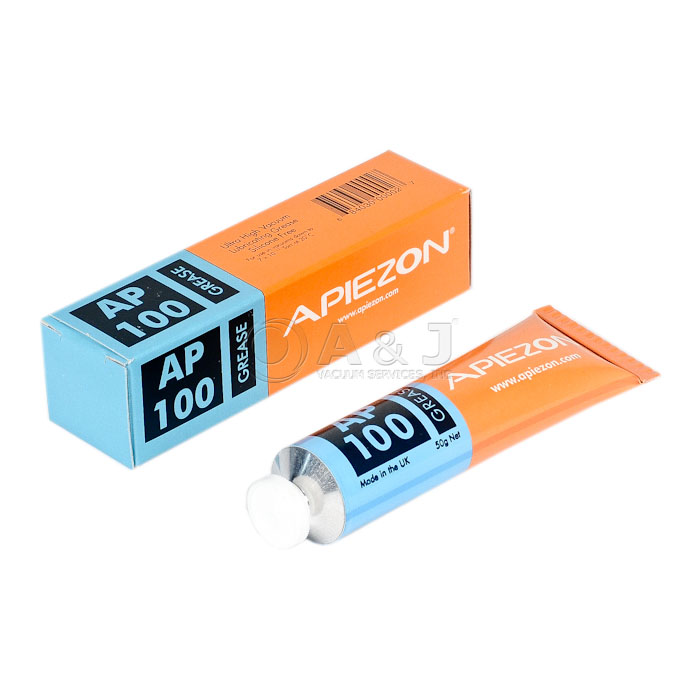

Apiezon AP 100 Ultra High Vacuum Lubricating Grease, Silicone Free, Hydrocarbon, 50-Gram Tube, AP100
Condition:
New
In Stock
Item#:PN17560
Mfr Part#:APIEZON AP 100
Manufacturer:Apiezon
Features:
Apiezon AP 100 Ultra High Vacuum Lubricating Grease, Silicone Free, Hydrocarbon, 50-Gram Tube, AP100
AP 100 Ultra High Vacuum Lubricating Grease / APIEZON AP 100 Overview:
The Apiezon AP family of hydrocarbon high-vacuum greases has been serving the market for a number of years and includes products highly regarded worldwide for their quality, consistency and excellent performance within vacuum applications. The greases are silicone-free and highly resistant to creep - the undesirable phenomenon often associated with many silicone-based products.
Apiezon AP 100 Grease is a silicone-free vacuum grease and lubricant. Containing PTFE, the AP100 brand of lubricating greases exhibits extremely high levels of lubricity and has been shown to provide eight times the level of lubrication offered by standard, petroleum-based lubricating greases. Apiezon AP100 is designed for use at ambient temperatures (generally ranging from 10 to 30 degrees Celsius). If you are seeking a grease capable of effectively performing at higher temperatures, Apiezon AP101 or Apiezon H Grease may be more appropriate.
The grease is an ultra-high vacuum lubricating grease which has anti-seize properties, making it an effective protector and lubricant in ultra high vacuum applications. It demonstrates an extremely low water vapor pressure of 7 x 10^[-11] Torr at 20 degrees Celsius. It is recommended for use at ambient temperatures and does not suffer from the contamination problems associated with silicone-based greases (these include commonly-recognized phenomena such as "creep" or "carry-over"). Apiezon AP100 grease is relatively easy to clean and remove using hot water and an aqueous glassware detergent, hydrocarbon or chlorinated solvents.
AP100 UltraHighVacuumLubricatingGrease Applications:
- Protecting stepping motors and gearboxes from corrosion and abrasion
- Prevent seizure in stopcocks, taps and small metal fastenings
- Analytical techniques
- Surface coating
Apiezon AP 100 Ultra High Vacuum Lubricating Grease, Silicone Free, Hydrocarbon, 50-Gram Tube, AP100

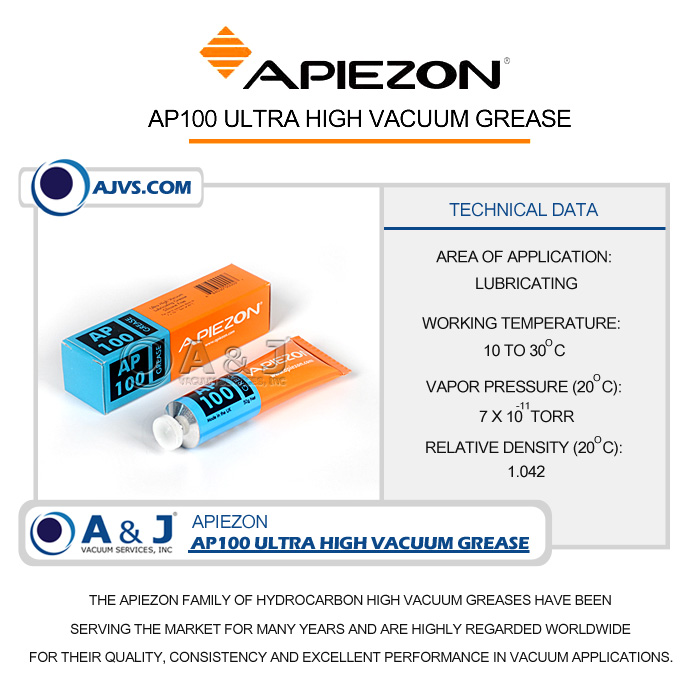

Apiezon AP 100 Ultra High Vacuum Lubricating Grease Technical Data:
- Main Area of Application: Lubrication
- Working Temperature: 10 to 30 Degrees Celsius / 50 to 86 Degrees Fahrenheit
- Vapor Pressure at 20 Degrees Celsius: 7 x 10^[-11] Torr
- Relative Density at 20 Degrees Celsius: 1.042
Apiezon AP100 High Vacuum Grease
Apiezon Greases, Lubricants and Sealants
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
