- Dual-Stage High Performance Rotary Vane Pump
- Motor Incorporates Diverse Voltage Settings
- Included Gas Ballast & Safety Valve
- Optional Feature for Magnetic Coupling
Shopping Cart ( )
Pfeiffer DUO 3 M Rotary Vane Vacuum Pump with Switch, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000021650 / PK D77 111 C / PKD77111C
Condition:
New
In Stock
Item#:PN24540
Mfr Part#:2000021650 / PK D77 111 C / PKD77111C
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer DUO 3 M Rotary Vane Vacuum Pump with Switch, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000021650 / PK D77 111 C / PKD77111C
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO 3 M Features:
- Dual Stage, High Performance Rotary Vane Pump
- Integrated Gas Ballast and Safety Valve
- Ideally Utilized for Low-to-Medium Intensity Vacuum Applications
- Optional Feature for Magnetic Coupling
- Special Feature: Various Motor Voltages Settings Worldwide Employment & Standardization
- Other Motor Voltages Available Upon Request
DUO 3 M / PKD77111 Overview:
The Pfeiffer DUO 3M Vacuum Pump is a direct replacement and update over the now-obsolete Pfeiffer DUO 2.5 Vacuum Pump. The PK D57 111 C variation is a direct replacement to the previous generation PKD57111A and PK 57111 B models. The DUO 3M series of Pfeiffer Rotary Vane vacuum pumps incorporates oil-stage lubrication and a two-stage operating mechanism.
Our Pfeiffer DUO 3M Rotary Vane Pumps are likewise equipped with a high vacuum safety valve. This valve mechanism tightly seals the vacuum chamber while the pump is operating at standstill mode, while simultaneously allowing for ventillation of the pump.
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer DUO 3 M Rotary Vane Vacuum Pump with Switch, 115/230 V, 50/60 Hz, 1/2 Liter of P3 Oil Included, 2000021650 / PK D77 111 C / PKD77111C
Power cable is not included. Please view the accessories tab for compatible cables.
Pfeiffer DUO 3 M Technical Data:
| Flange (in) | DN 16 ISO-KF |
| Flange (out) | DN 16 ISO-KF |
| Pumping speed at 50 Hz | 2.5 m³/h | 1.47 cfm | 41.67 l/min |
| Pumping speed at 60 Hz | 2.9 m³/h | 1.71 cfm | 48.33 l/min |
| Ultimate pressure with gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Ultimate pressure without gas ballast | 3 · 10-3 hPa | 2.25 · 10-3Torr | 3 · 10-3 mbar |
| Exhaust pressure, max. | 1,500 hPa | 1,125 Torr | 1,500 mbar |
| Exhaust pressure, min. | 250 hPa | 187.5 Torr | 250 mbar |
| Rotation speed at 50 Hz | 3,000 rpm | 3,000 min-1 |
| Rotation speed at 60 Hz | 3,600 rpm | 3,600 min-1 |
| Cooling method, standard | Air |
| Motor version | 1-ph motor |
| Ambient temperature | 12-40 °C | 53.6-104 °F | 285-313 K |
| Emission sound pressure level without gas ballast at 50 Hz | 53 dB(A) |
| Switch | Yes |
| Mains requirement: voltage (range) | ±10 % |
| Mains requirement: voltage 50 Hz | 115 V/230 V |
| Mains requirement: voltage 60 Hz | 115 V/230 V |
| Recommended mains fuse capacity | 6/4 A |
| Mains cable | No |
| Operating fluid | P3 |
| Operating fluid filling | 0.4 l |
| Leak rate safety valve | 1 · 10-5 Pa m3/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s |

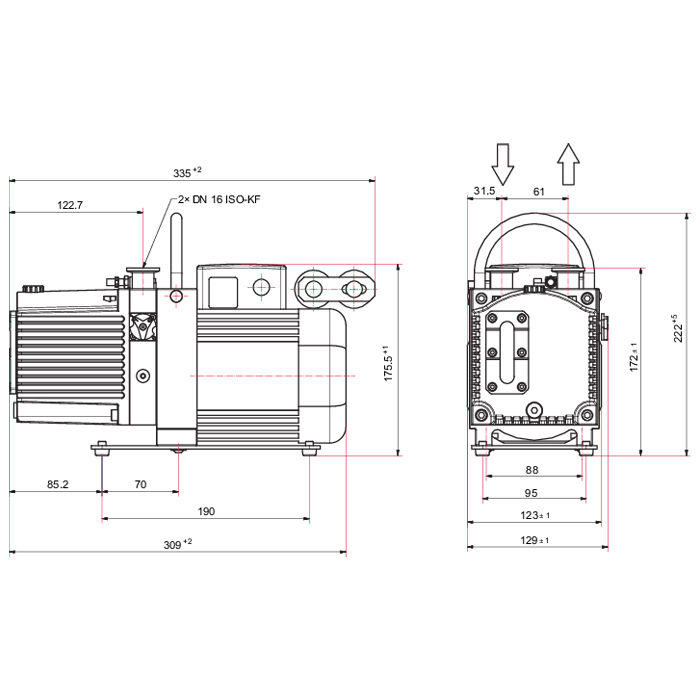

| Dimensions (L x W x H) | 335 x 129 x 222 mm | 13.19 x 5.08 x 8.74 inch |
| Rated power 50 Hz | 0.15 kW |
| Rated power 60 Hz | 0.18 kW |
| Protection category | IP40 |
| Weight | 11.5 kg | 25.35 lb |
A&J Vacuum services and repairs Pfeiffer DUO 1.6, DUO 16, DUO 3, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
