- Inlet flange: DN 100CF-F / PM Q122 013 00
- Large 7" Touchscreen Display
- Ultimate pressure: 1 x 10 -7 mbar
- MVP 030-3 Three Stage Diaphragm pump
Shopping Cart ( )

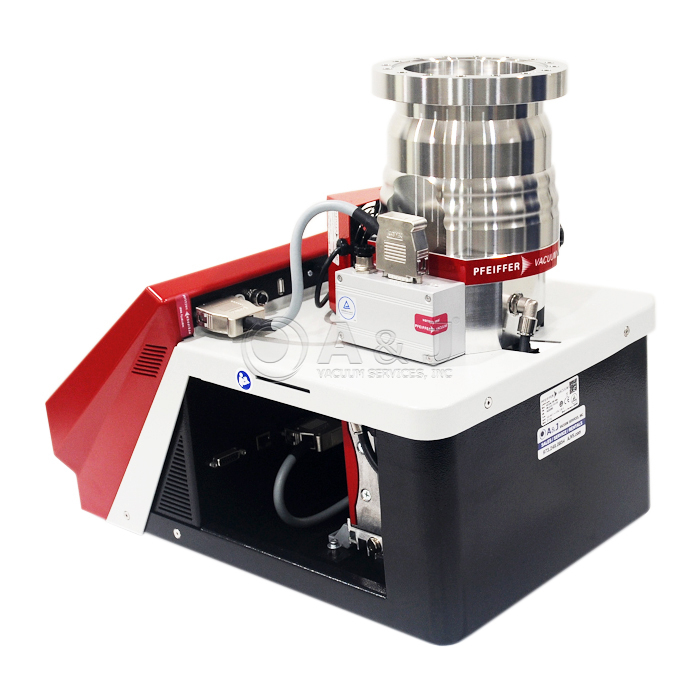

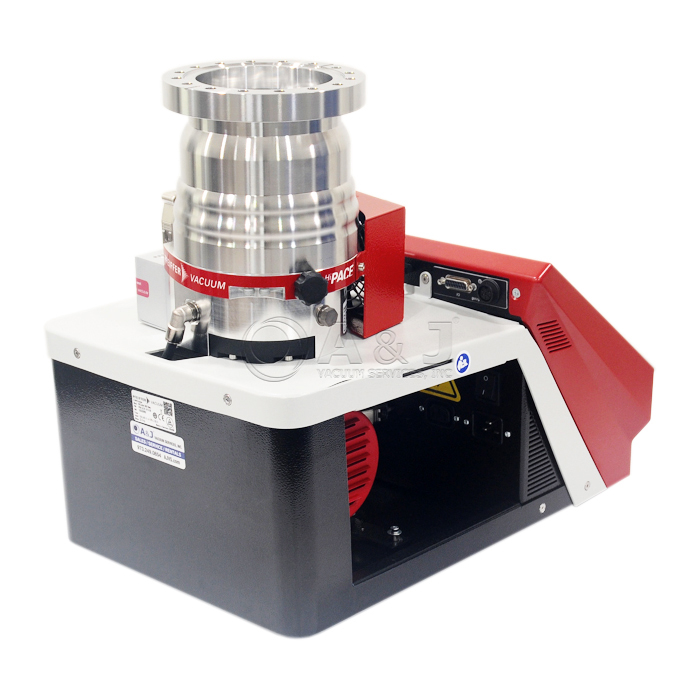

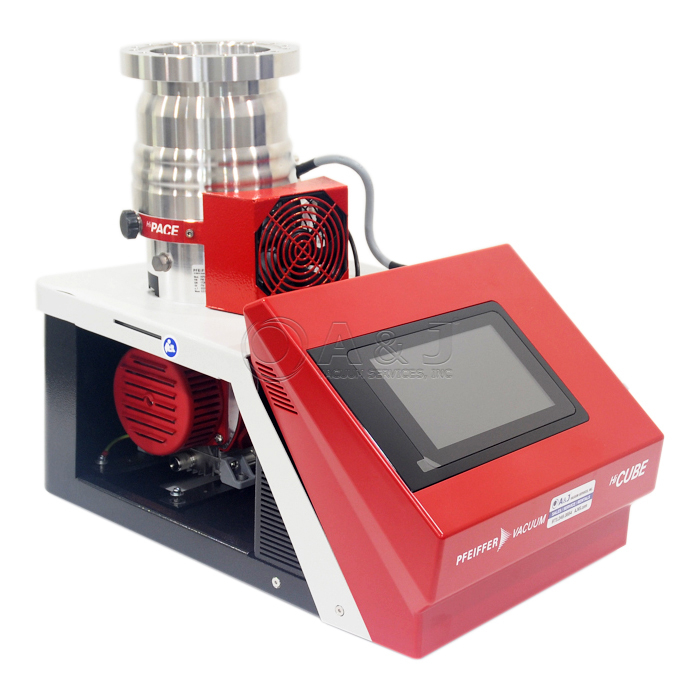

Pfeiffer HiCube 300H Neo Benchtop Turbo Pumping Station, Includes HiPace 300H High Compression Turbo Pump (DN 100 CF-F Conflat) with TC-110 Controller, MVP 030-3 Three Stage Dry Diaphragm Pump and 7" Touch Screen Controller, 2000117447 / PM 027 022 -T / PM027022-T / PM Q123 013 00
Condition:
New
In Stock
Item#:PN41241
Mfr Part#:2000117447 / PM 027 022 -T / PM027022-T / PM Q123 013 00
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer HiCube 300H Neo Benchtop Turbo Pumping Station, Includes HiPace 300H High Compression Turbo Pump (DN 100 CF-F Conflat) with TC-110 Controller, MVP 030-3 Three Stage Dry Diaphragm Pump and 7" Touch Screen Controller, 2000117447 / PM 027 022 -T / PM027022-T / PM Q123 013 00
Pfeiffer HiCube 300H Neo Benchtop Features:
- The HiCube Neo is ready for immediate use thanks to its plug and-play operation
- Air-cooled and ready for operation with HiPace 300H Extremely High Compression Turbo Pump and MVP 030-3 Three Stage Dry Diaphragm Backing Pump
- Pfeiffer HiCube 300 Neo comes with DN 100 CF-F Conflat inlet flange and TC 110 Turbo Pump Controller
- It is controlled intuitively via the 7“ color touch screen control panel
- Pfieffer HiCube 300 Neo voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
- Reliable and robust
HiCube 300H Neo Benchtop / PM027022-T Overview:
HiCube 300H Neo model series turbo pumping stations are ready-to-connect, fully automatic pump units. The turbo pumping station is designed as a portable desktop model, or mobile free-standing model; it consists of a turbopump and a backing pump specially matched to it.
The Hicube Neo dashboard appears automatically when you switch on the HiCube 300H Neo pumping station. Hicube 300H Neo dashboard provides information about the operating status of the connected pump, the system status, the pressure (if the gauge is connected), the status of the components in operation/during shutdown, the parameter list, and the actual rotation speed.
Pfeiffer Hipace 300H Turbo Pump is extremely high compression, especially for light gases. Ideal for the generation of an ultra high vacuum
The Pfeiffer Vacuum HiCube 300 Neo Benchtop Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. DN-100 CF-F Conflat Inlet Flange makes this system trully High Vacuum Pumping System.
The Hicube 300H Neo Station has a modern design with the latest turbo pump and electronics technology. Fully integrated High-performance Pfeiffer MVP 030-3 Three Stage Dry Diaphragm pump with a pumping speed of up to 1.8 m3/h withh Optimal process adoptation and rotational speed control.
Pfeiffer MVP 030-3 diaphragm backing pump provides positive displacement with a periodic change of size of the suction chamber produced by the movement of the diaphragm. The gas flow causes the valves to open and close automatically. The pump units are directly connected to the drive motor.
What’s so special about the HiCube 300 NEO vacuum solution: The combination of a turbopump from the HiPace Neo series Turbo Pump and a backing pump designed for the user’s specific application needs.
The HiCube Neo turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Neo can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Neo Turbo Stations feature connectivity for digital pressure gauges.
All HiCube 300Neo turbo pumping stations are fitted with particularly energy-efficient backing pumps that have a DC drive. The turbopump and the backing pump form a single unit in the pumping station. If there is no gas load in the vacuum, the pumping station automatically reduces the backing pump output. This results in maximum energy savings.
HiCube300HNeoBenchtop Applications:
- Automotive and Transport
- Chemical
- Medical
- Pharma and Biotech
- Power Generation
- R&D
- Scientific Instruments
- Technical Gases
- Thin Film Coating
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 300 Neo / Eco Pumping Stations along with all other Pfeiffer Vacuum MVP Diaphragm Pumps, Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. We also service New Leybold Turbo Pumping Stations, New Edwards turbo Pump Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Pfeiffer HiCube 300H Neo Benchtop Turbo Pumping Station, Includes HiPace 300H High Compression Turbo Pump (DN 100 CF-F Conflat) with TC-110 Controller, MVP 030-3 Three Stage Dry Diaphragm Pump and 7" Touch Screen Controller, 2000117447 / PM 027 022 -T / PM027022-T / PM Q123 013 00
Pfeiffer HiCube 300H Neo Benchtop Technical Data:
| Ambient temperature | 5 – 40 °C | 41 – 104 °F | 278.15 – 313.15 K |
| Backing pump | MVP 030-3 |
| Connection flange | DN 100 CF-F / G 1/8" Silencer |
| Connection flange (in) | DN 100 CF-F |
| Connection flange (out) | G 1/8" |
| Cooling method | Air (Forced convection) |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum safety valve | No |
| Input voltage(s) | 100 – 120 / 200 – 240 V AC (±10 %), 50/60 Hz |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Module Slot 1 | Gauge/IO |
| Motor for region | Worldwide |
| Pumping speed backing pump at 50 Hz | 1.8 m³/h | 1.06 cfm | 30 l/min |

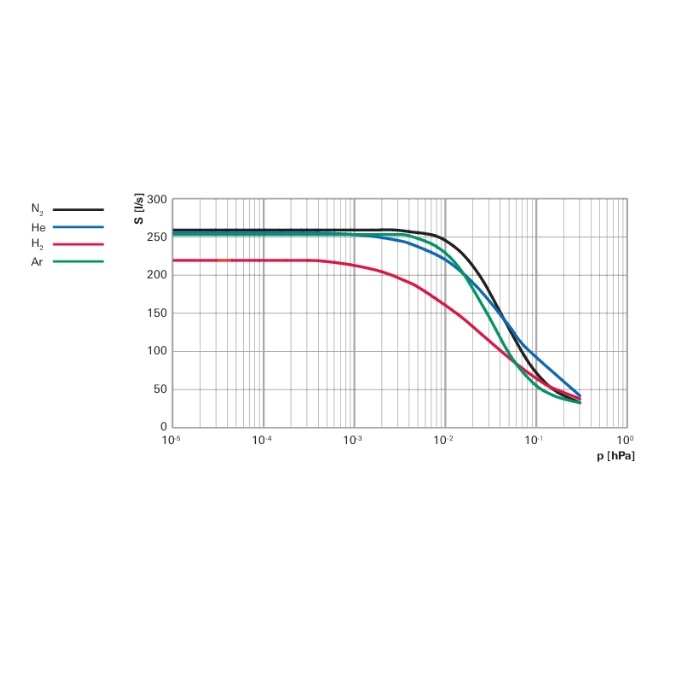

| Pumping speed for N2 | 260 l/s |
| Rated current consumption | 120 V: 1.75 A 120 V: 1.75 A |
| Rated power at max. rotation speed | 235 W |
| Turbopump | HiPace 300 H |
| Type | Turbo pumping station |
| Ultimate pressure | 1 · 10-7 hPa | 7.5 · 10-8 Torr | 1 · 10-7 mbar |
| Weight | 22.5 kg | 49.6 lb |
A&J Vacuum also repair / rebuild and service all Pfeiffer HiCube 300 Neo / Eco Pumping Stations along with all other Pfeiffer Vacuum MVP Diaphragm Pumps, Rotary Vane Pumps, Pfeiffer Dry Pumps, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. We also service New Leybold Turbo Pumping Stations, New Edwards turbo Pump Stations. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum MVP 030-3 DC Diaphragm Vacuum Pump Operating Instructions
Hipace 300H Pfeiffer Hipace300 H Turbo Pump Manual
Pfeiffer Hicube 80 Neo Benchtop Turbo Station Manual
New Pfeiffer Hicube Neo Turbo Pumping Station, New Generation High Vacuum Pumping Systems
New Pfeiffer Hicube Neo, The best pumping systems for High Vacuum
Item#:PN06784
Mfr Part#:2000017841 / PM 143 451 AT / PM143451AT
Condition: In Stock
New
In Stock
$189.95
Item#:PN17216
Mfr Part#:2000005851 / PU E22 003 -T / PUE22003-T
Condition: In Stock
New
In Stock
$582.99
Item#:PN18022
Mfr Part#:2000016413 / PM E11 051 -T / PME11051-T
Condition: In Stock
New
In Stock
$1,395.00
Item#:PN07681
Mfr Part#:ISO63-250DCC316
Condition: In Stock
New
In Stock
$21.00
Item#:PN17977
Mfr Part#:PN17977
Condition: Ships Within 1-3 Days
New
$115.00
Item#:PN22772
Mfr Part#:2000028159 / P 4564 309 ZH / P4564309ZH
Condition: Ships Within 1-3 Days
New
$53.00
Item#:PN24529
Mfr Part#:2000007753 / PT 446 021 -T / PT446021-T
Condition: Out of Stock
New
$4,580.00
Item#:PN24530
Mfr Part#:2000007754 / PT 446 022 -T / PT446022-T
Condition: Out of Stock
New
$4,660.00
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
