- Inlet Flange: DN 250 ISO-F
- Outlet Flange: DN 40 ISO-KF
- Pumping Speed: N2: 2300 l/s
- Interfaces: E74, RS-485
Pfeiffer HiPace 2800 IUT Turbo Pump with TC 1200 Controller, DN 250 ISO-F, DN 40, Bottom Flange, 2000014746 / PM P05 246 / PMP05246
Pfeiffer HiPace 2800 IUT Features:
- Powerful Turbo Pump with a pumping speed of up to 2300 l/s (N2)
- Integrated TC 1200 Drive Electronics with Power Supply
- Intelligent temperature management system
- 90° – 180° Bottom flange mounting
- Water Cooling
- Interfaces: E74, RS-485
- Semi S2 and UL/CSA certification
- Extensive Accessories Available
HiPace 2800 IUT / PMP05246 Overview:
The Pfeiffer HiPace 2800 IUT is a 90° – 180° bottom mounting turbo pump that is ideal for ion implantation systems. The pumping speed is optimized for light gases and the nickel-plated rotor guarantees resistivity to the dopants used in your process. The intelligent temperature management system reduces process condensation and deposits. The HiPace 2800IUT also has Semi S2 and UL/CSA certification.
HiPace2800IT Scope of Delivery:
- Turbopump with electronic drive unit and integrated power supply pack
- Heating jacket
- Temperature Management System (TMS box)
- Protective cover for the high vacuum connection
- Protective cover for the fore-vacuum connection
- Mating plug for the "remote" connection on the TC 1200 (type-dependent)
- Mating plug for the "E74" connection on the TC 1200 (type-dependent)
- Y-distributor M12 for the accessory connection
- Sealing gas valve (already fitted)
- Operating fluid F3 (50 ml) with syringe
- Drain nozzle
- 2 eye bolts for transport
- Corresponding coupler for cooling water connection, depending on respective pump version
- 2× 1/4” threaded hose nozzles
- 2 Swagelok couplers
- Operating instructions
HiPace2800IT Applications:
- Automotive and Transport
- Fish farming
- Metallurgy
- R&D
- Solar
- Thin Film Coating
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer HiPace 2800 IUT Turbo Pump with TC 1200 Controller, DN 250 ISO-F, DN 40, Bottom Flange, 2000014746 / PM P05 246 / PMP05246

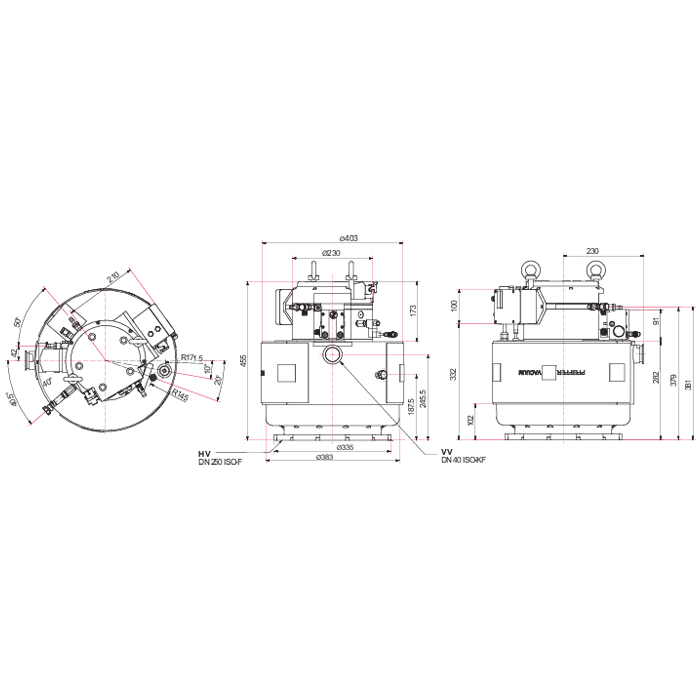

Pfeiffer HiPace 2800 IUT Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 108 |
| Compression ratio for H2 | 4 · 103 |
| Compression ratio for He | 6 · 104 |
| Compression ratio for N2 | > 1 · 108 |
| Connection flange | DN 250 ISO-F / DN 40 ISO-KF |
| Connection flange (in) | DN 250 ISO-F |
| Connection flange (out) | DN 40 ISO-KF |
| Cooling method | Water |
| Cooling water connection | In/Out: G 1/4'' |
| Cooling water flow | 100 l/h |
| Cooling water temperature | 15 – 25 °C | 59 – 77 °F | 288.15 – 298.15 K |
| Current, max. | 10 A |
| Electronic drive unit | TC 1200 |
| Emission sound pressure level (EN ISO 2151) | <50 dB(A) |
| Fore-vacuum max. for N2 | 0.8 hPa | 0.6 Torr | 0.8 mbar |
| Gas throughput at 0.1 hPa HV pressure for Ar | > 32 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for H2 | 42 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for He | 62 hPa·l/s |
| Gas throughput at 0.1 hPa HV pressure for N2 | > 50 hPa·l/s |
| Gas throughput at final rotational speed for Ar | 12 hPa·l/s |
| Gas throughput at final rotational speed for H2 | 75 hPa·l/s |
| Gas throughput at final rotational speed for He | 24 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 18 hPa·l/s |
| Gas throughput at maximum rotation speed for Ar, heated pump at 65 °C | 9 hPa·l/s |
| Gas throughput at maximum rotation speed for Ar, heated pump at 75 °C | 6 hPa·l/s |
| Gas throughput at maximum rotation speed for H2, heated pump at 65 °C | 30 hPa·l/s |
| Gas throughput at maximum rotation speed for H2, heated pump at 75 °C | 18 hPa·l/s |
| Gas throughput at maximum rotation speed for N2, heated pump at 65 °C | 13 hPa·l/s |
| Gas throughput at maximum rotation speed for N2, heated pump at 75 °C | 7 hPa·l/s |
| I/O interfaces | E74, RS-485 |
| Input voltage(s) | 208 – 240 V AC (±10 %), 50/60 Hz |
| Integral leak rate | 1 · 10-8 Pa m³/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s |
| Mains frequency compatibility | 50 Hz 60 Hz |
| Mounting orientation | 90° – 180° (HV flange bottom) |
| Permissible radial magnetic field max. | 3.4 mT |
| Position of power supply pack | Integrated power supply pack |
| Power consumption heating sleeve, max. | 1100 W |
| Power consumption max. | 1350 VA |
| Protection degree | IP20 Type 1 |
| Pumping principle | Dry |
| Pumping speed | 7560 – 10440 m³/h | 4,449.82 – 6,144.98 cfm | 126,000.25 – 174,000.35 l/min |
| Pumping speed for Ar | 2100 l/s |
| Pumping speed for H2 | 2600 l/s |
| Pumping speed for He | 2900 l/s |
| Pumping speed for N2 | 2300 l/s |
| Rotation speed variable | 50 – 100 % |
| Rotation speed ±2 % | 27300 rpm | 27,300 min-1 |
| Run-up time | 8.6 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | < 1 · 10-7 hPa | < 7.5 · 10-8 Torr | < 1 · 10-7 mbar |
| Venting connection | G 1/8" |
| Weight | 62 kg | 136.69 lb |
A&J Vacuum Services offers full repair/service of Pfeiffer Vacuum Pumps, along with all other brands offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum Hipace 2800 It, 2800 IUT Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
