Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), PKR361 Gauge, MVP 015-2 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (CF 40), 3m Cable, PM163936 BT
Item#: PN17351 Mfr Part#: PM163936 BT Manufacturer: Pfeiffer Vacuum
Condition: Discontinued
Discontinued Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Vacuum Pump (DN 63 CF-F), MVP 015 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (CF 40), 3m Cable, PM163936 BT

Features:
  • Inlet flange: DN 63 CF-F
  • Pumping speed (N2: 65 l/s
  • Ultimate pressure: < 1 x 10-8 mbar
  • MVP 015 Diaphragm pump

This product has been discontinued and is no longer available for sale
Item#: PN17351 Mfr Part#: PM163936 BT
Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), PKR361 Gauge, MVP 015-2 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (CF 40), 3m Cable, PM163936 BT
Item#: PN17351 Mfr Part#: PM163936 BT Manufacturer: Pfeiffer Vacuum 12 months warranty

Pfeiffer Vacuum HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Vacuum Pump (DN 63 CF-F), MVP 015 Diaphragm Pump, DCU 002 Control Unit, PKR 361 Transmitter Gauge (CF 40), 3m Cable, PM163936 BT

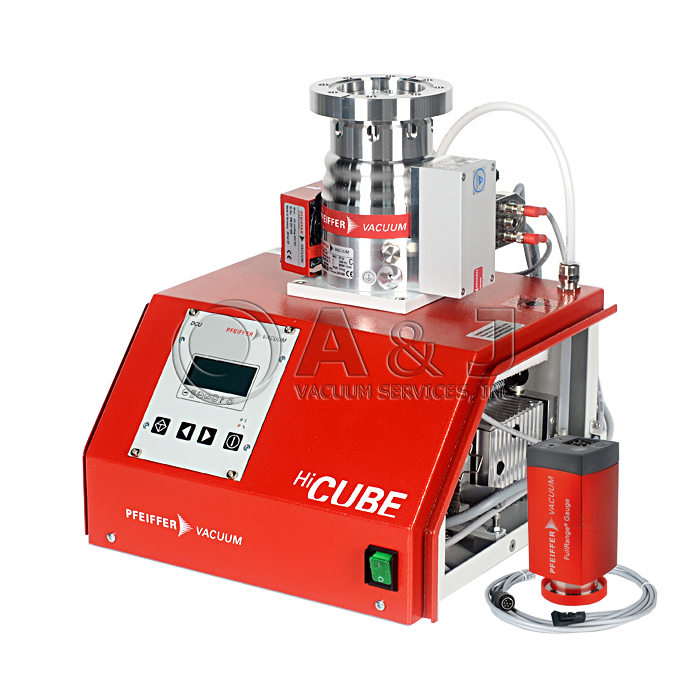

Pfeiffer HiCube 80 Eco Overview


HiCube 80 EcoPM 163 936 BT / Turbo Pumping Stations are fully automatic pump units which are ready for connection. A turbo pumping station consists of a portable vacuum pumping unit with a turbo pump and specially matched backing pump.

The Pfeiffer HiCube80 Eco / PM163936 BT is equipped with the DCU 002 control unit to monitor the pumping station. The DCU can be detached from the station and used together with a connection M12 cable as a remote control.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.

PM163936BT is the latest revision in the HiCube Eco series after PM163936 AT.



HiCube 80 Eco / PM 163 936 BT / Features:


  • Compact pumping station for all high vacuum applications.
  • Air cooled and ready for operation with HiPace 80 and MVP 015 dry diaphragm backing pump
  • DN 63 CF-F
  • DCU 002 Control Unit
  • 90-132 V AC, 50/60 Hz ; 185-265 V AC, 50/60 Hz

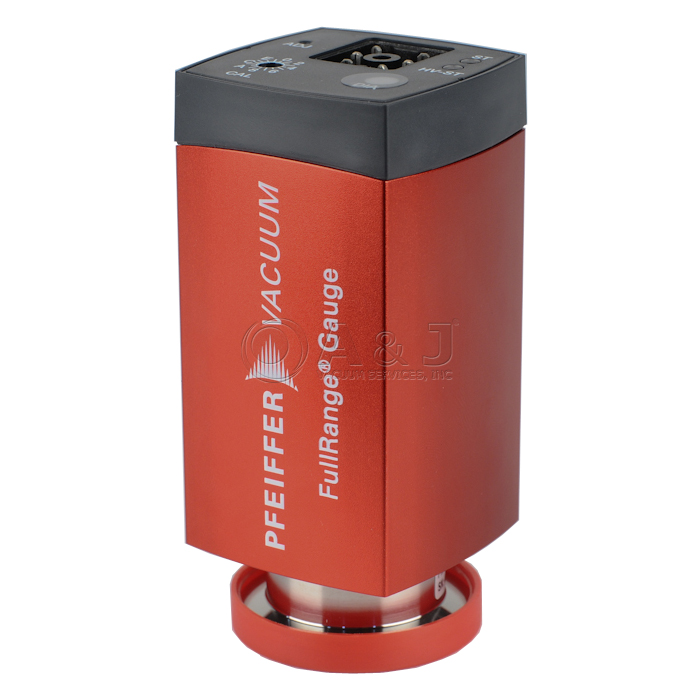

  • PKR 361 Transmitter Gauge (DN-40 CF-F), 3m Cable Included



Pfeiffer HiCube 80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum Process Technology
  • Research, Development and Scientific
  • Particle Accelerators
  • Electron-Beam Welding
  • Solar Energy



Pfeiffer HiCube 80 Dimensions:


Pfeiffer HiCube 80 Dimensions, PMS03555



Pfeiffer PKR 361 Dimensions:


Pfeiffer PKR 361 Dimensions, PT T02 350 011


Click Here for Pfeiffer HiCube 80 Turbo Pump Station Manual

Click Here for Pfeiffer HiPace 80 Turbo Pump Manual

Click Here for Pfeiffer MVP 015-2 Diaphragm Pump Manual

Click Here for Pfeiffer PKR 361 Gauge Manual
