The Leybold Ultratest UL200 is a helium leak detector. This Instrument may be used to locate and quantify leaks in test samples.

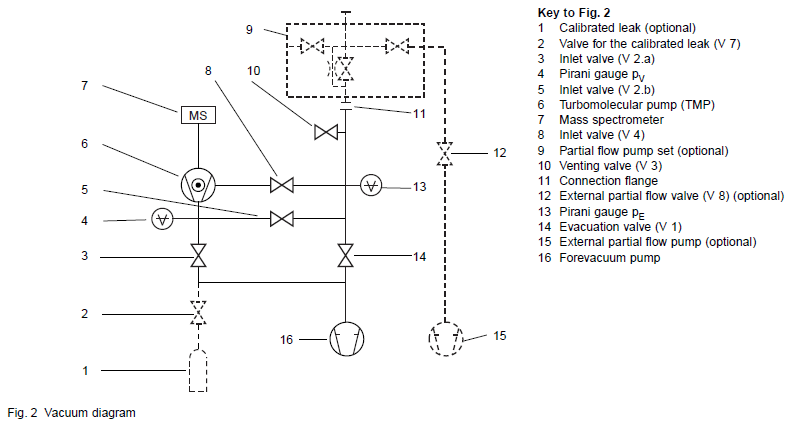

The UL 200 is capable of detecting and quantifying helium test gas flowing into a test sample having a leak by means of selective mass spectometer. It's operation is based on the counter flow principle, i.e. inflowing helium diffuses against the gas flow being pumped by the turbomolecular pump into the mass spectometerwhereas heavier gases are held back.
The Leybold Trivac 2.5 Backing Pump generates the forepressure required for operation of the turbomolecular pump.
A&J Vacuum Services offers full repair/service of Leybold UL 200, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Lowest detectable helium leak rate; |
Vacuum Mode <5-10-11 mbar l/s-1 |
Lowest detectable helium leak rate; |
Sniffer Mode <1-10-7 mbar l/s-1 |
Measurment range | 9 decades |
Detectable masses | 2, 3and 4 |
Mass Spectometer | 180* sector field |
Ion Source | 2 cathodes; iridium / yttrium |
Max. inlet pressure | 3 mbar |
Pumping Speed at the inlet | S <1 l/s-1 Fine |
Test Port | DN-25-KF |
Main Voltage (fixed) | 110-120 V 60 Hz |
A&J Vacuum Services offers full repair/service of Leybold UL 200, along with all other brands of helium leak detectors offered on our website. AJVS also services Pfeiffer turbo pumps and rotary vane pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
