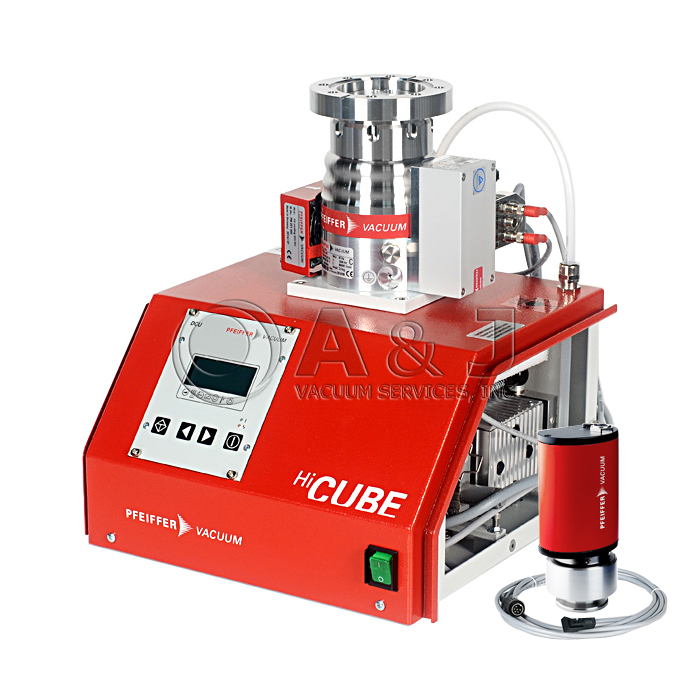

Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MPT200AR Gauge (DN 40 CF-F), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM 183 255-T / PM183255-T / 2000017267
Item#: PN20188 Mfr Part#: PM 183 255-T / PM183255-T / 2000017267 Manufacturer: Pfeiffer Vacuum
Condition: Discontinued
Discontinued Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MPT200AR Gauge (DN 40 CF-F), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM 183 255-T / PM183255-T / 2000017267

Features:
  • Inlet flange: DN 63 CF-F
  • Pumping speed : 67 l/s
  • Ultimate pressure: < 1 x 10-7 mbar
  • MVP 015 Diaphragm pump

This product has been discontinued and is no longer available for sale
Item#: PN20188 Mfr Part#: PM 183 255-T / PM183255-T / 2000017267
Pfeiffer HiCube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MPT200AR Gauge (DN 40 CF-F), MVP 015 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM 183 255-T / PM183255-T / 2000017267
Item#: PN20188 Mfr Part#: PM 183 255-T / PM183255-T / 2000017267 Manufacturer: Pfeiffer Vacuum 12 months warranty

Pfeiffer Hicube 80 Eco Turbo Pumping Station, Includes HiPace 80 Turbo Pump (DN 63 CF-F), MPT200AR Gauge (DN 40 CF-F), MVP 015 PKT05100 Diaphragm Vacuum Pump and DCU 002 Control Unit, PM 183 255-T / PM183255-T / 2000017267, PFEIFFER HICUBE80 ECO Gauge Package



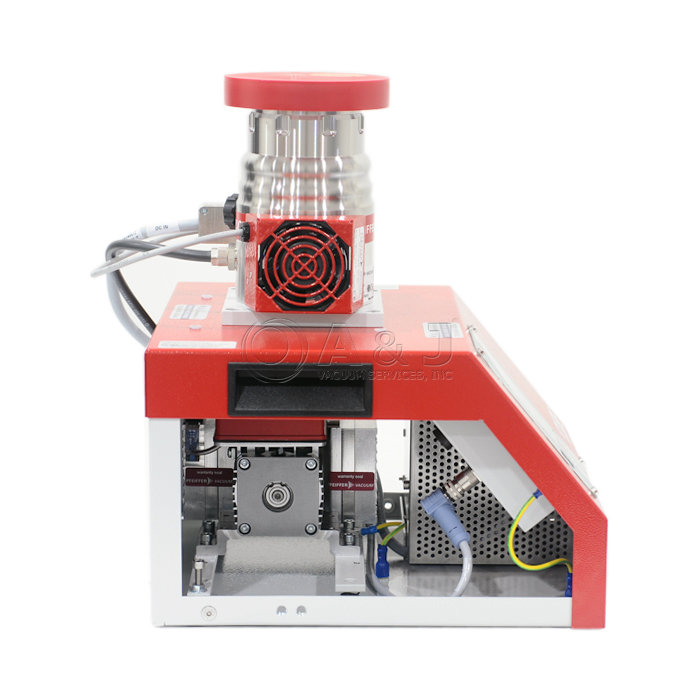

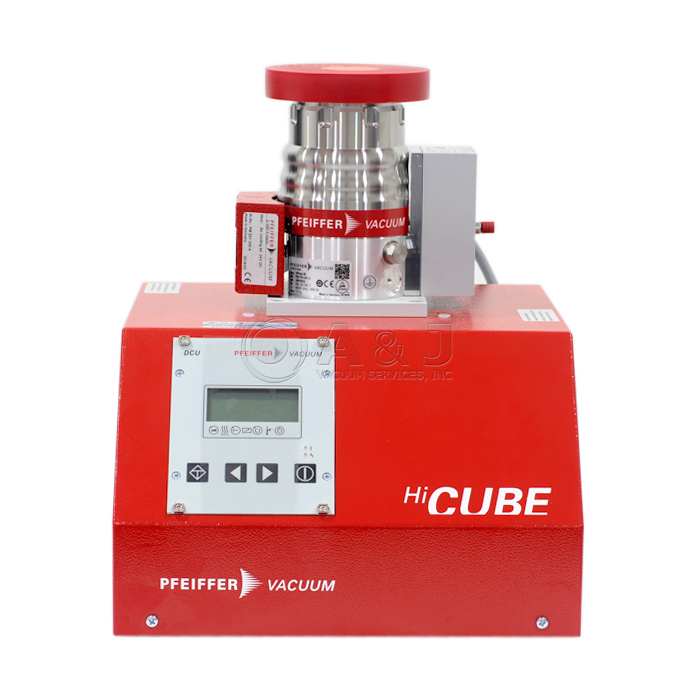

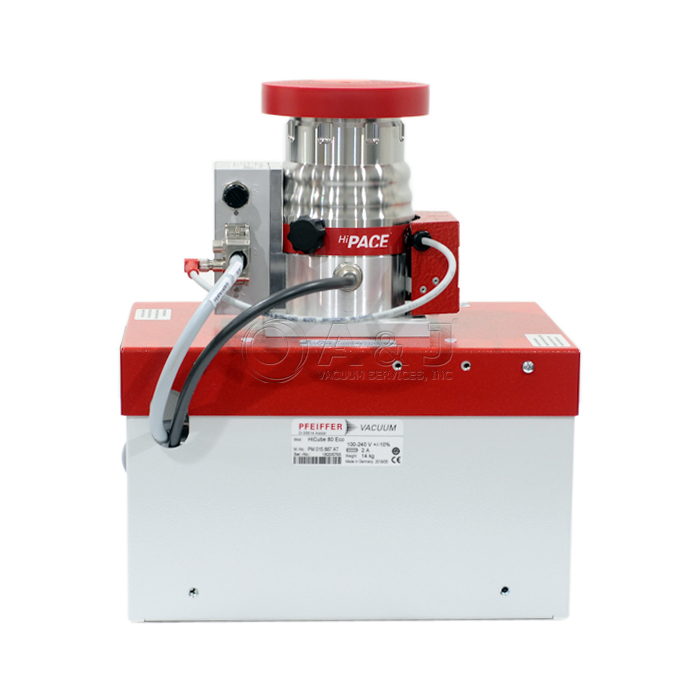

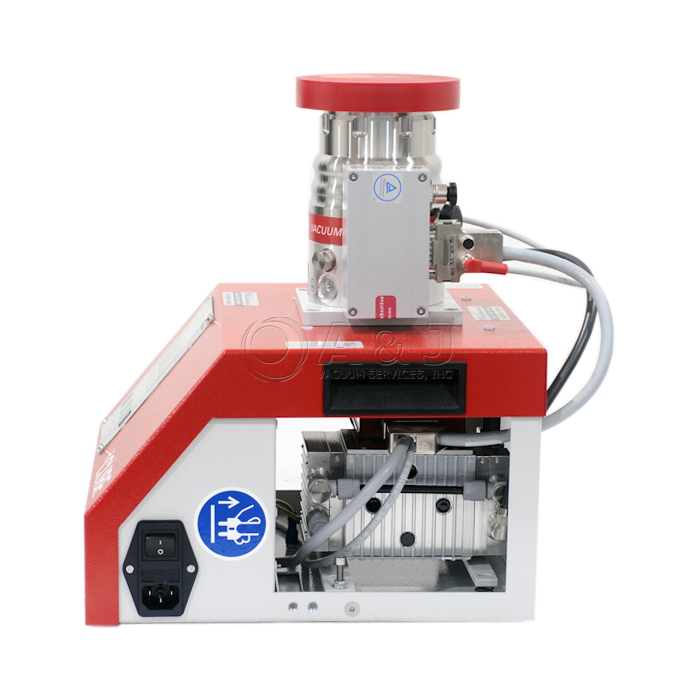

Pfeiffer HiCube 80 Eco Overview


The Pfeiffer Vacuum HiCube80 Eco Turbo Pumping Station is the trully portable and bench top pumping unit for many of the High Vacuum Applications. CF-F Inlet Flange makes this system trully Ultra High Vacuum (UHV).

The Hicube 80 Station has a modern design with the latest turbo pump and electronics technology.

What’s so special about the HiCube vacuum solution: The combination of a turbopump from the HiPace series and a backing pump designed for the user’s specific application needs. We offer you the HiCube in Pro and Classic versions; available with dry compressing or oil-sealed backing pump and an ultimate pressure of up to 5 · 10-10 hPa.

The HiCube Eco turbo pumping station is distinguished by its modular construction. Thanks to the many possibilities of combining different turbopumps and backing pumps, the HiCube Eco can be configured to meet the requirements of all applications in high and ultra-high vacuums. In addition, all HiCube Eco pumping stations feature connectivity for digital pressure sensors.



Hicube 80 Eco Gauge Package Features:


  • Compact series of pumping stations for all high vacuum applications
  • Included MPT200AR Vacuum Gauge with DN 40 CF-F / PTR40150 with Measurement Range From 5 x 10-9 to 1000 hPa
  • Ultimate Pressure: < 1 x 10-7 hPa
  • Pumping Speed for N2: 67 l/s
  • Air-cooled and ready for operation with HiPace 80 Turbo Pump and MVP 015 Dry Diaphragm Backing Pump
  • Pfeiffer HiCube 80 Eco comes with DN 63 CF-F Conflat inlet flange
  • DCU 002 Control Unit
  • Pfieffer HiCube 80 Eco voltage requirement 90-132 V AC, 50/60 Hz; 185-265 V AC, 50/60 Hz
  • Pumping Station Components: HiPace 80, MVP 015-2, TPS 110, DCU 002



Typical High Vacuum Hicube80 Eco Applications:


  • Analytical
  • Leak Detection
  • Vacuum process technology
  • Research, Development and Scientific
  • Particle accelerators
  • Electron-beam welding
  • Solar Energy



Pfeiffer HiCube 80 Dimensions:

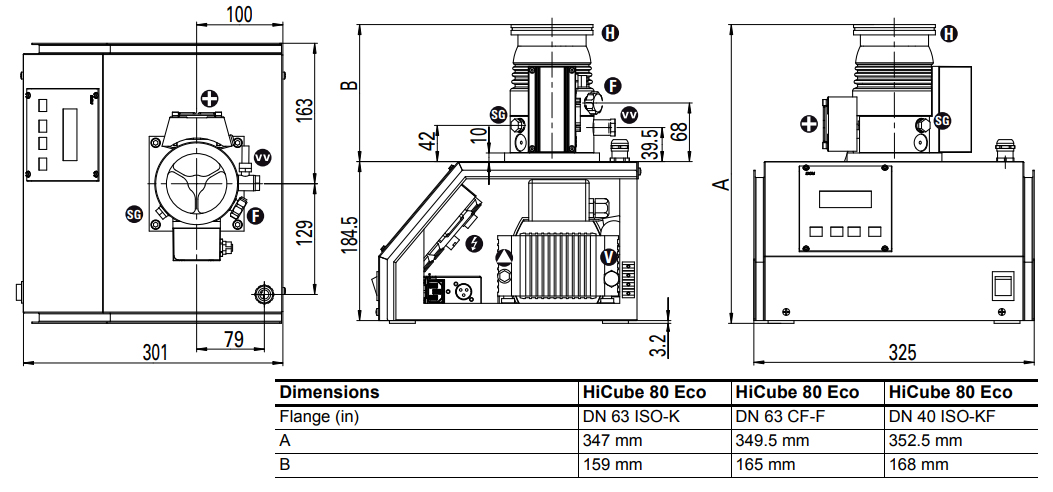

Pfeiffer HiCube 80 Dimensions, PMS03555

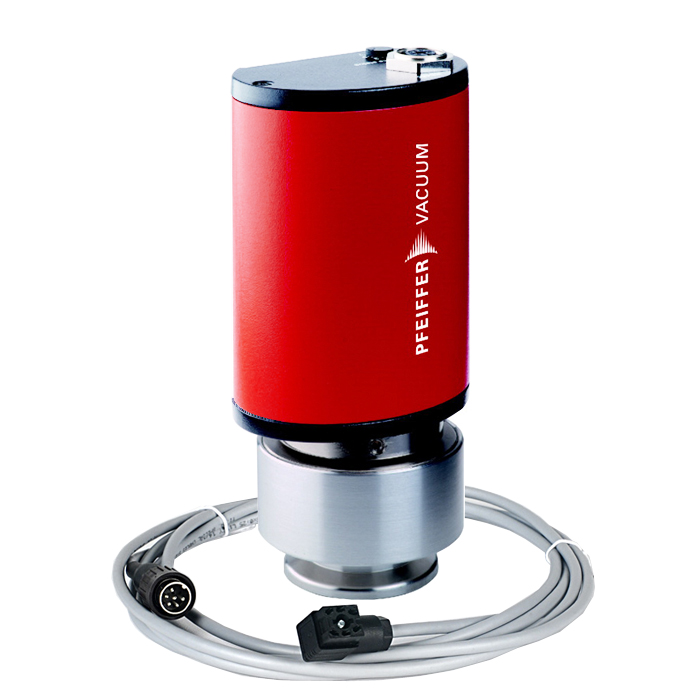

Pfeiffer MPT 200 Dimensions:


Pfeiffer MPT 200, PT R40 353, PTR40353 Dimensions


Click Here for Pfeiffer HiCube 80 Turbo Pump Station Manual

Click Here for Pfeiffer HiPace 80 Turbo Pump Manual

Click Here for Pfeiffer MVP 015-2 Diaphragm Pump Manual

Click Here for Pfeiffer MPT 200 Gauge Manual
