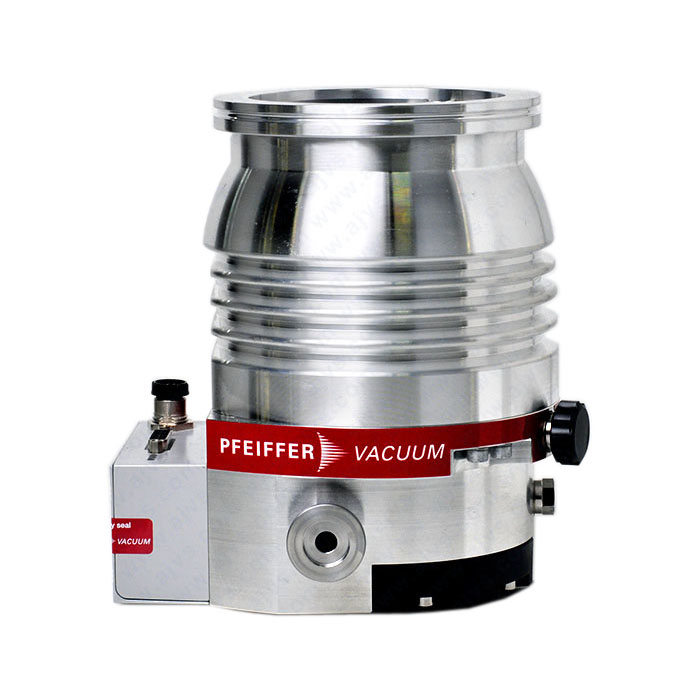

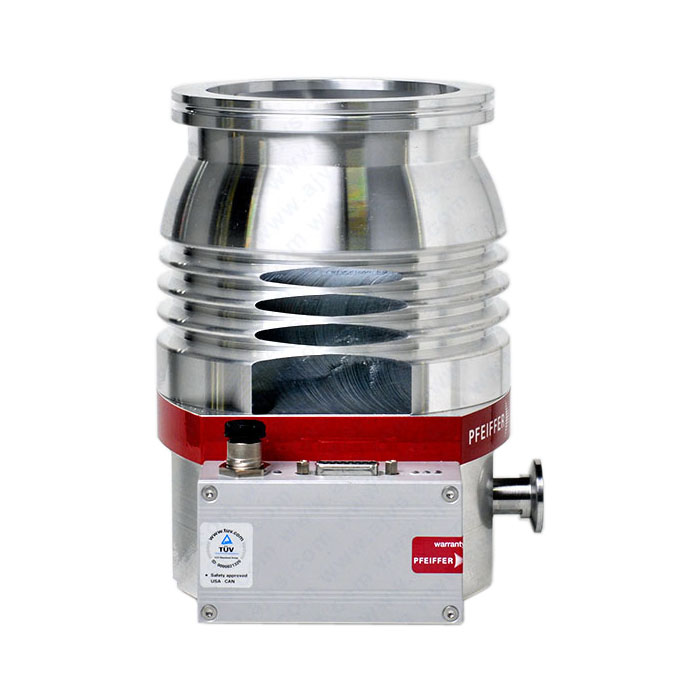

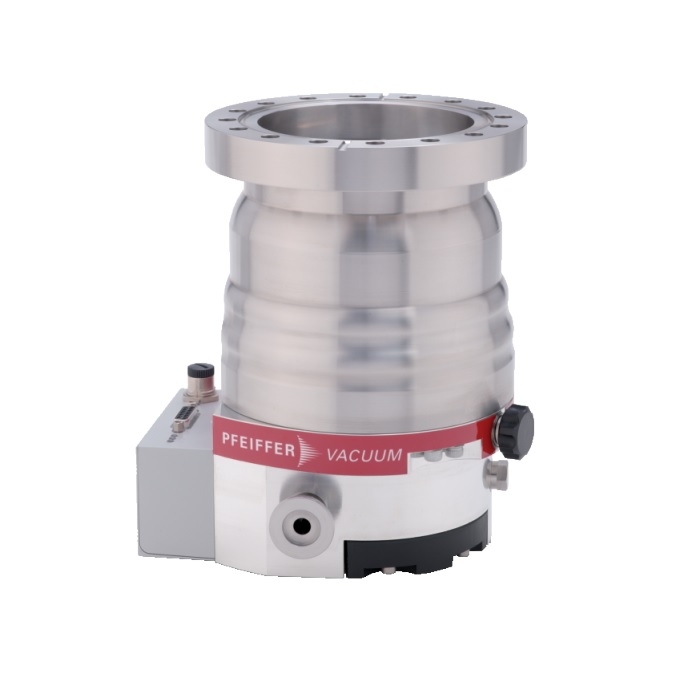

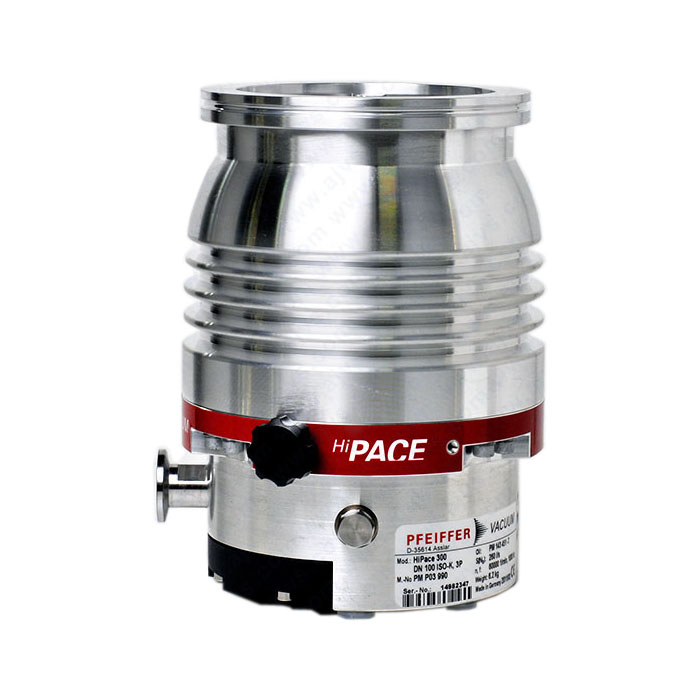

Pfeiffer HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000015712 / PM P03 981 C / PMP03981C
Pfeiffer HiPace 300 Plus Turbo Pump Features:
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Integrated drive electronics TC110
- Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
- For installation in any orientation
- With integrated water cooling for maximum gas throughput
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
- Insensitive to dust
HiPace 300 Plus Turbo Pump / PM P03 981 Overview:
The Pfeiffer HiPace 300 Plus PMP03981 100 CF-F is a complete line of compact yet powerful Pfeiffer turbo pumps featuring pumping speed of 245 l/s N2. These Hipace 300 plus models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The Pfeiffer Hipace 300 Plus Turbo Pump proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
This HiPace 300 Plus Turbo Pump comes with a TC-110 Controller.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 plus Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000015712 / PM P03 981 C / PMP03981C

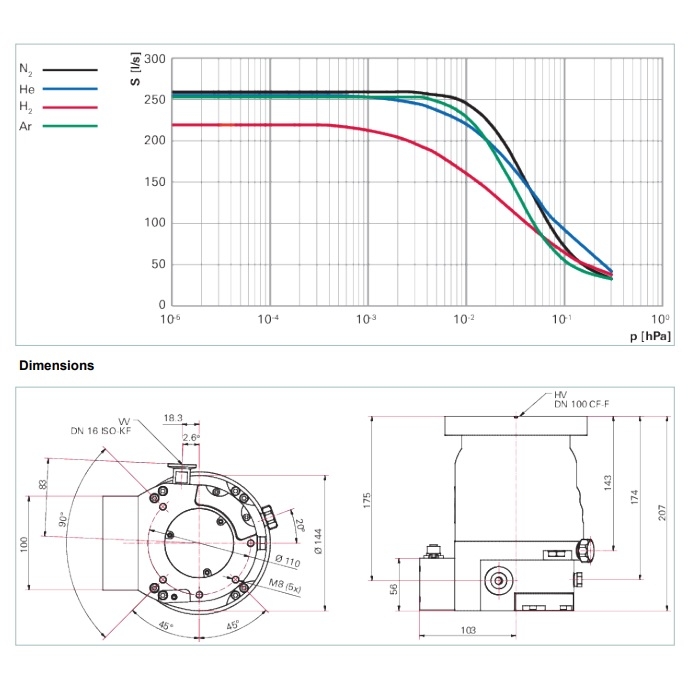

Pfeiffer HiPace 300 Plus Turbo Pump Technical Data:
| Bearing | Hybrid |
| Compression ratio for Ar | > 1 · 1011 |
| Compression ratio for H2 | 9 · 105 |
| Compression ratio for He | > 1· 108 |
| Compression ratio for N2 | > 1 · 1011 |
| Connection flange | DN 100 CF-F / DN 16 ISO-KF | G 1/4" Thread |
| Connection flange (in) | DN 100 CF-F |
| Connection flange (out) | DN 16 ISO-KF | G ¼" |
| Cooling method | Natural convection |
| Cooling method, optional |
Water |
| Cooling water flow | 50 l/h |
| Cooling water temperature | 15 – 35 °C | 59 – 95 °F | 288.15 – 308.15 K |
| Current, max. | 7.5 A |
| Electronic drive unit | TC 110 |
| Emission sound pressure level (EN ISO 2151) | ≤50 dB(A) |
| Fore-vacuum max. for N2 | 15 hPa | 11.25 Torr | 15 mbar |
| Gas throughput at final rotational speed for Ar | 2 hPa·l/s |
| Gas throughput at final rotational speed for H2 | > 14 hPa·l/s |
| Gas throughput at final rotational speed for He | 8 hPa·l/s |
| Gas throughput at final rotational speed for N2 | 5 hPa·l/s |
| I/O interfaces | RS-485, Remote |
| Input voltage(s) | 24 V DC (±10 %) |
| Integral leak rate | < 1 · 10-8 Pa m³/s | < 7.5 · 10-8 Torr l/s | < 1 · 10-7 mbar l/s |
| Interfaces, extended | Profibus DeviceNet E74 |
| Low oscillation | Yes |
| Mounting orientation | 0° (HV flange top) |
| Permissible radial magnetic field max. | 5.5 mT |
| Position of power supply pack | External power supply pack |
| Power consumption max. | 180 W |
| Protection degree | IP44 Type 12 |
| Pumping principle | Dry |
| Pumping speed | 792 – 936 m³/h | 466.17 – 550.93 cfm | 13,200.03 – 15,600.03 l/min |
| Pumping speed for Ar | 255 l/s |
| Pumping speed for H2 | 220 l/s |
| Pumping speed for He | 255 l/s |
| Pumping speed for N2 | 260 l/s |
| Rotation speed variable | 35 – 100 % |
| Rotation speed ± 2 % | 60000 rpm | 60,000 min-1 |
| Run-up time | 3.5 min |
| Type of electronic drive unit installation | Integrated electronic drive unit |
| Ultimate pressure | < 5 · 10-10 hPa | < 3.75 · 10-10 Torr | < 5 · 10-10 mbar |
| Venting connection | G 1/8" |
| Weight | 7.8 kg | 17.2 lb |
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 Plus PMP03898 Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer_Vacuum_HiPace_300_Plus_Turbo_Pump_Operating_Instructions
Pfeiffer Hipace 300 Plus Data sheet PMP03981
Pfeiffer_Vacuum_HiPace_300_Turbo_Pump_Operating_Instructions
Pfeiffer_Vacuum_TC110_Turbo_Pump_Controller
Pfeiffer_HiPace_300Plus_Manuals.pdf
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
Overview
Pfeiffer HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 CF-F, 2000015712 / PM P03 981 C / PMP03981C
Pfeiffer HiPace 300 Plus Turbo Pump Features:
- Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
- Integrated drive electronics TC110
- Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
- For installation in any orientation
- With integrated water cooling for maximum gas throughput
- Flexible through the ability to employ up to 4 accessories
- Ideal for fast cycles
- Extensive accessories expand the range of applications
- Insensitive to dust
HiPace 300 Plus Turbo Pump / PM P03 981 Overview:
The Pfeiffer HiPace 300 Plus PMP03981 100 CF-F is a complete line of compact yet powerful Pfeiffer turbo pumps featuring pumping speed of 245 l/s N2. These Hipace 300 plus models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
The Pfeiffer Hipace 300 Plus Turbo Pump proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.
This HiPace 300 Plus Turbo Pump comes with a TC-110 Controller.
A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum Hipace 300 plus Turbo Pumps along with all other Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
