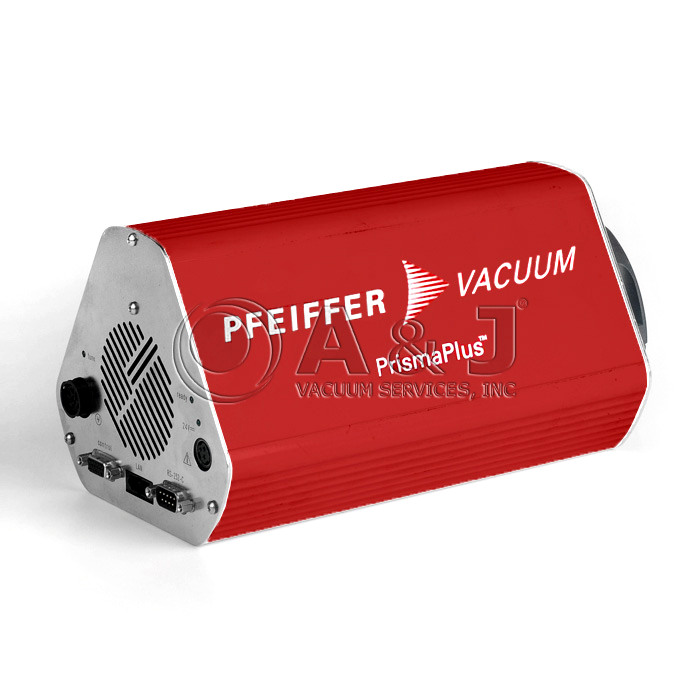

Pfeiffer QMG 220 Prisma Plus Compact Mass Spectrometer System, 1-100 amu, Open Ion Source, PT M05 111 110
Condition:
Discontinued
Item#:PN16010
Mfr Part#:PT M05111110
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum QMG 220 Prisma Plus Compact Mass Spectrometer System, 1-100 amu, Open Ion Source, PTM05111110
Pfeiffer QMG 220 Overview:
The PrismaPlus™ mass spectrometer is designed for partial pressure analysis at pressures < 10-4 mbar. Typical applications are measurement, monitoring and process control functions in vacuum systems.
Features:
- Quadera software for Windows XP Professional and Vista Ultimate
- Leak detection and residual gas analysis routines launces by a simple mouse-click
- Determination of gas concentrations by means of integrated matrix calculation
- Lowest detectable partial pressure: 1 x 10-12 hPa
- Ethernet networking
Pfeiffer Vacuum QMG 220 Prisma Plus Compact Mass Spectrometer System, 1-100 amu, Open Ion Source, PTM05111110
Pfeiffer QMG 220 Technical Data:
Inlet Flange: DN 40 CF-F
Mass Range: 1-100 amu
Measuring Channels: 128 pieces
Orientation: Any
Filament: Tungsten
Detection Limit: 1 x 10-12 hPa
Max Operating Pressure: 1 x 10-4
Weight: 2.4 kg / 5.3 lbs
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
