- Inlet flange: DN 40 ISO
- Flow rate (N2): 30 l/s
- Compression ratio (N2): > 109
- Fore-Vacuum pressure (N2): 14 mbar
Shopping Cart ( )

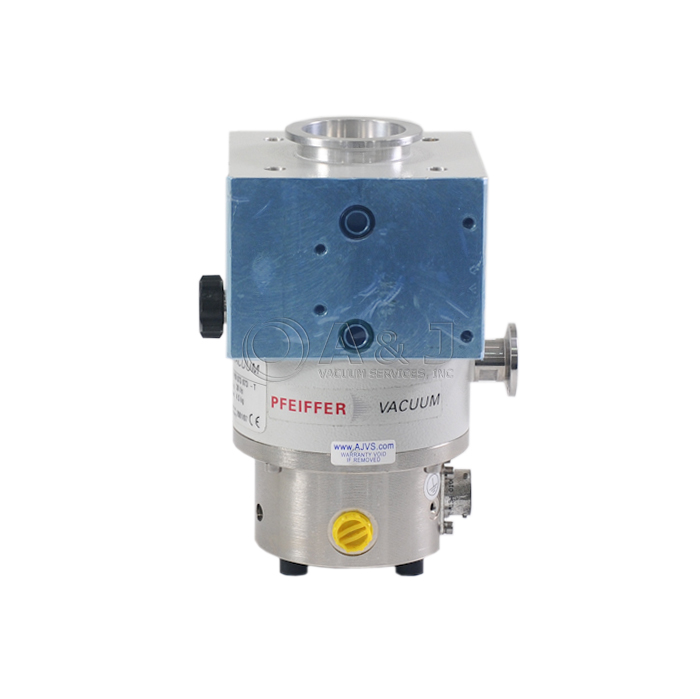

Pfeiffer TMH 063-003-002 Turbo Pump, 8 Pin Connector, DN 40 ISO, PMP02127 / PM P02 127
Condition:
Remanufactured
In Stock
Item#:PN23400
Mfr Part#:PMP02127 / PM P02 127
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer TMH 063-003-002 Turbo Pump, 8 Pin Connector, DN 40 ISO, PMP02127 / PM P02 127
TMH 063 / PM P02 127 Overview:
The Pfeiffer Vacuum TMH 063-003-002 / PM P02 127 Turbo Pump is designed for a wide range of applications in the research industry.
Pfeiffer TMH 063 has additional Purge port to allow purging of the bearing compartment.
The Pfeiffer TMH 063 003 002 / PM P02 127 and TMU models are identical in terms of their design. They only differ in their intake flange. Pfeiffer TMU 063 has a DN-40 ISO - KF Conflat Flange.
A&J Vacuum also repair / rebuild and service Pfeiffer TMH-063-003-002 / PMP02127 Turbo pumps along with all other Pfeiffer Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Pfeiffer TMH 063-003-002 Turbo Pump, 8 Pin Connector, DN 40 ISO, PMP02127 / PM P02 127

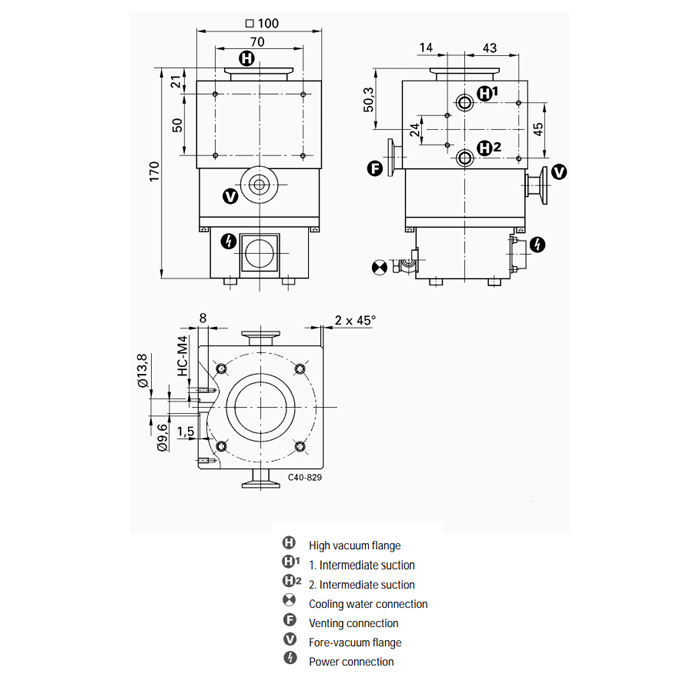

Pfeiffer TMH 063 Technical Data:
A&J Vacuum also repair / rebuild and service Pfeiffer TMH-063-003-002 / PMP02127 Turbo pumps along with all other Pfeiffer Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
Item#:PN06781
Mfr Part#:2000018622 / PM 103 593 AT / PM103593AT
Condition: In Stock
New
In Stock
$179.99
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
