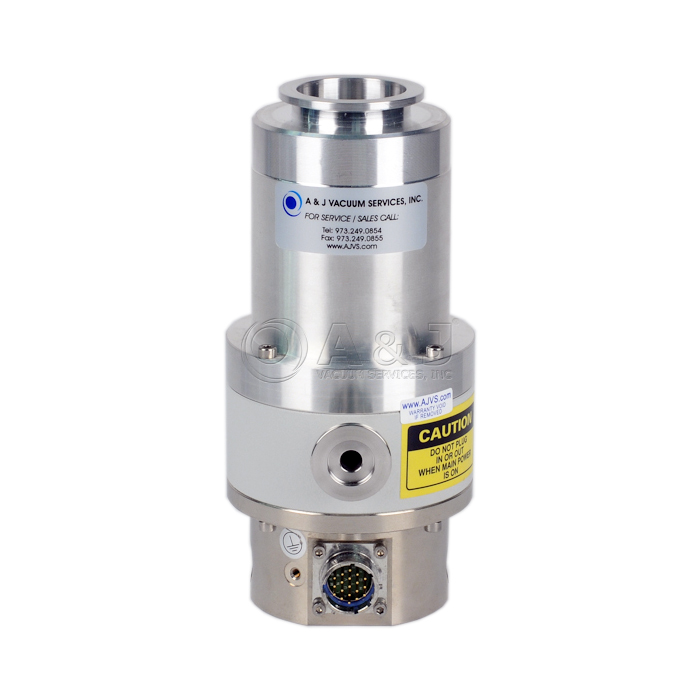

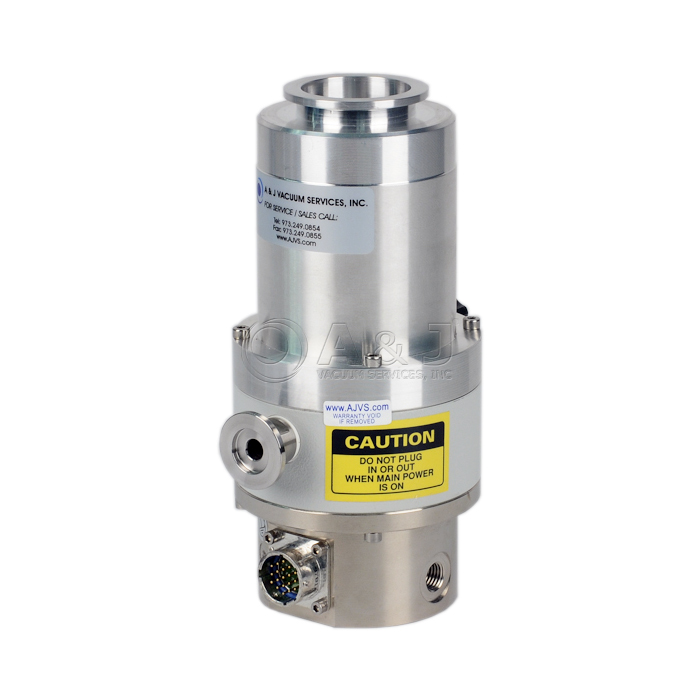

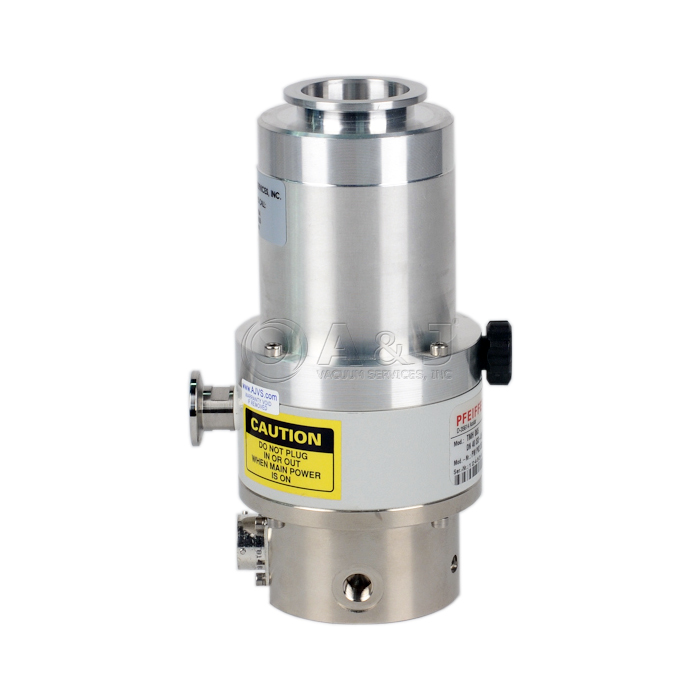

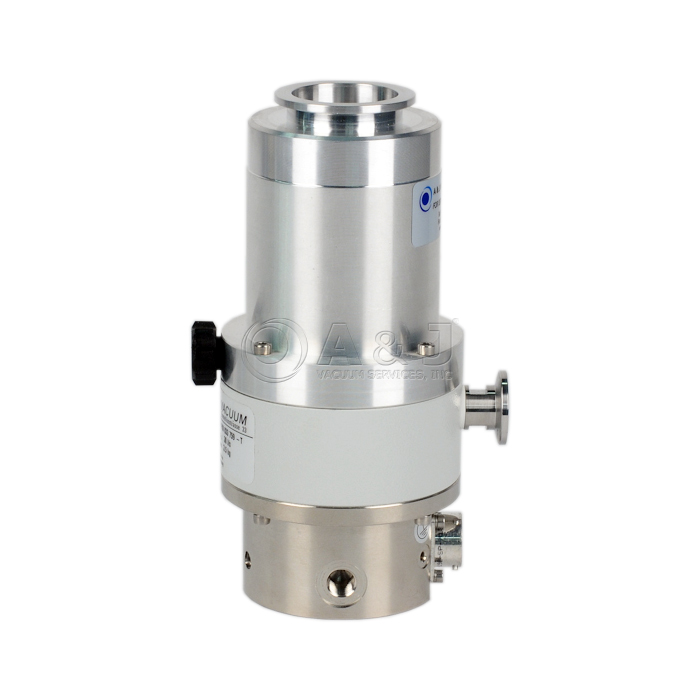

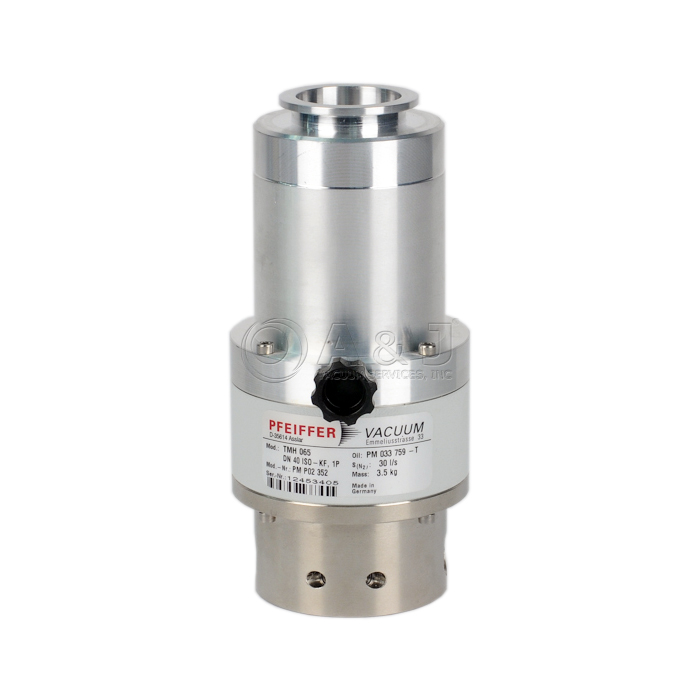

Pfeiffer TMH 065 Turbo Pump, DN 40 ISO-KF, PMP02352 / PM P02 352
Condition:
Remanufactured
Call us for Availability
Item#:PN06810
Mfr Part#:PMP02352 / PM P02 352
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer TMH 065 Turbo Pump, DN 40 ISO-KF, PMP02352 / PM P02 352
Pfeiffer TMH 065 Features:
- The pump of explosive gases or corrosive gases.
- Can be operating where there is a danger of explosion
- The pumping of gases and vapours which attack the materials of the pumps.
- Operations with improper gas modes
TMH 065 / PMP02352 Overview:
Pfeiffer TMH 065 has a DN-40 ISO-KF Conflat Flange. The Volume Flow Rate is N2: 56 l/s. Noise level Pfeiffer TMH 065 (PMP02352) is <50 dB. The weight of TMH065 is 4.7 kg.
The Pfeiffer TMH 065 Turbomolecular Drag Pump has a pumping velocity of 56 liters per second and a final pressure of 1x(10^10). It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
This TMH 065 Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
TMH065 Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum also repair / rebuild and service Pfeiffer TMH065 / PMP02352 Turbo pumps along with all other Pfeiffer Turbo pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page.
This item is non-returnable/non-refundable
Pfeiffer TMH 065 Turbo Pump, DN 40 ISO-KF, PMP02352 / PM P02 352
Pfeiffer TMH 065 Technical Data:
A&J Vacuum repair / rebuild and service all Pfeiffer TMH 065/ PM P02 352 Turbo Pumps, Pfeiffer Backing Pumps along with all other Pfeiffer Vacuum Pumps and all other Pfeiffer Leak Detector Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
AJVS_Pfeiffer_TMH_065_Turbo_Pump_Sales_and_Service.pdf
Item#:PN06781
Mfr Part#:2000018622 / PM 103 593 AT / PM103593AT
Condition: In Stock
New
In Stock
$179.99
Item#:PN00342
Mfr Part#:PMC01598
Condition: In Stock
Remanufactured
In Stock
$1,450.00
Item#:PN18047
Mfr Part#:PM031178-X
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
