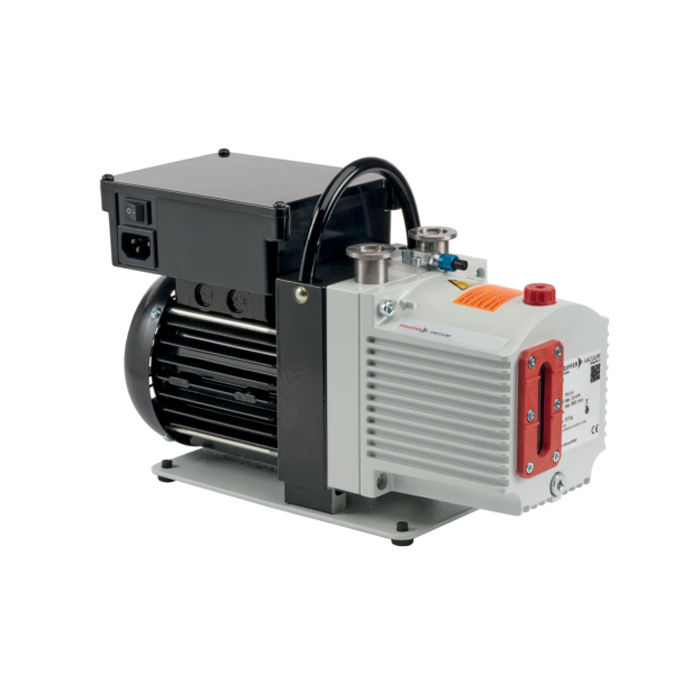

Pfeiffer Uno 6 Rotary Vane Pump, Single Phase Motor, 100 - 115/200 - 230 V, 50/60 Hz, 2000093077 / PK D070 010 C0 A / PKD070010C0A
Pfeiffer Uno 6 Features:
- Integrated GB and safety valve
- Pumping speed of 2.83 CFM at 50 Hz and 3.41 CFM at 60 Hz
- Ultimate pressure of 0.5 mbar with GB
- High performance single-stage pump
- Compact design
Uno 6 / PKD070010C0A Overview:
The rotary vane pumps are single-stage, oil-sealed, rotary positive displacement pumps designed for applications in the coarse and medium vacuum range. They are offered in a standard version with a conventional shaft seal, or as an M version featuring a non-contact, wear-free magnetic coupling drive. The pump housing is hermetically sealed.
A built-in gas ballast system allows controlled introduction of ambient air or inert gas into the suction chamber. This helps minimize condensate formation within the pumping system.
These rotary vane pumps are also equipped with a vacuum safety valve, which isolates the pump from the vacuum chamber during intentional or unintentional shutdowns. It vents the pumping system using displaced gas to prevent oil from backstreaming into the vacuum chamber. Upon startup, the valve opens after a short delay.
Accessory cable has to be ordered separately.
Uno6 Scope of Delivery:
- Rotary vane vacuum pump with motor
- Operating fluid
- Centering ring with cone sieve and O-ring for the vacuum flange
- Centering ring with nozzle and O-ring for the exhaust flange
- Locking caps for both connection flanges
- Operating instructions
Uno6 Applications:
- Research & Development
- Scientific instruments
- Medical
- Metallurgy
- Thin film coating
- Pharma and biotech
- Leak detection
A&J Vacuum Repairs / Rebuilds and Services all Pfeiffer UnoLine rotary vane pumps including all other Pfeiffer vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Uno 6 Rotary Vane Pump, Single Phase Motor, 100 - 115/200 - 230 V, 50/60 Hz, 2000093077 / PK D070 010 C0 A / PKD070010C0A
Pfeiffer Uno 6 Technical Data:
- Ambient temperature: 12 – 40 °C | 53.6 – 104 °F | 285.15 – 313.15 K
- Certification: CE, cTUVus certified according to UL / CSA 61010-1
- Connection flange (in): DN 16 ISO-KF
- Connection flange (out): DN 16 ISO-KF
- Continuous gas input temperature, max.: 40 °C | 104 °F | 313.15 K
- Cooling method: Air (Forced convection)

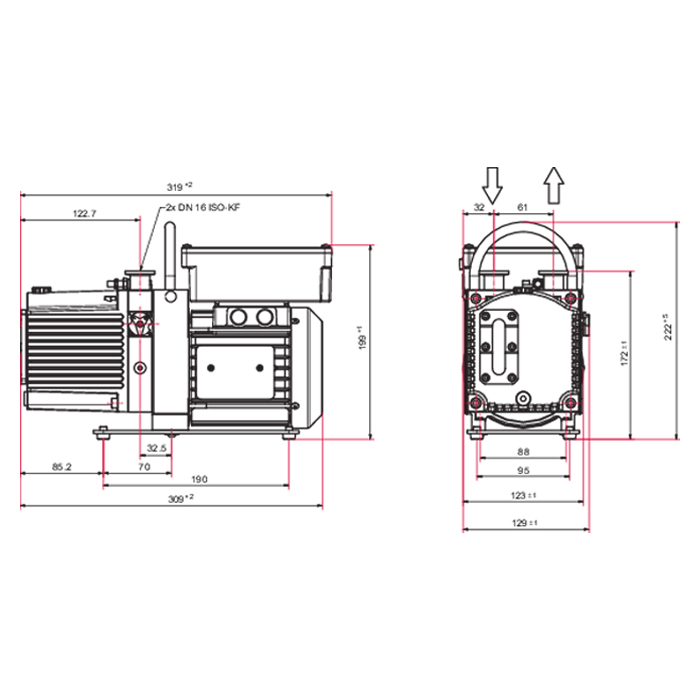

- Dimensions (L x W x H): 319 x 130 x 199 mm | 12.56 x 5.12 x 7.83 inch
- Emission sound pressure level without gas ballast at 50 Hz: 56 dB(A)
- Exhaust pressure, max.: 1500 hPa | 1,125 Torr | 1,500 mbar
- Exhaust pressure, min.: Atmospheric pressure
- Gas ballast: Yes
- Input voltage(s): 100 – 115 / 200 – 230 V AC (±5 %), 50/60 Hz
- Leakage rate safety valve: 1 · 10-5 Pa m³/s | 7.5 · 10-5 Torr l/s | 1 · 10-4 mbar l/s
- Mains cable: No, C14-plug inside the terminal box
- Mains frequency compatibility: 50 Hz | 60 Hz
- Motor protection: Bimetal
- Motor type: 1-phase motor
- Number of pumping stages: Single stage
- Operating fluid: P3
- Operating fluid amount: 0.4 l
- Protection degree: IP40
- Pumping principle: Oil-lubricated
- Pumping speed at 50 Hz: 4.8 m³/h | 2.83 cfm | 80 l/min
- Pumping speed at 60 Hz: 5.8 m³/h | 3.41 cfm | 96.67 l/min
- Rated power 50 Hz: 0.15 kW
- Rated power 60 Hz: 0.18 kW
- Recommended on-site electric fuse protection: 6 A
- Rotation speed at 50 Hz: 3000 rpm | 3,000 min-1
- Rotation speed at 60 Hz: 3600 rpm | 3,600 min-1
- Switch: Yes
- Ultimate pressure: 3 · 10-2 hPa | 2.25 · 10-2 Torr | 3 · 10-2 mbar
- Ultimate pressure with gas ballast: 5 · 10-1 hPa | 0.38 Torr | 0.5 mbar
- Weight approx.: 10.5 kg | 23.15 lb
A&J Vacuum Repairs / Rebuilds and Services all Pfeiffer UnoLine rotary vane pumps including all other Pfeiffer vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Uno 6, Uno 6 M Operation Manual
|
