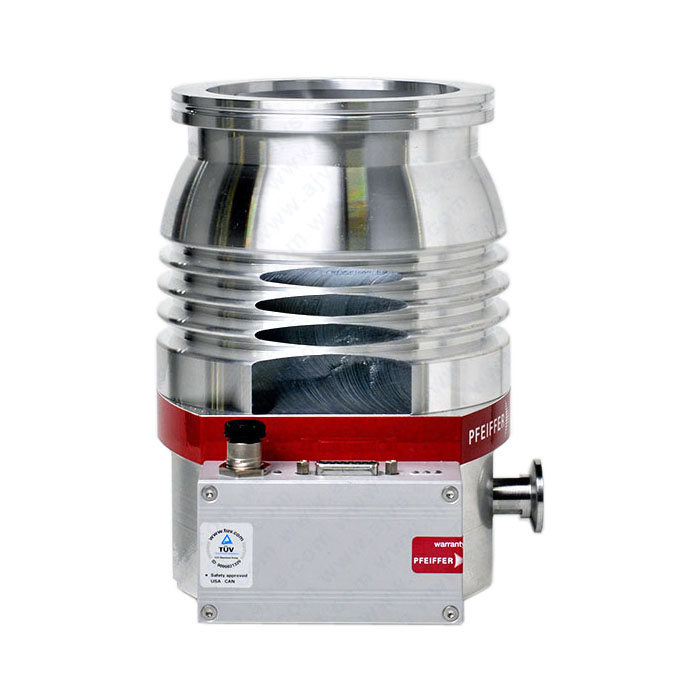

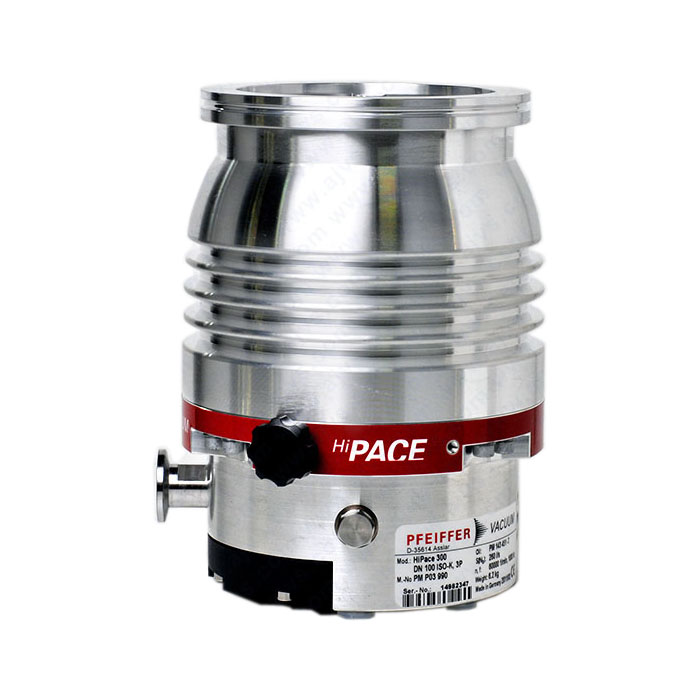

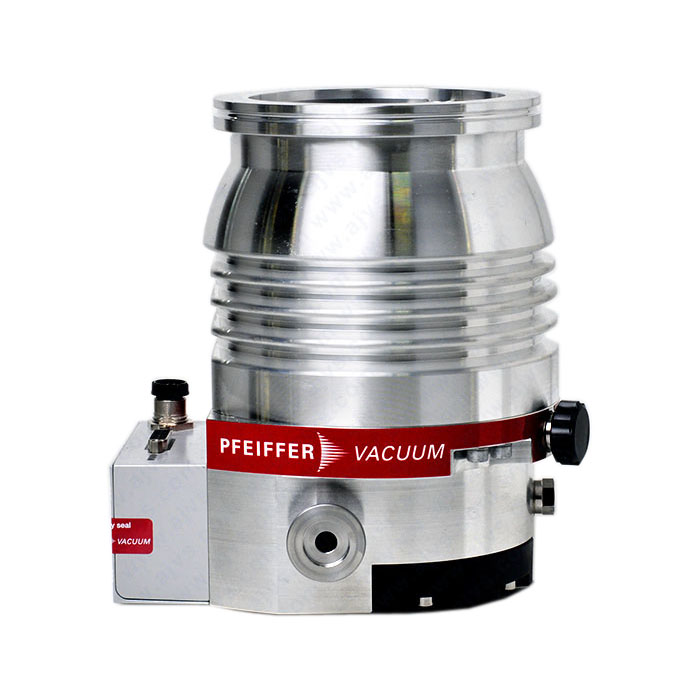

Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015708 / PM P03 980 C / PMP03980C

Main image
Image 1 Image 2 Image 3 Image 4 Image 5 Image 6
Condition: New
Item#:PN06559
Mfr Part#:2000015708 / PM P03 980 C / PMP03980C
Manufacturer:Pfeiffer Vacuum
PRICE:
$18,480.00
Web savings:
$1,680.00
YOU PAY:
$16,800.00
Request a repair estimate Request sales quote Financing available
New Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015708 / PM P03 980 C / PMP03980C
Features:
  • Flange (in) DN 100 ISO-F
  • Flange (out) DN 16 ISO-KF/G ¼"
  • Pumping speed for Ar 255 l/s
  • Ultimate pressure according to PNEUROP < 1 · 10-7 hPa | < 7.5 · 10-8Torr | < 1 · 10-7 mbar
  • Overview
  • Specifications
  • Manuals
  • MFR Brochures
  • Spare Parts
  • Accessories
  • Service & Repair
12 months warranty

Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015708 / PM P03 980 C / PMP03980C



Pfeiffer HiPace 300 Plus Turbo Pump Features:

  • Rugged, powerful turbopump with a pumping speed of up to 260 l/s for N2
  • Integrated drive electronics TC110
  • Perfect solution for coating and semiconductor processes as well as for dusty industrial applications like electron-beam welding facilities
  • For installation in any orientation
  • With integrated water cooling for maximum gas throughput
  • Flexible through the ability to employ up to 4 accessories
  • Ideal for fast cycles
  • Extensive accessories expand the range of applications
  • Insensitive to dust



HiPace 300 Plus Turbo Pump / PM P03 980 C Overview:

The Pfeiffer HiPace 300 Plus PMP03980 A 100 ISO-K is a complete line of compact yet powerful Pfeiffer turbo pumps featuring pumping speed of up to 260 l/s N2. These Hipace 300 plus models are cost-effective and offer flexible installation in any orientation. The proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

The Pfeiffer Hipace 300 Plus Turbo Pump proven bearing system provides unrivaled dependability and their sophisticated rotor design makes for higher pumping speeds, higher backing pump compatibility, higher gas throughputs and good compression for light gasses.

This HiPace 300 Plus Turbo Pump comes with a TC-110 Controller.



A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum  Hipace 300 plus Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.

This item is non-returnable/non-refundable

Pfeiffer Vacuum HiPace 300 Plus Turbo Pump with TC 110 Controller, DN 100 ISO-K, 2000015708 / PM P03 980 C / PMP03980C

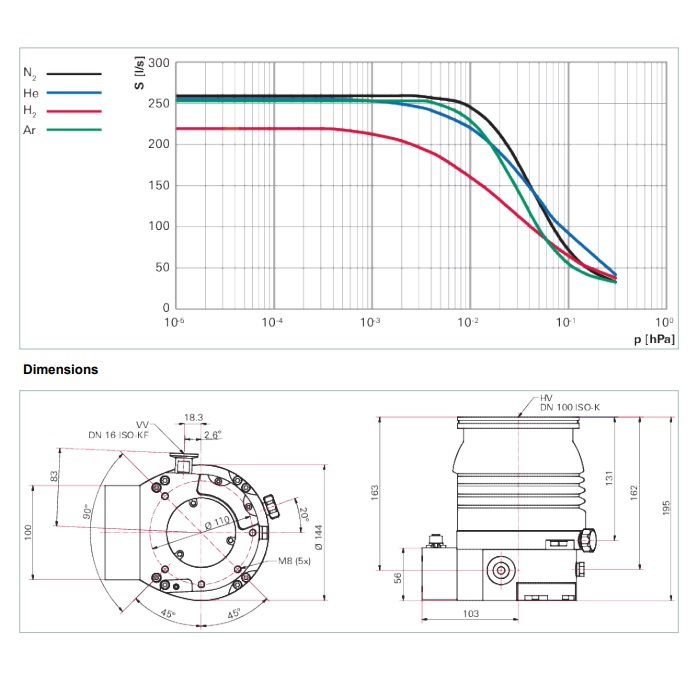

Pfeiffer HiPace 300 Plus Turbo Pump Technical Data:

Bearing Hybrid
Compression ratio for Ar > 1 · 1011
Compression ratio for H2 9 · 105
Compression ratio for He > 1· 108
Compression ratio for N2 > 1 · 1011
Connection flange DN 100 ISO-K / DN 16 ISO-KF | G 1/4" Thread
Connection flange (in) DN 100 ISO-K
Connection flange (out) DN 16 ISO-KF | G ¼"
Cooling method Natural convection
Cooling method, optional

Water
Air (forced convection)
Cooling water flow 50 l/h
Cooling water temperature 15 – 35 °C  |  59 – 95 °F |  288.15 – 308.15 K
Current, max. 7.5 A
Electronic drive unit TC 110
Emission sound pressure level (EN ISO 2151) ≤50 dB(A)
Fore-vacuum max. for N2 15 hPa |  11.25 Torr |  15 mbar
Gas throughput at final rotational speed for Ar 2 hPa·l/s
Gas throughput at final rotational speed for H2 > 14 hPa·l/s
Gas throughput at final rotational speed for He 8 hPa·l/s
Gas throughput at final rotational speed for N2 5 hPa·l/s
I/O interfaces RS-485, Remote
Input voltage(s) 24 V DC (±10 %)
Integral leak rate < 1 · 10-8 Pa m³/s |  < 7.5 · 10-8 Torr l/s |  < 1 · 10-7 mbar l/s
Interfaces, extended Profibus
DeviceNet
E74
Low oscillation Yes
Mounting orientation 0° (HV flange top)
Permissible radial magnetic field max. 5.5 mT
Position of power supply pack External power supply pack
Power consumption max. 180 W
Protection degree IP44
Type 12
Pumping principle Dry
Pumping speed 792 – 936 m³/h  |  466.17 – 550.93 cfm |  13,200.03 – 15,600.03 l/min
Pumping speed for Ar 255 l/s
Pumping speed for H2 220 l/s
Pumping speed for He 255 l/s
Pumping speed for N2 260 l/s
Rotation speed variable 35 – 100 %
Rotation speed ± 2 % 60000 rpm |  60,000 min-1
Run-up time 3.5 min
Type of electronic drive unit installation Integrated electronic drive unit
Ultimate pressure < 1 · 10-7 hPa |  < 7.5 · 10-8 Torr |  < 1 · 10-7 mbar
Venting connection G 1/8"
Weight 5.8 kg  |  12.79 lb



A&J Vacuum Repair / Rebuild and Service all Pfeiffer Vacuum  Hipace 300 Plus PMP03898 Turbo  Pumps  along with all other  Pfeiffer Turbo Pump Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
