- With 3-phase motor II 2G Ex de IIC T4
- Operating Fluid P3
- P/N PP W63 300 / PPW33000
- Pressure surge resistance according to EN 1333, PN level 16
Shopping Cart ( )

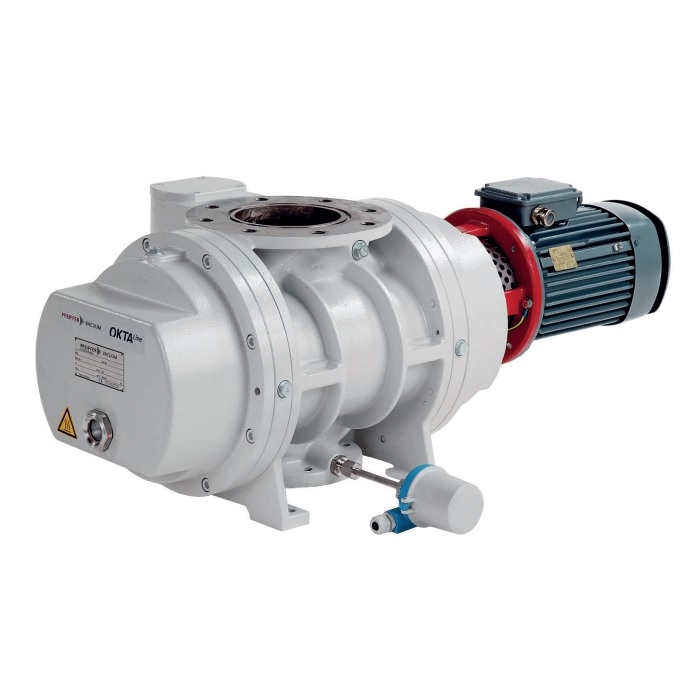

Pfeiffer Vacuum Okta 2000 ATEX Roots Vacuum Pump (Vacuum Booster) 230/400 V, 50 Hz | 265/460 V, 60 Hz | Ex II 3/3G Ex h IIB T3 Gc X +5 °C ≤ Ta ≤ +40 °C, (P3 Oil), 2000009322 / PP W63 300 B / PPW63300B
Condition:
New
Item#:PN06632
Mfr Part#:2000009322 / PP W63 300 B / PPW63300B
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum Okta 2000 ATEX Roots Vacuum Pump (Vacuum Booster) 230/400 V, 50 Hz | 265/460 V, 60 Hz | Ex II 3/3G Ex h IIB T3 Gc X +5 °C ≤ Ta ≤ +40 °C, (P3 Oil), 2000009322 / PP W63 300 B / PPW63300B
The pumping speed of our OktaLine ATEX Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.
The gear and bearing chambers in our Roots Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.
A further advantage: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of our proven Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.
The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.
- High-performance Roots Pump (Vacuum Booster) with a pumping speed of up to 2500 m3/h
- Without motor (coupling and motor lantern are included in delivery)
- Pressure-surge resistant up to 16 bar
- No thermal overload thanks to integral overflow valve
- For Atex applications (directive 94/9/EG)
- Note: For the operation of the pumps aims the terms of the operating instructions. Pfeiffer Vacuum pleased to provide you with the right solution for your application!
- Operating Fluid P3
A&J Vacuum Services Specialize with Pfeiffer Okta 2000 ATEX Repairs and Service, Repair of All Pfeiffer OKTA 2000, OKTA 2000 ATEX and WKP 2000 Repair Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum Okta 2000 ATEX Roots Vacuum Pump (Vacuum Booster) 230/400 V, 50 Hz | 265/460 V, 60 Hz | Ex II 3/3G Ex h IIB T3 Gc X +5 °C ≤ Ta ≤ +40 °C, (P3 Oil), 2000009322 / PP W63 300 B / PPW63300B
Technical Data:
| Differential pressure at the overflow valve | 35 mbar |
| Emission sound pressure level (EN ISO 2151) at intake pressure 10 mbar | 75 dB (A) |
| Emission sound pressure level (EN ISO 2151) at intake pressure 1 mbar | 72 dB (A) |
| Flange (in) | DN 150 PN 16 |
| Flange (out) | DN 100 PN 16 |
| Leak rate | 1 · 10-2 mbar l/s |
| Nominal pumping speed at 50 Hz | 2065 m3/h |
| Nominal pumping speed at 60 Hz | 2478 m3/h |
| Operating fluid filling | 5 l |
| Version | Explosion hazard protected: Zone 2, outside |
| Weight | 320 kg |
A&J Vacuum Services Specialize with Pfeiffer Okta 2000 ATEX Repairs and Service, Repair of All Pfeiffer OKTA 2000, OKTA 2000 ATEX and WKP 2000 Repair Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
