Found 3 products
Item#: PN06650 Mfr Part#: PPW31000F Manufacturer: Pfeiffer Vacuum
PRICE: $18,810.00
WEB SAVINGS: $1,710.00
YOU PAY: $17,100.00

Pfeiffer Vacuum Okta 500 A Roots Vacuum Pump (Vacuum Booster) 230/400 V, 50 Hz | 265/460 V, 60 Hz, PP W31 000 / PPW31000, OKTA500



The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 500 / PP W31 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 560 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 500 Booster Pump Delivery:

  • Roots Pump
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions



Pfeiffer Vacuum OKTA 500 Pumping Speed:





Customer benefits of Pfeiffer Okta 500 Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 500 Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 500 Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 500 Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 500 Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 500, WKP 500 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN06654 Mfr Part#: PP W32 000 F / PP W32 000 Manufacturer: Pfeiffer Vacuum
PRICE: $21,150.00
WEB SAVINGS: $1,950.00
YOU PAY: $19,200.00

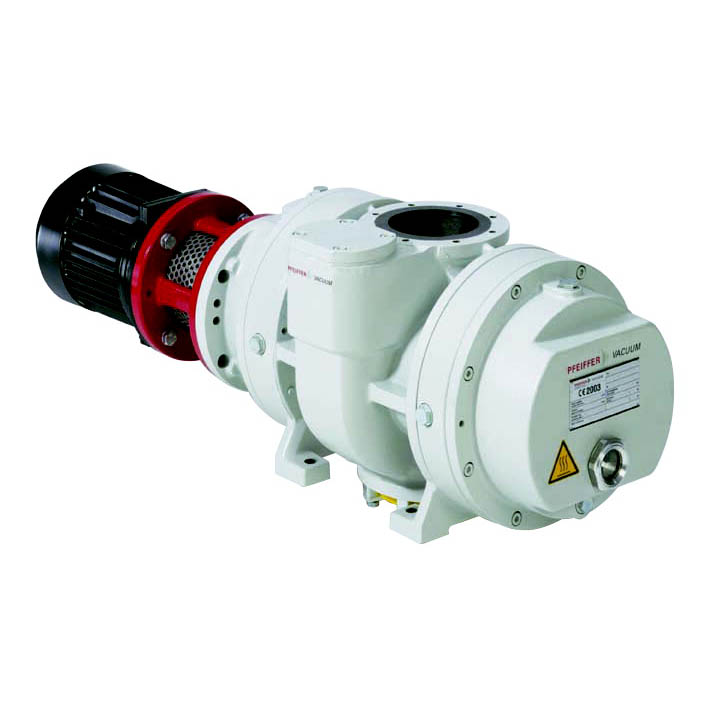

Pfeiffer Vacuum Okta 500 M (Magnetic coupling) Roots Vacuum Booster 230/400 V, 50 Hz | 265/460 V, 60 Hz, PPP W32 000 / PP W32 000, OKTA500

The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 500 / PP W31 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 560 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 500 Booster Pump Delivery:

  • Roots Pump
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions



Pfeiffer Vacuum OKTA 500 Pumping Speed:





Customer benefits of Pfeiffer Okta 500 Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 500 Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 500 Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 500 Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 500 Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 500, WKP 500 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
Item#: PN06651 Mfr Part#: PPW31001 Manufacturer: Pfeiffer Vacuum
PRICE: $17,380.00
WEB SAVINGS: $1,580.00
YOU PAY: $15,800.00

Pfeiffer Vacuum Okta 500 A Roots Vacuum Pump only (Without a Motor) PP W31 001 / PPW31001, OKTA500



The pumping speed of our Pfeiffer Okta Line Roots Pumps (Vacuum Boosters, Vacuum Blowers) ranges from 250 to 25,000 m³/h. They can be optimally employed for a wide variety of low and medium vacuum applications.



Pfeiffer OKTA 500 / PP W31 000 Key Feautures:

  • High-performance Roots Pump (Vacuum Booster) with a pumping speed of 560 m3/h
  • For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
  • No thermal overload thanks to integral overflow valve
  • For applications in the low and medium vacuum



Scope of the OKTA 500 Booster Pump Delivery:

  • Roots Pump
  • Seals for the connection flanges; for ISO flanges, centering rings are included
  • Cover disks for the connecting flanges
  • Screw kit for the connection flange
  • 2 eye bolts for lifting the roots pump
  • Lubricant P3 (standard version)
  • Motor-side coupling half for roots pumps without motor
  • Operating instructions



Pfeiffer Vacuum OKTA 500 Pumping Speed:





Customer benefits of Pfeiffer Okta 500 Roots Booster:

  • Long life due to robust, compact design
  • Short pumpdown time by high compression ratio and overflow valve
  • Maintenance free at high operating safety and maximum availability due to the optional magnetic coupling
  • Low operating costs bacause of air cooling and optional magnetic coupling
  • A cooling water unit is not required
  • Pumps available in stainless steel versions upon request
  • Energy efficient, frequenzy converter suitable standard motors

The Pfeiffer Vacuum Okta integrated overflow valve is standard in all convectioncooled pumps. This makes it possible to switch the pump on at atmospheric pressure. The pump is thus automatically protected from thermal overload. The gain in additional pumping speed allow for shorter cycle times in load lock applications and time-critical processes. Monitoring with fault-prone pressure switches and slow start up with cost-intensive frequency converters is no longer needed.

Pfeiffer Okta 500 Roots Booster typical applications:

  • Glass and foil coating
  • Plasma etching
  • Vacuum metallurgy
  • PVD and CVD
  • Space simulation
  • Vacuum drying / freeze drying
  • Steel degassing / secondary metallurgy
  • Electron beam welding

The gear and bearing chambers in Pfeiffer OKTA 500 Roots Booster Pumps (Vacuum Boosters, Vacuum Blowers) are completely separate from the gas pumping chamber. Because the rotors operate without making contact, dry operation is assured.

A further advantages of Pfeiffer OKTA 500 Booster: thanks to air cooling, operating costs are significantly lower than with water cooling. The design principle of Pfeiffer Okta WKP 500 Roots Pumps (Vacuum Boosters, Vacuum Blowers) has been expanded to include magnetic couplings. Thanks to these hermetically sealed pumps we very low leak rates. We have developed special pumps that meet the highest explosion protection requirements for processes that take place in explosive environments or for evacuating explosive gases.

The portfolio includes both standard pumping stations from the CombiLine series as well as customer-specific system solutions in combination with various backing pumps, such as rotary vane, screw or rotary piston pumps.

The high-precision production technology of Pfeiffer Vacuum OKTA 500 Roots pumps makes it possible to achieve very high compression values, which in turn allows for maximum pumping speed at very low gas exit temperatures. Pfeiffer Vacuum Roots pumps offer low operating costs at high uptime, since electrical power and (depending on the process) a gaseous purge medium (e.g. air) are all that they require. A high cost water-cooling unit is not required. The magnetic coupled version makes leaks at the shaft feedthrough an issue of the past.

Used in combination with other Roots pumps or appropriate backing pumps, Roots pumps can be adapted perfectly to any application. Pfeiffer Vacuum is the leading supplier of vacuum solutions has more than 50 years of experience in the design of customer-specific vacuum pumpiing systems solutions.



A&J Vacuum Services Repairs and Service Pfeiffer OKTA 500, WKP 500 Roots Booster Series Pumps, along with all other Pfeiffer Vacuum and Turbo Pumps available on our website. Please contact us for additional information concerning our service program or click http://www.ajvs.com/service.php to access our Services page. We likewise offer emergency service and repair upon request. For more information, please contact A&J Vacuum Services at (973) 249-0854. Thank you for choosing AJVS as your supplier.


Condition: New
