Pfeiffer Vacuum TPG 262 Dual Gauge, TPR 280, (KF-16), PKR 251 (KF-25) PT441948-T, Pressure Measurement System
Condition:
Discontinued
Item#:PN06929
Mfr Part#:PT441948-T
Manufacturer:Pfeiffer Vacuum
This product has been discontinued and is no longer available for sale
VIEW REPLACEMENT
Features:
Pfeiffer Vacuum TPG 262 Dual Gauge, TPR 280, (KF-16), PKR 251 (KF-25) PT441948-T, Pressure Measurement System

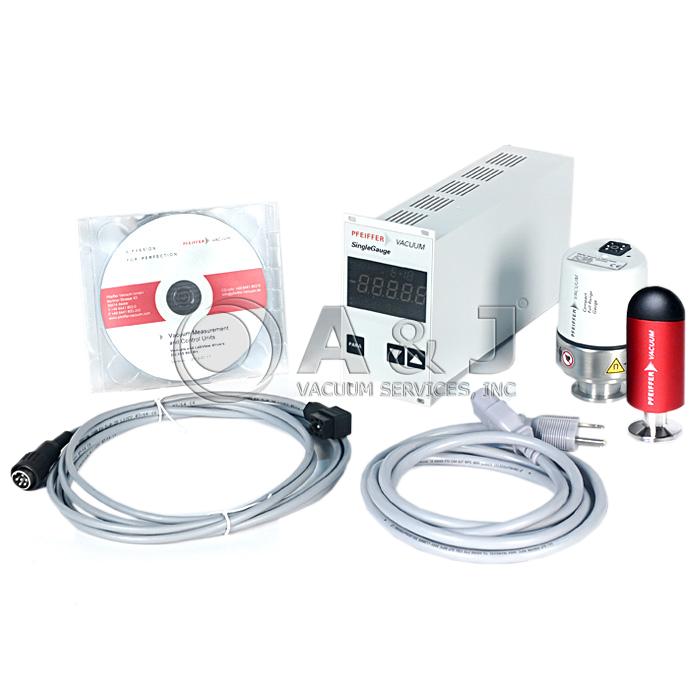

Included:
- SingleGauge measurement unit TPG 262
- Transmitter TPR 280
- Transmitter PKR 251
- 2x Cable Length: 3 m
Pressure Measuring System, TPG 262 Dual Gauge controller combined with one (1) TPR 280 (KF-16) compact pirani gauge and one (1) PKR 251 (KF-25) compact cold cathode gauge and two 3 meter cables for measurement from 1000 to 2x10-mbar with 2 relays, 90-250V, 50-60 Hz.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Pfeiffer Vacuum TPG 262 Dual Gauge, TPR 280, (KF-16), PKR 251 (KF-25) PT441948-T, Pressure Measurement System

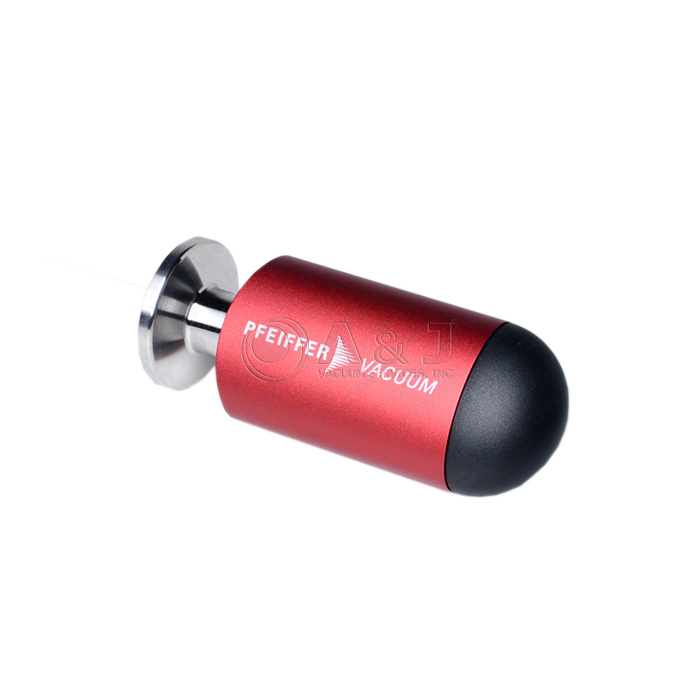

Technical Data TPR 280:
| Accuracy: 1 * 10^(-3) to 100 hPa | ± 15 % |
| Ambient Temperature | 5-60 °C | 41-140 °F | 278-333 K |
| Bakeout Temperature at Flange | 80 °C | 176 °F | 353 K |
| Feature | Stainless Steel, Metal Sealed |
| Feedthrough | Glass |
| Filament | Tungsten |
| Flange Material | Stainless Steel |
| Measurement Range | 5 · 10-4 – 1 · 103 hPa |
| Nominal Diameter | DN 16 ISO-KF |
| Output Signal: Measurement Range | 2.2–8.5 V |
| Output Signal: Minimum Load | 10 kΩ |
| Pressure - Maximum: | 10,000 hPa | 7,500 Torr | 10,000 mbar |
| Protection Category | IP40 |
| Repeatability: 1 * 10^(-3) to 100 hPa | ± 2 % |
| Resolution | 1 % of Reading |
| Response Time | 80 ms |
| Seal | Metal |
| Sensor Cable Length (min.) | 200 m |
| Supply: Power Consumption (max.) | ≤ 1 W |
| Supply: Voltage V DC | 14 – 30 V DC |
| Temperature: Storage | -20-65 °C | -4-149 °F | 253-338 K |
| Volume | 1.5 cm³ |
| Weight | 80 g |

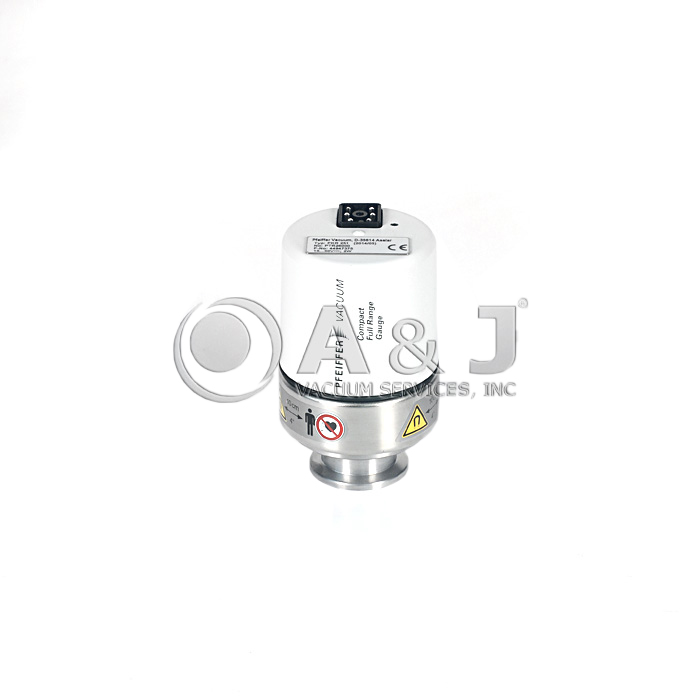

Technical Data PKR 251:
| Accuracy: 10-8 - 102 mbar | ± 30 % |
| Bakeout temperature | 150 °C, electronic removed |
| Feature | Interior FPM sealed |
| Feedthrough | Al2O3, Glass |
| Filament | Tungsten |
| Filament | Molybdenum |
| Flange | Stainless steel |
| Flange (in) | DN 25 ISO-KF |
| Measurement range max. | 1000 mbar |
| Measurement range min. | 5 · 10-9 mbar |
| Output signal: Minimum load | 10 kΩ |
| Output signal: Pressure range | 1.8 - 8.6 V |
| Output signal: Sensor error above | 9.5 V |
| Output signal: Sensor error below | 0.5 V |
| Pressure max. | 10 bar |
| Repeatability: 10-8 - 102 mbar | ± 5 % |
| Seal | FPM |
| Sensor cable length | 300 m |
| Supply: Power consumption max. | 2 W |
| Supply: Voltage | 15-30 V DC |
| Temperature: Operating | 5-55 °C |
| Temperature: Storage | -40- °C |
| Volume | 20 cm3 |
| Weight | 700 g |
Manual_Instructions_TPR280_TPR281_Pirani_Gauge.pdf
Manual_Instructions_PKR251_Pirani_Cold_Cathode_Gauge.pdf
