Pfeiffer Vacuum TPG 361 Single Gauge, PKR 361 DN 25 ISO-K , PT 446 004-T / PT446004-T, Pressure Measurement System
Condition:
New
Item#:PN20780
Mfr Part#:PT 446 004-T / PT446004-T
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPG 361 Single Gauge, PKR 361 DN 25 ISO-K, PT 446 004 / PT446004-T, Pressure Measurement System

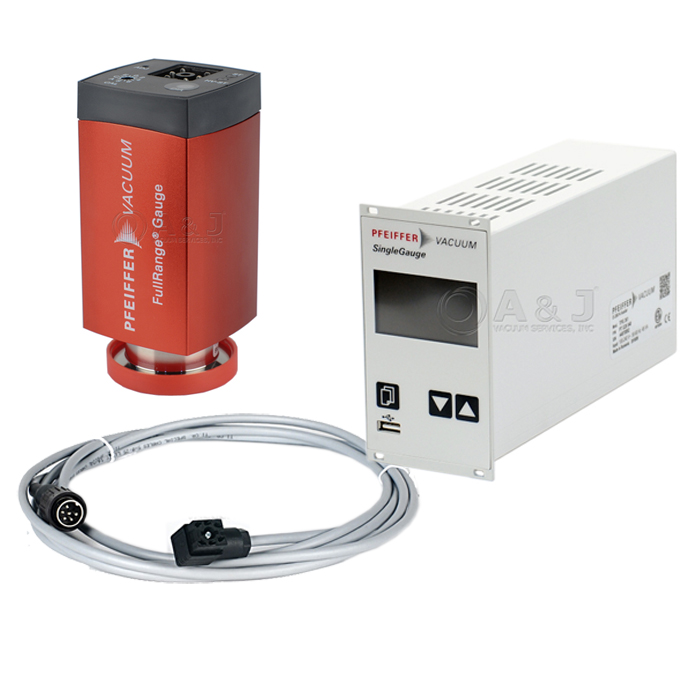

Included:
- SingleGauge measurement unit TPG 361/ PT G28 040 / PTG28040
- Transmitter PKR 361 / DN 25 ISO-KF / PT T03 140 010 / PTT03140010
- Cable Length: 3 m / PT 448 250-T / PT448250-T
Pressure Measuring System, TPG 361 (PTG28040) Single Gauge controller combined with one (1) PKR 361 (PTT03140010, KF-25) compact cold cathode gauge and 3 meter cable for measurement from 1000 to 2x10-9 mbar with 1 relay, 90-250V, 50-60 Hz. Power cable inlcuded.
*THERE ARE NO RETURNS ON THIS PRODUCT IF PRODUCT IS OPENED OR USED*
Pfeiffer Vacuum TPG 361 Single Gauge, PKR 361 DN 25 ISO-K, PT 446 004 / PT446004-T, Pressure Measurement System
Technical Data TPG 361:
| Ambient Temperature | 5-50 °C | 41-122 °F | 278-323 K |
| Connection for Gauge | 1 |
| Display Rate | ≥ 10 Hz |
| Error Signal: Working Contact, Potential-Free | 1 Pcs. |
| Filter Time Constant, Rapid/Normal/Slow | 0.02 s/0.15 s/0.75 s |
| I/O Interfaces | USB, RS-485, Ethernet |
| Mains Requirement: Frequency (Range) | 50/60 Hz |
| Mains Requirement: Power Consumption | 45 VA |
| Mains Requirement: Voltage (Range) | 100–240 V |
| Measurement Range | 5 * 10^[-11] – 5.5 * 10^4 hPa |
| Measurement Rate | ≥ 100 Hz |
| Measuring Channel | 1 Pcs. |
| Power Consumption Max. | 45 VA |
| Protection Category | IP20 |
| Safety | CE, UL |
| Set Point: Changeover Contact, Potential-Free | 5 Pcs. |
| Set Point: Current AC | 1 A |
| Set Point: Current DC | 0.5 A |
| Set Point: Voltage AC | 30 V AC |
| Set Point: Voltage DC | 60 V DC |
| Set Point Number | 2 Pcs. |
| Signal Output: Measuring Value, Analog | 0 – 10 V |
| Temperature: Storage | -20-60 °C | -4-140 °F | 253-333 K |
| Weight | 1.1 kg | 2.43 lb |

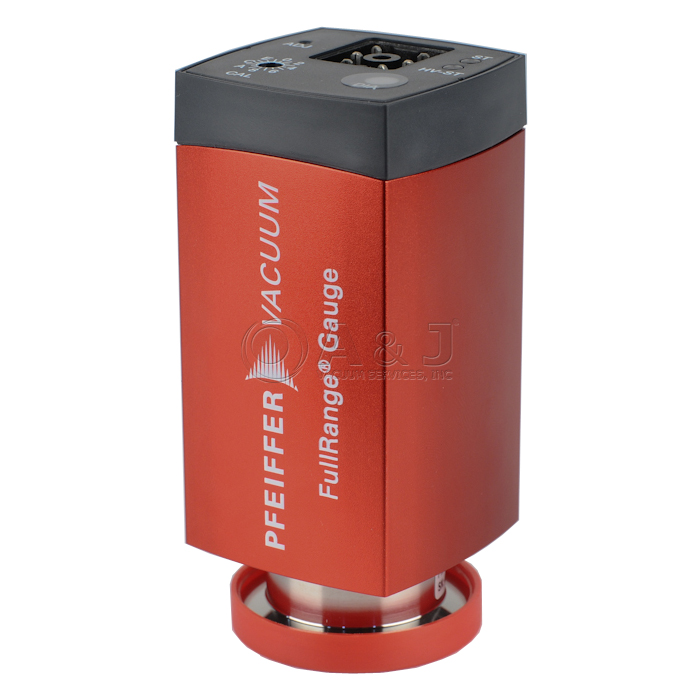

Technical Data PKR 361:
- 25 Millimeter Flange Size: DN 25 ISO-KF
- Measurement Range From 5 x 10^(-9) to 1000 hPa
- Two Gauge Heads (Pirani & Cold Cathode) Within a Single Case (Utilizing Inverted Magnetron)
- A Single Flange From Atmospheric Pressure to UHV
- Maximum Pressure Refers to Inhert Gases and Temperatures of Less Than 55°C
