Pfeiffer Vacuum TPH 055, Turbo Pump, PMP02920 / PM P02 920
Condition:
Remanufactured
Call us for Availability
Item#:PN06812
Mfr Part#:PMP02920 / PM P02 920
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:

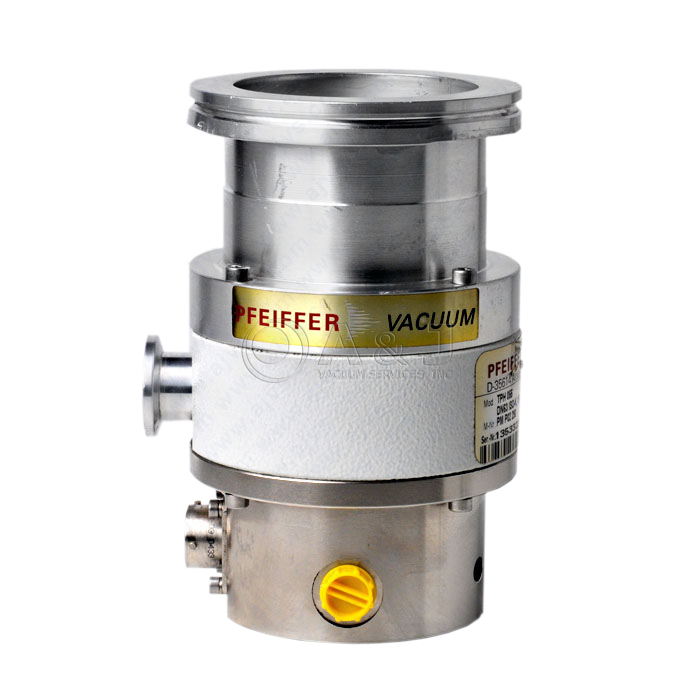

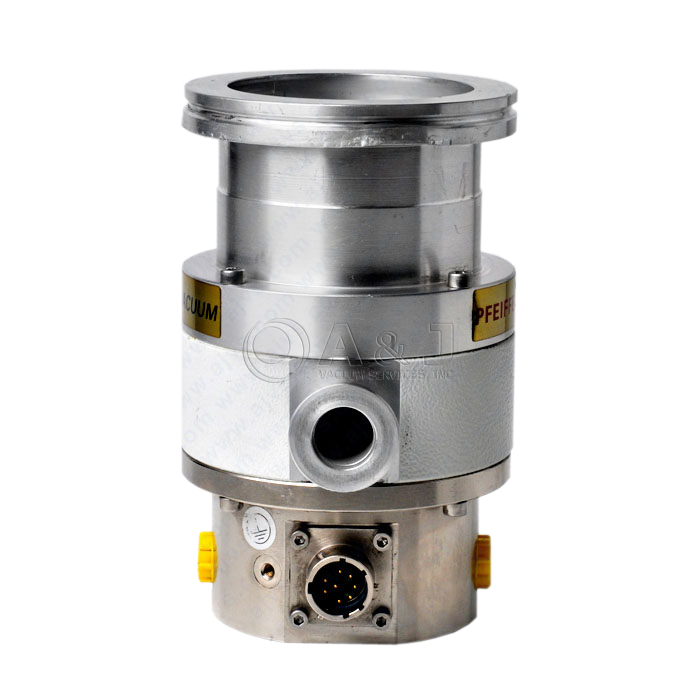

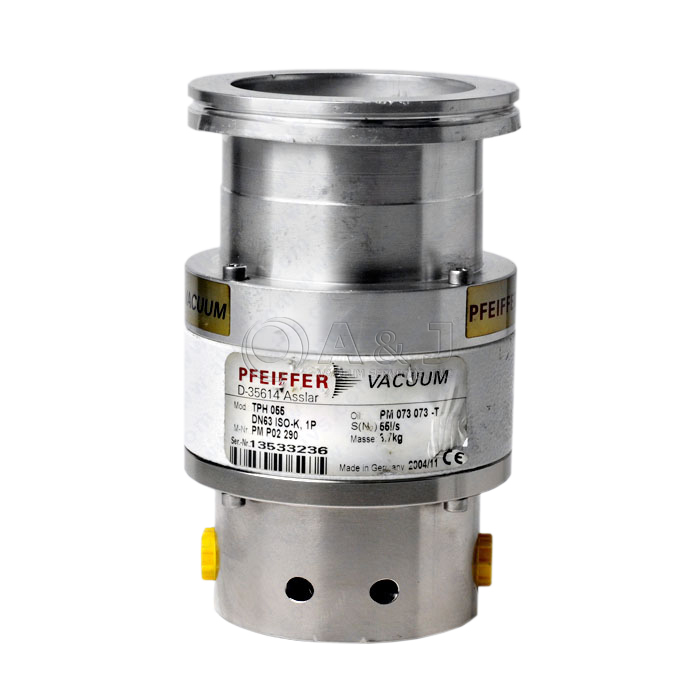

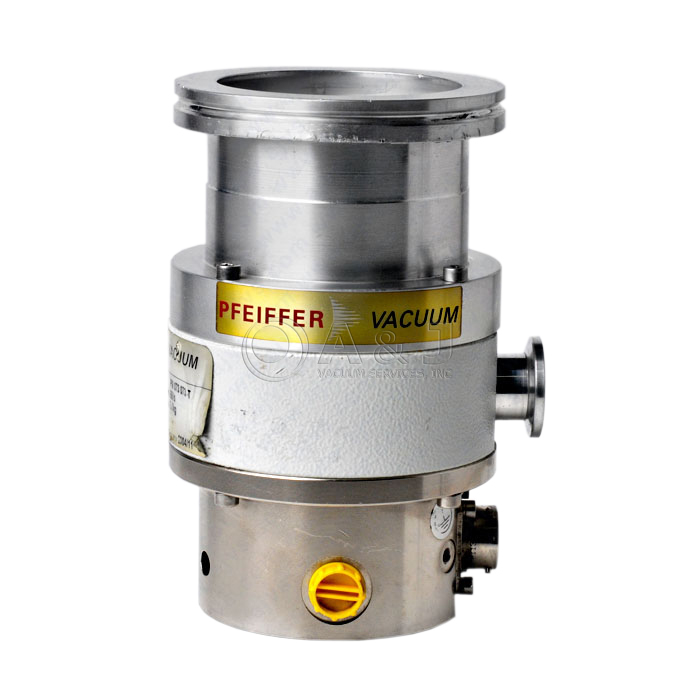

Pfeiffer Vacuum TPH 055, Turbo Pump, PMP02920 / PM P02 920
TPH 055 / PM P02 920 Overview:
This Turbomolecular Drag Pump has a pumping velocity of 55 liters per second and a final pressure of 1 x 10-7. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPH 055 Turbo Pump comes with an entire 12-Month Warranty.
A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.
A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
TPH055 Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 055 Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
This item is non-returnable/non-refundable
Pfeiffer Vacuum TPH 055, Turbo Pump, PMP02920 / PM P02 920

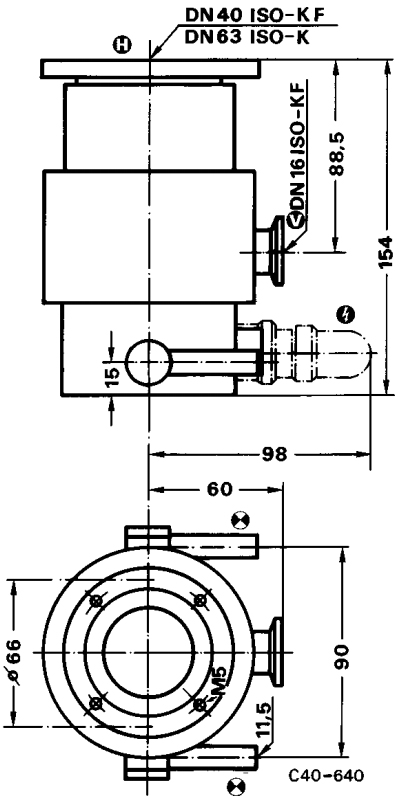

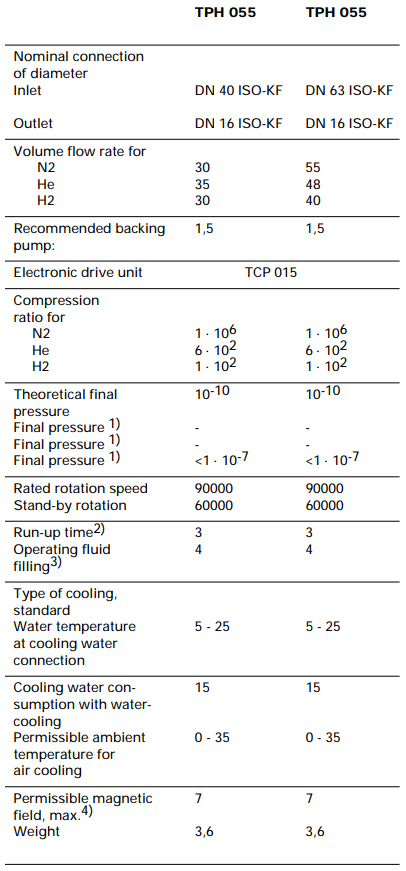

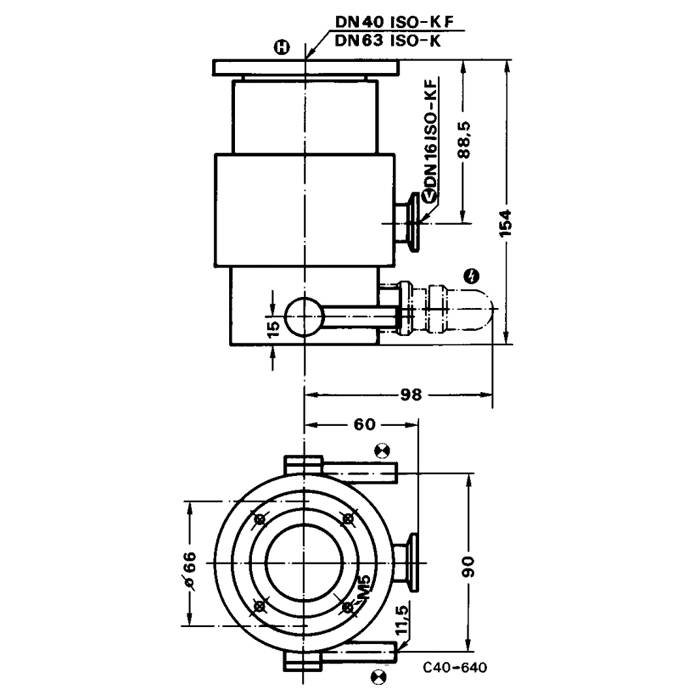

Pfeiffer TPH 055 Technical Data:
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 055 Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Item#:PN06781
Mfr Part#:2000018622 / PM 103 593 AT / PM103593AT
Condition: In Stock
New
In Stock
$179.99
Item#:PN09546
Mfr Part#:2000027988 / P 4081 630 C / P4081630C
Condition: In Stock
New
In Stock
$22.00
Item#:PN07521
Mfr Part#:PMC00130
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
