- P/N PM P01 210
- DN 100 ISO InleT Flange
- DN 25 KF Outlet Flange
- Fully Remanufactured
Shopping Cart ( )
Pfeiffer Vacuum TPH 170 (TPH170) DN-100-ISO Inlet Flange, KF25 Outlet Flange, PMP01210 / PM P01 210
Condition:
Remanufactured
In Stock
Item#:PN00144
Mfr Part#:PMP01210 / PM P01 210
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPH 170 (TPH170) DN-100-ISO Inlet Flange, KF25 Outlet Flange, PMP01210 / PM P01 210
TPH 170 / PMP01210 Overview:
Pfeiffer TPH 170 has a DN-100 ISO Inlet Flange. The Volume Flow Rate is N2: 170 l/s. Cooling water requirement for watertemperatur 15C of TPH170 is 15 l/h. The weight of TPH170 is 7 kg.
Fully refurbished Pfeiffer TPH 170 (PM P01 210) Turbo Pump coupled with a DN 100 ISO Inlet Flange. This Turbomolecular Drag Pump has a pumping velocity of 170 liters per second and a final pressure of 1 x 10-10. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The Pfeiffer Balzers TPH 170 Turbo Pump comes with an entire 12-Month Warranty.
The turbo pump-connecting cable-electronic drive unit form an entity which is ready for operation. The Pfeiffer turbo TPH and TPU models are absolutely identical in terms of design and performance data. The TPH has an ISO-K flange and the TPU a CF flange. In standard version, all pumps are water-cooled. They can be converted to air cooling with just a few manipulations by fitting fans. The Pumps are thermally protected against excessive temperatures.
A&J Vacuum repair / rebuild and service all Pfeiffer Turbo Pumps along with all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPH 170 (TPH170) DN-100-ISO Inlet Flange, KF25 Outlet Flange, PMP01210 / PM P01 210

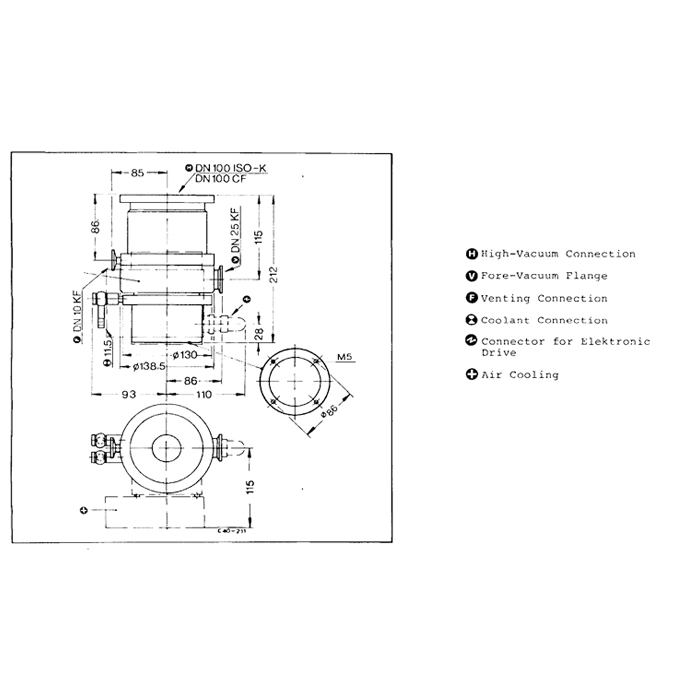

Pfeiffer TPH 170 Technical Data:
A&J Vacuum repair / rebuild and service all Pfeiffer Turbo Pumps along with all other Pfeiffer Turbo Pumping Stations Service and repair. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPH 170, Pfeiffer Balzers TPH 170
Item#:PN07221
Mfr Part#:PM006125X / PM 006 125-X
Condition: In Stock
Demo
In Stock
$95.79
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
