- Volume Flow Rate (l/s): N2: 1400
- Compression Ratio: N2: >1 x 108
- Maximum Fore-Vacuum Pressure (mbar): N2: 1.5
- DN 200 ISO
Shopping Cart ( )

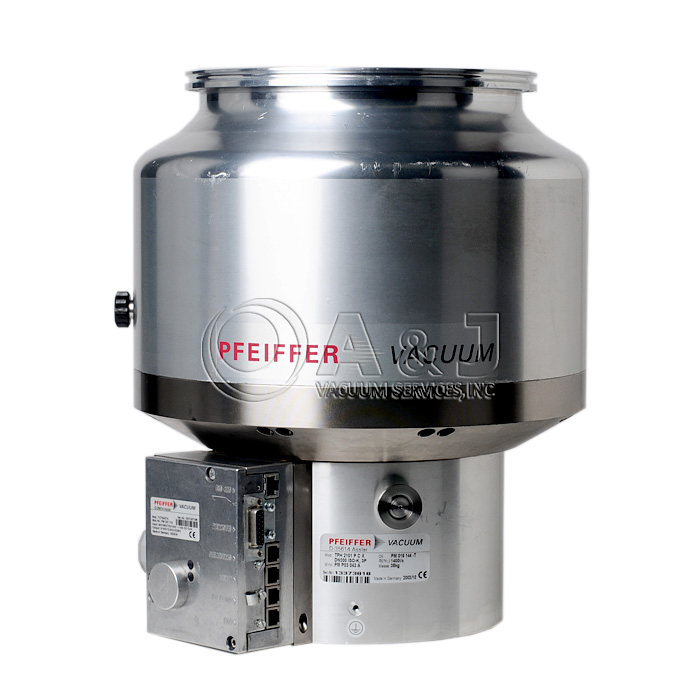

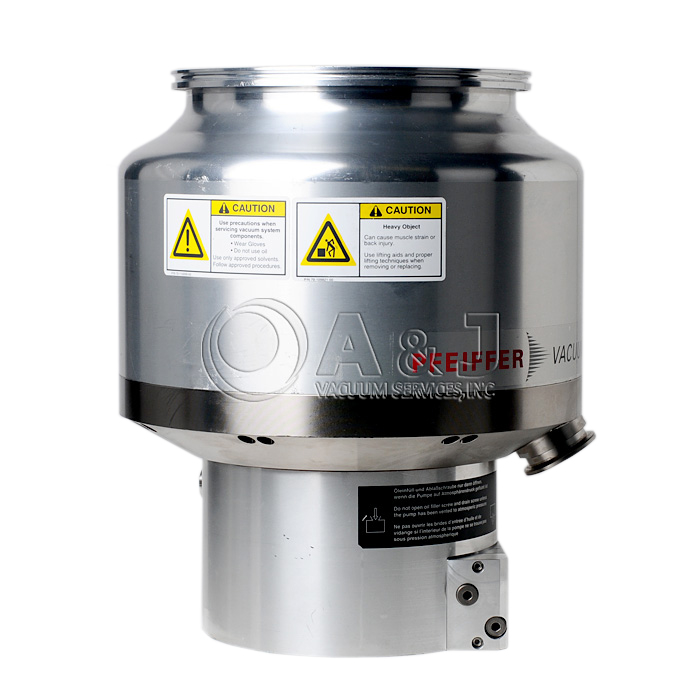

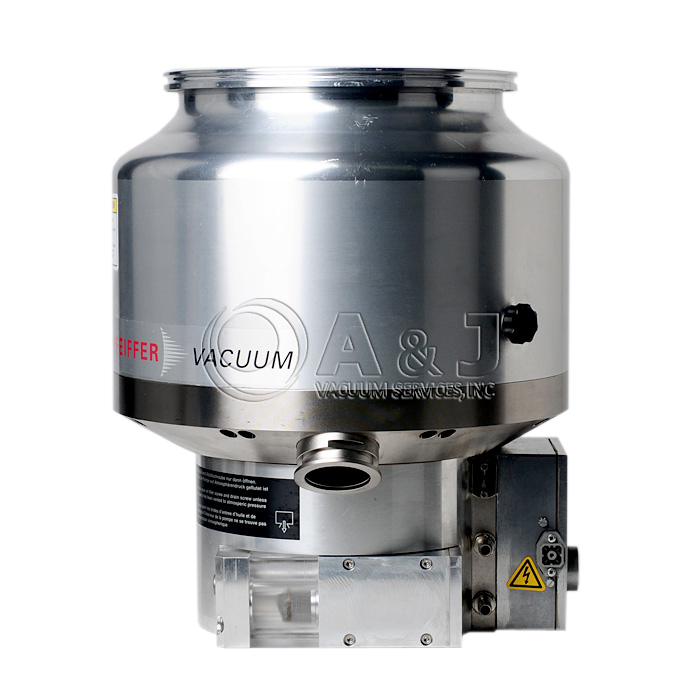

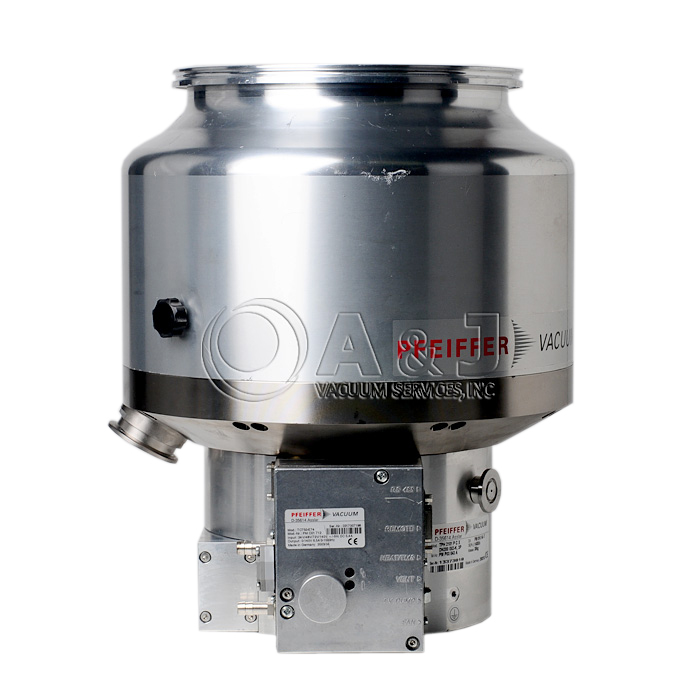

Pfeiffer Vacuum TPH 2101 PCX Turbo Pump, DN200ISO, TC 750, PM P03 043 A / PMP03043A / PMC01710-Special
Condition:
Remanufactured
In Stock
Item#:PN07044
Mfr Part#:PM P03 043 A / PMP03043A / PMC01710-Special
Manufacturer:Pfeiffer Vacuum
Price upon request
CONTACT US
Features:
Pfeiffer Vacuum TPH 2101 PCX Turbo Pump, DN200ISO, TC 750, PM P03 043 A / PMP03043A / PMC01710-Special
TPH 2101 PCX / PMP03043A Overview:
Pfeiffer Vacuum Turbopumps TPH/TPU 2101 P/P C with the TC 750 PM C01 710 Special form a complete unit. Voltage is supplied by a separate power unit.
The Turbomolecular Pumps TPH/TPU 2101 P and TPH/TPU 2101 P C may only be used for the purpose of generating vacuum.
The Turbomolecular Pumps TPH/TPU 2101 P C are designed to pump corrosive gases and vapours. Where corrosive gas processes are involved, gas bonding and particles which can damage the surfaces of the pump can be produced. The motor and bearing compartments have to be protected with sealing gas.
The turbopumps may only be used to pump those media against which they are chemically resistant. For other media the operator is required to qualify the pumps for the processes involved.
If the process produces dust, the maintenance intervals must be specified accordingly and sealing gas must be used.
If the pump is to be operated with more than 50% of the permissible gas load then sealing gas should be used to ensure rotor cooling.
The turbopump must be connected to a backing pump.
Only PFEIFFER power units may be used to operate the TC 750. The use of other power units requires the prior agreement of the manufacturer and equalisation with the valid specification.
The pumps may only be operated providing the ambient conditions in compliance with Protection Type IP 30 are observed.
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 2101 PC Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
Pfeiffer Vacuum TPH 2101 PCX Turbo Pump, DN200ISO, TC 750, PM P03 043 A / PMP03043A / PMC01710-Special
Pfeiffer TPH 2101 PCX Technical Data:
A&J Vacuum Services offers full repair/service of Pfeiffer TPH 2101 PC Pump, along with all other brands offered on our website. AJVS also services Pfeiffer Turbo Pumps. Please contact us for information about our service and repair program or click http://www.ajvs.com/service.php to access our services page. We also offer emergency service upon request. For more information, please email A&J Vacuum Services at info@ajvs.com or call (973) 249-0854. Thank you for choosing AJVS as your supplier.
AJVS_Pfeiffer_TPH_2101_PCX_Turbo_Pump_Sales_and_Repair.pdf
AJVS_Vacuum_Pump_Turbo_Pump_Service_and_Repair.pdf
Pfeiffer Vacuum TPH 2101 PC Turbo Pump
Item#:PN09542
Mfr Part#:2000028548 / P 3529 133 -A / P3529133-A
Condition: In Stock
New
In Stock
$37.95
Item#:PN16169
Mfr Part#:PMC01713
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Item#:PN17542
Mfr Part#:N3191382X
Condition: In Stock
Remanufactured
In Stock
$39.75
Item#:PN22788
Mfr Part#:2000028649 / P 4070 088 PV / P4070088PV
Condition: In Stock
New
In Stock
$9.15
Item#:PN00067
Mfr Part#:PMC01697B / PM C01 697 B
Condition: Out of Stock
Discontinued
Price upon request
Pfeiffer Vacuum, Mains cable 115 V AC, NEMA 5-15 to C13, 3m, 2000028157 / P 4564 309 ZE / P4564309ZE
Item#:PN00834
Mfr Part#:2000028157 / P 4564 309 ZE / P4564309ZE
Condition: In Stock
New
In Stock
$45.00
Item#:PN06191
Mfr Part#:2000020359 / PM 006 668 -X / PM006668-X
Condition: Out of Stock
New
$8,540.00
Item#:PN06382
Mfr Part#:2000019353 / PM 051 102-T / PM051102-T
Condition: In Stock
New
In Stock
$145.00
Item#:PN07091
Mfr Part#:PM041815-T
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Item#:PN07163
Mfr Part#:PMZ01206
Condition: Out of Stock
New
$742.63
Item#:PN07253
Mfr Part#:2000020340 / PM 006 313 -T / PM006313-T
Condition: Out of Stock
New
$917.00
Item#:PN07254
Mfr Part#:2000019628 / PM 016 144 -T / PM016144-T
Condition: In Stock
New
In Stock
$189.99
Item#:PN14004
Mfr Part#:2000019113 / PM 033 737 -T / PM033737-T
Condition: Out of Stock
Remanufactured
Out of Stock
Price upon request
Item#:PN17302
Mfr Part#:PMZ01135
Condition: In Stock
Demo
In Stock
$699.00
Item#:PN18115
Mfr Part#:2000012854 / PM Z01 205 B / PMZ01205B
Condition: Out of Stock
New
$571.00
Item#:PN20361
Mfr Part#:PM041938
Condition: In Stock
New
In Stock
$499.99
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
