- Fully Remanufactured
- TPH 2200 SG / PM P01 255 / PMP01255
- To operate with TCP 5000 Controller
- DN 250 ISO
Shopping Cart ( )

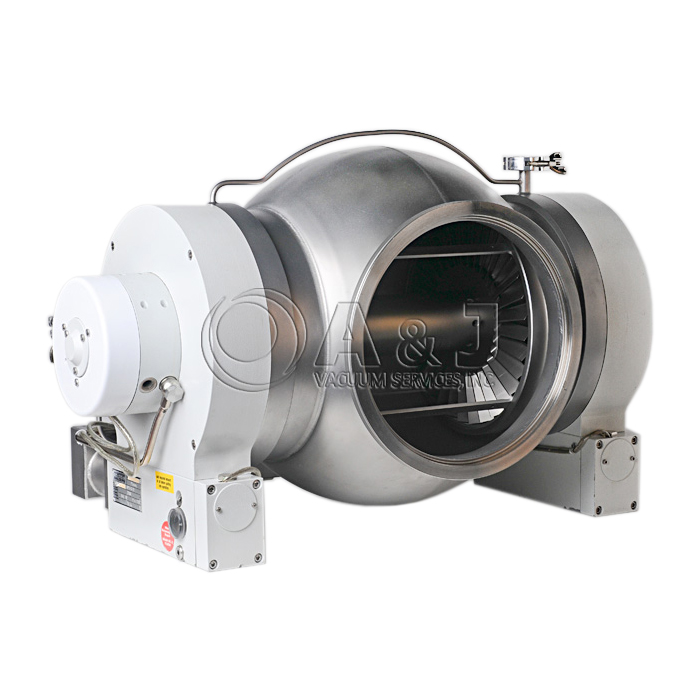

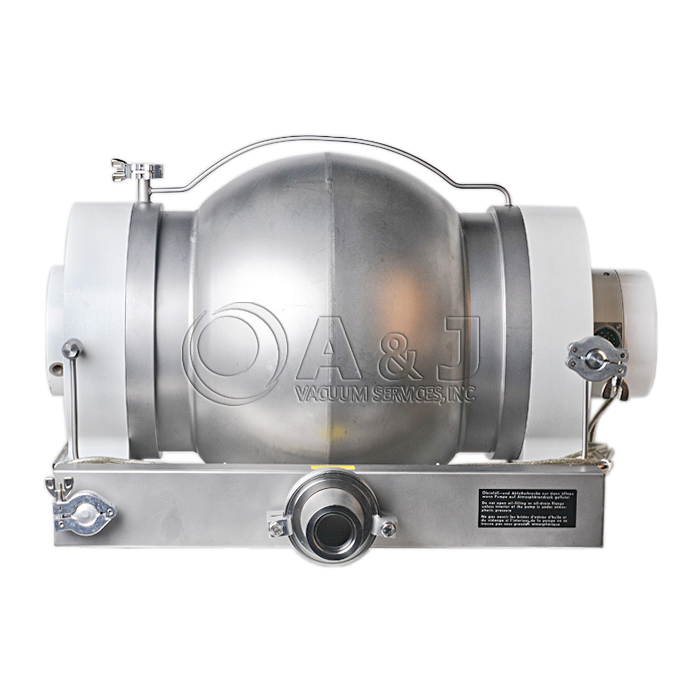

Pfeiffer Vacuum TPH 2200 SG Turbo Pump, Side Flange, DN 250 ISO, DN 63 ISO, TL-011 Oil, For TCP-5000 Controller, PM P01 255 / PMP01255
Condition:
Remanufactured
Call us for Availability
Item#:PN55621
Mfr Part#:PM P01 255 / PMP01255
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPH 2200 SG Turbo Pump, Side Flange, DN 250 ISO, DN 63 ISO, TL-011 Oil, For TCP-5000 Controller, PM P01 255 / PMP01255
TPH 2200 SG / PMP01255 Overview:
The Pfeiffer TPH 2200 Turbo Pump PMP0125 is designed to operate with Electronic Drive Unit TCP-5000\ in Houser coater together with the appropriate backing pump, a system which is ready to operate.
Switching on/off and turbo pump monitoring is executed via the TCP-5000 Electronic Drive Unit.
The TPH and the TPU Turbomolecular Pumps are of similar design and power. They differ in the type of high vacuum flange.
- TPH: ISO-K Flange
- TPU: CF-F Flange
The Pfeiffer TPH2200 Turbo Pump rotor has bearings at both ends. Each ball bearing has its own circulatory lubrication system.

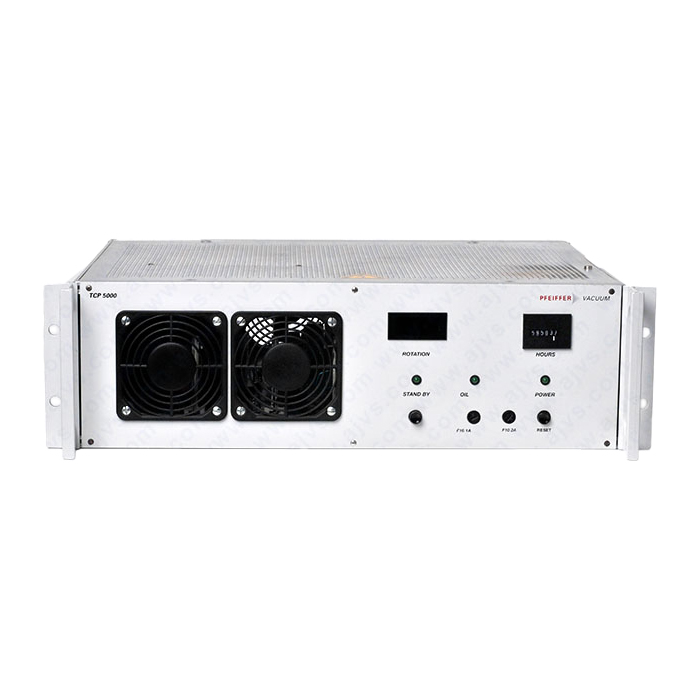

The TCP5000 Turbo Pump Controller controls pump running up to the rated rotation speed automatically.
The TPH-2200 Turbo Pumps PMP01255 are thermally protected against excessive temperatures. If the temperatures of the bearings, the drive or pump casing are impermissibly high, the drive power is reduced to zero.
A&J Vacuum also repair / rebuild and service Pfeiffer TPH 2200 / PMP01255 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPH 2200 SG Turbo Pump, Side Flange, DN 250 ISO, DN 63 ISO, TL-011 Oil, For TCP-5000 Controller, PM P01 255 / PMP01255
Pfeiffer TPH 2200 SG Technical Data:
A&J Vacuum also repair / rebuild and service Pfeiffer TPH 2200 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Get started with your repair:
We can have a repair estimate ready for your equipment within the hour of submission.
Start your equipment repair process by creating a Service RMA.
High quality service guaranteed
A&J Vacuum Services provides repairs on all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair and Mass Spectrometer repair. Our highly trained technicians will deliver the highest quality service and satisfaction.
We operate at our own full service repair facility which allows us to quickly and economically perform all repairs in a timely manner. Our advandced machinery enables us to handle all facets of the service and repair process. AJVS utilizes industry standard vibration analysis equipment and advanced testing equipment to troubleshoot and minimize all equipment failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
AJVS repair process:
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly of the pump, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and log pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10 -Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
We can repair your:
- Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
