Pfeiffer TPH/TPU 510 - Refurbished/Demo Turbo Pumps

This Pfeiffer TPH 510 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01180 models are identical in terms of design.

This Pfeiffer TPH-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244

Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.

Pfeiffer TPH 510 can have three different Inlet Flange orientations.

TPH-510 Top Flange
TPH-510 Side Flange
TPH-510 Bottom Flange

Pfieffer TPH 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.

Pfeiffer TCP 121 / PMC01475 / PN06831
Pfeiffer TCP 300 / PMC01259 / PN00341
Pfeiffer TCP 310 / PMC01520 / PN06829
Pfeiffer TCP 380 / PMC01490 / PN06827

Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.

Pfeiffer TPH510 Applications

Freeze drying - packaging industry
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

Pfeiffer TPH 510 Volume Flow Rate:

Pfeiffer TPU 510 volume flow rate, PMP01196, PM P01 196

Pfeiffer TPH 510 Dimensions:

Pfeiffer TPU 510 Dimensions, PMP01196, PM P01 196

A&J Vacuum also repair / rebuild and service Pfeiffer TPU 510 / PM P01 196 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured In Stock

Pfeiffer Vacuum TPU 510, Turbo Pump, Top Flange DN 160 CF-F, PMP01190

Item#: PN00280 Mfr Part#: PMP01190 Manufacturer: Pfeiffer Vacuum

PRICE: $7,700.00

WEB SAVINGS: $1,500.00

YOU PAY: $6,200.00

Pfeiffer Vacuum TPU510 Turbo Pump, Top Flange, PM P01 190, DN 160 CF-F Inlet Flange (Top Inlet Configuration)

Pfeiffer TPU510 Overview:

This Pfeiffer TPU 510 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01190 models are identical in terms of design.

This Pfeiffer TPU-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244

Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.

Pfeiffer TPU 510 can have three different Inlet Flange orientations.

TPU-510 Top Flange
TPU-510 Side Flange
TPU-510 Bottom Flange

Pfieffer 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.

Pfeiffer TCP 121 / PMC01475 / PN06831
Pfeiffer TCP 300 / PMC01259 / PN00341
Pfeiffer TCP 310 / PMC01520 / PN06829
Pfeiffer TCP 380 / PMC01490 / PN06827

Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.

Pfeiffer TPU510 Applications

Freeze drying - packaging industry
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

A&J Vacuum also repair / rebuild and service Pfeiffer TPU 510 / PM P01 190 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured In Stock

Pfeiffer TPH 510 C Plasma Corrosive Turbo Pump, ISO 160, PMP01381

Item#: PN00160 Mfr Part#: PMP01381 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer Vacuum TPH 510 C Plasma Corrosive Turbo Pump, ISO 160, PMP01381

Pfeiffer TPH510 C Overview:

Fully Refurbished Pfeiffer Vacuum TPH 510C Plasma Corrosive Turbo Pump with an ISO 160 Inlet Flange and KF 40 Outlet Flange.

This pump has a free of wear permanent magnetic bearing at the high vacuum side and an oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design, they only differ in their intake flange. This pump has been thoroughly tested and is ready for a wide range of applications in the research industry.

Pfeiffer TPH510 C Applications

Freeze drying - packaging industry
Corrosive Applications
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

A&J Vacuum also repair / rebuild and service Pfeiffer TPH 510 C Plasma / PM P01 381 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured Out of Stock

Pfeiffer Vacuum TPH 510 Turbo Pump, Bottom Flange, DN-160 ISO, PMP01182

Item#: PN07842 Mfr Part#: PMP01182 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer Vacuum TPH510 Turbo Pump, Bottom Flange, PM P01 182, DN 160 ISO-K Inlet Flange (Bottom Inlet Configuration)

Pfeiffer TPH510 Overview:

This Pfeiffer TPH 510 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01182 models are identical in terms of design.

Pump has a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange. The pumps have a free of wear permanent magnetic bearing at high vacuum side and oil lubricated ceramic bearing at the backing side. Turbo pump designed for a wide range of applications in research industry.

Pump is fully rebuilt and tested and comes with full 12-MONTHS WARRANTY !

This Pump is fully rebuilt and comes with FULL 12-MONTHS WARRANTY!

This Pfeiffer TPH-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244

Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.

Pfeiffer TPH 510 can have three different Inlet Flange orientations.

TPH-510 Top Flange
TPH-510 Side Flange
TPH-510 Bottom Flange

Pfieffer 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.

Pfeiffer TCP 121 / PMC01475 / PN06831
Pfeiffer TCP 300 / PMC01259 / PN00341
Pfeiffer TCP 310 / PMC01520 / PN06829
Pfeiffer TCP 380 / PMC01490 / PN06827

Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.

Pfeiffer TPH510 Applications

Freeze drying - packaging industry
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

A&J Vacuum also repair / rebuild and service Pfeiffer TPH 510 / PM P01 182 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured Out of Stock

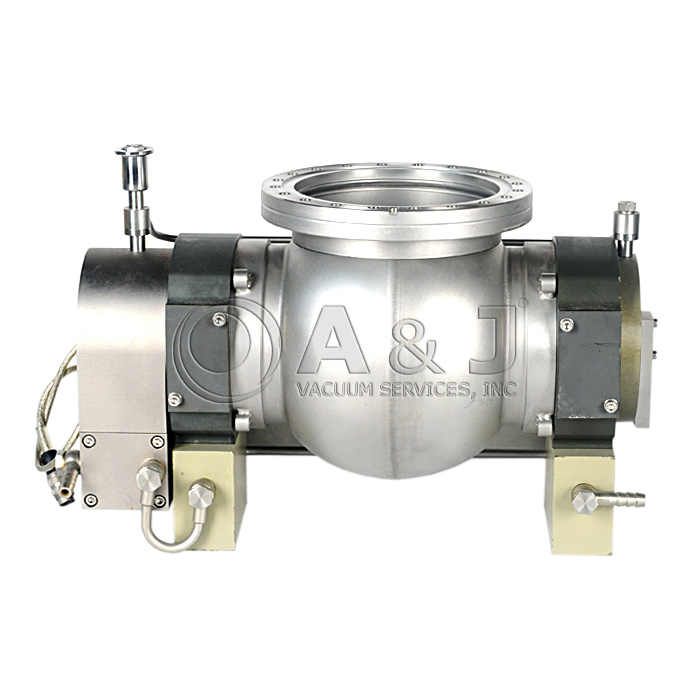

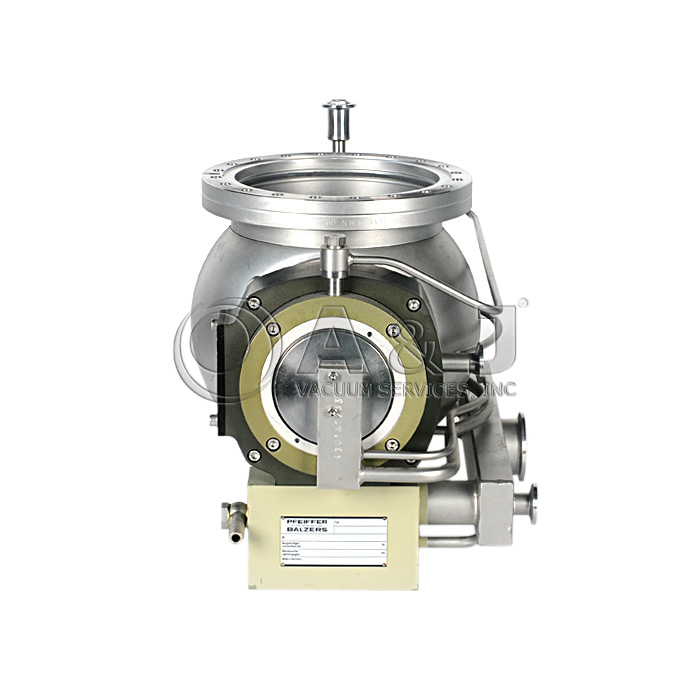

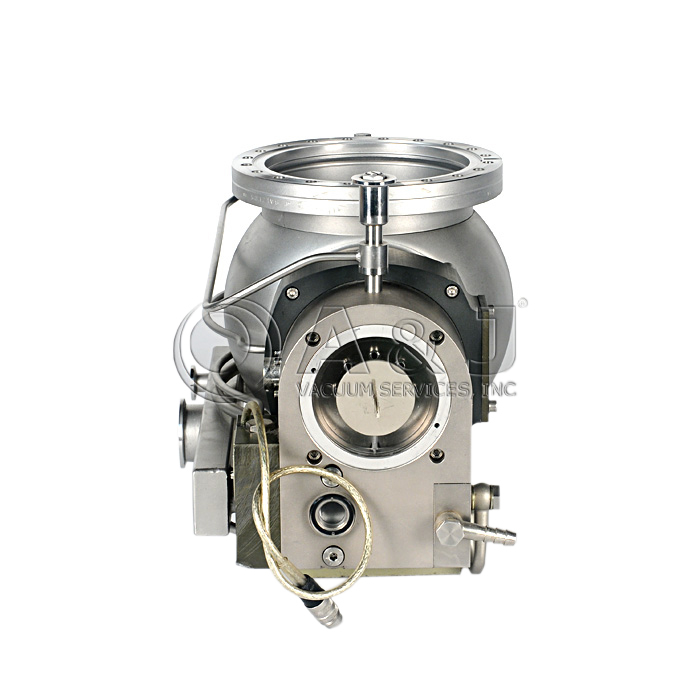

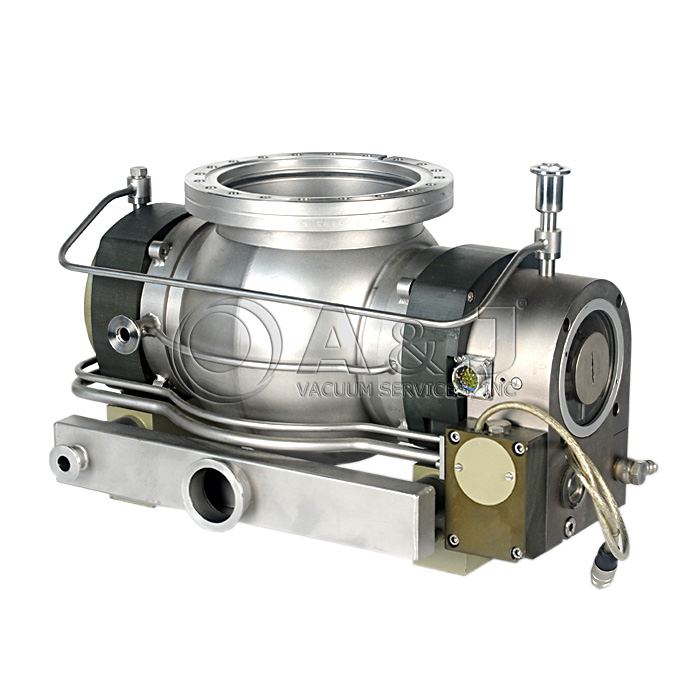

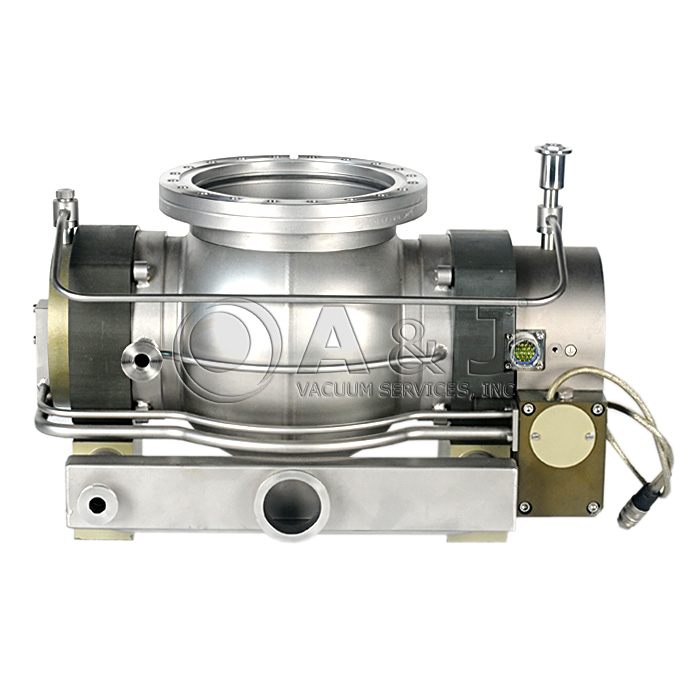

Pfeiffer TPU 510 C Plasma Corrosive Turbo Pump, CF 160, PMP01440

Item#: PN17428 Mfr Part#: PMP01440 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer Vacuum TPU510 C Plasma Turbo Pump, Top Flange, PM P01 440, DN 160 CF-F Inlet Flange (Top Inlet Configuration)

Pfeiffer TPU510 C Overview:

This Pfeiffer TPU 510 Plasma Corrosive Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01440 models are identical in terms of design.

This Pfeiffer TPU-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244

Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.

Pfeiffer TPU 510 can have three different Inlet Flange orientations.

TPU-510 Top Flange
TPU-510 Side Flange
TPU-510 Bottom Flange

Pfieffer 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.

Pfeiffer TCP 300 / PMC01259 / PN00341
Pfeiffer TCP 310 / PMC01520 / PN06829
Pfeiffer TCP 380 / PMC01490 / PN06827

Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.

Pfeiffer TPU510 C Applications

Freeze drying - packaging industry
Corrosive Applications
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

A&J Vacuum also repair / rebuild and service Pfeiffer TPU 510 C Plasma / PM P01 440 Turbo Pumps along with all other Pfeiffer Vacuum pumps and Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854

Condition: Remanufactured Out of Stock

Pfeiffer Vacuum TPU 510, Turbo Pump, Top Flange DN 160 CF-F, PMP01196

Item#: PN19899 Mfr Part#: PMP01196 Manufacturer: Pfeiffer Vacuum

Price upon request

Pfeiffer Balzers TPU510 Turbo Pump (TPU510) PM P01 196 Turbomolecular Pump with DN 160 CF-F Inlet Flange and DN 40 ISO-KF Outlet Flange

Pfeiffer TPU510 Overview:

This Pfeiffer TPU 510 Turbo Pump has two ceramic bearings at each end to support rotor. The Turbo Pumps TPU 510 and TPH510 PMP01196 models are identical in terms of design.

This Pfeiffer TPU-510 Turbo Pump is lubricated with Pfeiffer TL 011 Turbo Pump fluid PM006034 AT / PN07244

Pfeiffer TPH 510 and TPU 510 only differ in their intake flange. TPH 510 comes with DN 160 ISO-K Inlet Flange, and TPU510 comes with DN-160 CF-F Conflat Inlet Flange.

Pfeiffer TPU 510 can have three different Inlet Flange orientations.

TPU-510 Top Flange
TPU-510 Side Flange
TPU-510 Bottom Flange

Pfieffer 510 Turbo Pump can be operated with one of the following Electronic Turbo Pump Controllers.

Pfeiffer TCP 121 / PMC01475 / PN06831
Pfeiffer TCP 300 / PMC01259 / PN00341
Pfeiffer TCP 310 / PMC01520 / PN06829
Pfeiffer TCP 380 / PMC01490 / PN06827

Those Pfeiffer Vacuum Turbo Pump Controllers are well design to be integrated into your High Vacuum System Vacuum, and can be rack mounted for easy panel access.

Pfeiffer TPU510 Applications

Freeze drying - packaging industry
Degassing, casting, dry vacuum smelting (super-pure metals)
Incandescent lamp manufacturing
Electronic tubes
Thin film deposition
Space simulation
Cryogenic research
Electron microscopy
Nuclear physics, Plasma physics, High energy physics
Particle accelerators - Storage rings

Pfeiffer TPU 510 Volume Flow Rate:

Pfeiffer TPU 510 volume flow rate, PMP01196, PM P01 196

Pfeiffer TPU 510 Dimensions:

Pfeiffer TPU 510 Dimensions, PMP01196, PM P01 196

Condition: Remanufactured Out of Stock
