- PM P01 401
- DN 63 CF-F Inlet Flange
- Fully Remanufactured
- Pfeiffer Vacuum
Shopping Cart ( )

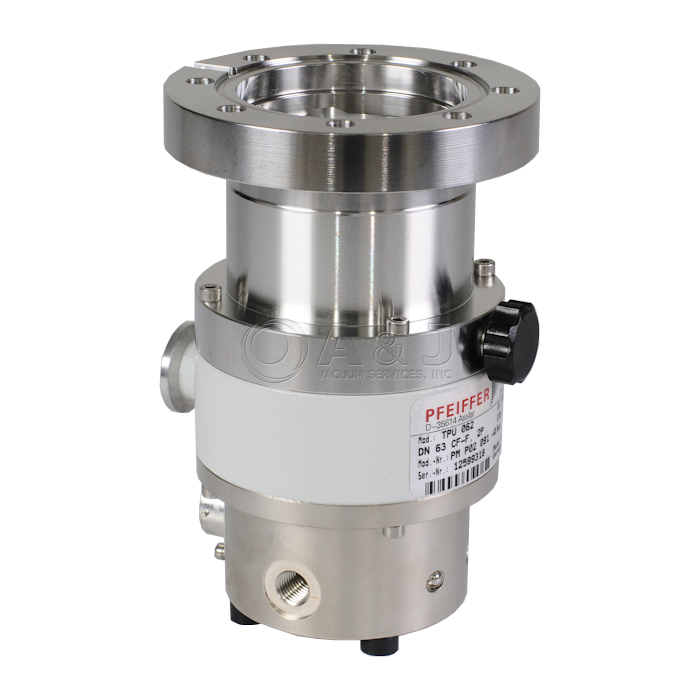

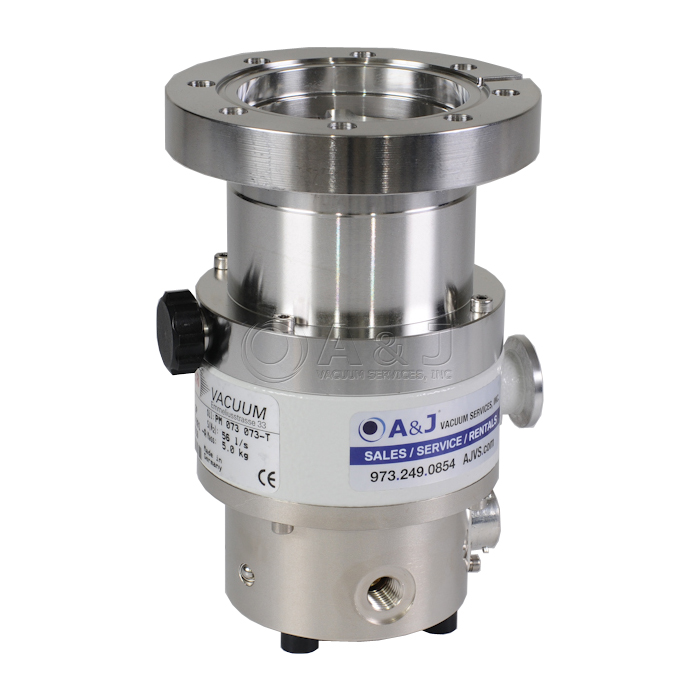

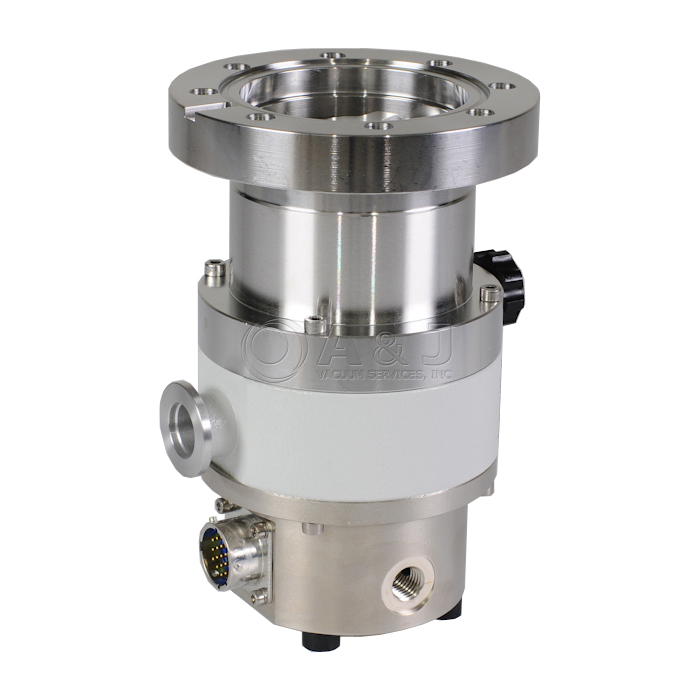

Pfeiffer Vacuum TPU 060 Turbo Pump, CF63, PMP01401 / PM P01 401
Condition:
Remanufactured
In Stock
Item#:PN00138
Mfr Part#:PMP01401 / PM P01 401
Manufacturer:Pfeiffer Vacuum
Features:
Pfeiffer Vacuum TPU 060 Turbo Pump, CF63, PMP01401 / PM P01 401
Please note: This pump has been replced with TPU 062 / PMP02091 / PN00140 Click Here
TPU 060 / PM P01 401 Overview:
This Pfeiffer TPU 060 PMP01401 Drag Pump has a pumping velocity of 56 liters per second and a final pressure of 1 x 10-11. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries. The TPU 060 Turbo Pump comes with an entire 12-Month Warranty.
This Pfeiffer Pump has a wear free permanent magnetic bearing at the high vacuum side and a oil lubricated ceramic bearing at the backing side. The Turbo Pumps TMH and TMU models are identical in terms of design. They only differ in their intake flange.
A turbopump is a gas turbine that is made up of two independent components ; a rotodynamic pump and a driving turbine. They can be mounted on the same shaft or customarily geared together. The design of a turbopump is to produce a high pressure fluid for feeding a combustion chamber or other use. Visit the turbo pump wiki page for more information.
A turbomolecular pump is a form of vacuum pump similar to a turbopump which is used to obtain and hold a high vacuum. These pumps work on the principle that gas particles can be given momentum in a wanted direction by reiterated collision with a traveling solid surface. In a turbomolecular pump, a quickly spinning turbine rotor 'strikes' gas particles from the intake of the pump towards the exhaust in order to make or hold a vacuum. Visit the turbomolecular pump wiki page for more information.
TPU 060 Applications:
- Freeze drying - packaging industry
- Degassing, casting, dry vacuum smelting (super-pure metals)
- Incandescent lamp manufacturing
- Electronic tubes
- Thin film deposition
- Space simulation
- Cryogenic research
- Electron microscopy
- Nuclear physics, Plasma physics, High energy physics
- Particle accelerators - Storage rings
A&J Vacuum repair / rebuild and service Pfeiffer TPU 060, TPU 062 Turbo Pumps and Turbo Pump Controllers along with all other Pfeiffer Vacuum Vacuum Rotary Vane Pumps, Pfeiffer Pump repair, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Pfeiffer Vacuum TPU 060 Turbo Pump, CF63, PMP01401 / PM P01 401
Pfeiffer Vacuum TPU 060 Technical Data:
| TPH 062 - TPU 062 | |
| Inlet | DN63 ISO-K/DN 63 CF-F |
| Outlet | DN16 ISO-KF |
| Volume flow rate for | |
| N2 l/s | 56 |
| He l/s | 52 |
| H2 l/s | 45 |
| Recommended backing pump: m^3/h | 1,5 |
| Electronic drive unit | TCP 121 (TCP 121) / 380 |
| Compression ratio for | |
| N2 | 1x10^8 |
| He | 7x10^3 |
| H2 | 6x10^2 |
| Theoretical final pressure | 10^-11 |
| Final pressure mbar | <1x10^-10 |
| Final pressure mbar | <1x10^-9 |
| Final pressure mbar | <1x10^-8 |
| Rated rotation speed 1/min | 90000 |
| Stand-by rotation 1/min | 60000 |
| Run-up time min | 2 |
| Operating fluid filling cm3 | 4 |
| Type of cooling, standard, Water temperature at cooling water connection °C |
5-25 |
| Cooling water con-sumption with water-cooling l/h | 15 |
| Permissible ambient temperature for air cooling °C | 0-35 |
| Permissible magnetic field, max. mT | 7 |
| Weight kg | 3,6/3,8 |
A&J Vacuum repair / rebuild and service Pfeiffer TPU 060, TPU 062 Turbo Pumps and Turbo Pump Controllers along with all other Pfeiffer Vacuum Vacuum Rotary Vane Pumps, Pfeiffer Pump repair, Pfeiffer Leak Detector Repair and all other Pfeiffer Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
