- Pumping Speed at 60Hz: 25.9 cfm
- Pumping Speed at 50Hz: 21.78 cfm
- Pressure Ultimate: 1.000 × 10⁻³ mbar
- IP55 Rating
Edwards E2M40 Vacuum Pump for use with Ultragrade Oil, Dual Stage Rotary Vane, 3Ph 200V 50/60Hz / 380V 60 Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36404934
Edwards E2M40 Features:
- Reliable operation
- Minimal noise
- High GB flow rate
- Swift acting inlet valve
- Connection inlet flange: DN 40 ISO-F
- Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
- Cooling method: Air Cooling (forced - fan)
- Pressure ultimate: 1.000 × 10⁻³ mbar
- Power supply voltage: 3Ph 200V 50/60Hz / 380V 60Hz
- Unique mode selection switch: enables high vacuum and high throughput operation from single pump
E2M40 / A36404934 Overview:
This Edwards Rotary Vane Pump has a peak pumping velocity of 25.9 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation. Multistage rotary vane vacuum pumps can reach pressures levels as low as 103 mbar (0.1 Pa).Visit the rotary vane pump wiki page for more information.
E2M40 Scope of Delivery:
- Installation, operation and maintenance instructions
E2M40 Applications:
- Analytical instruments
- Laboratory bench table
- Backing Turbomolecular pump
- Freeze drying
- Research and development
- In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
- In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards E2M40 Vacuum Pump for use with Ultragrade Oil, Dual Stage Rotary Vane, 3Ph 200V 50/60Hz / 380V 60 Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36404934
Edwards E2M40 Technical Data:
- Connection Inlet Flange: DN 40 ISO-F
- Weight: 75 kg | 165 lbs
- Connection Vacuum Outlet Flange: DN 25 ISO-KF (NW25)
- Power Supply Phase: 3-Ph
- Power Supply Voltage: 3Ph 200V 50/60Hz / 380V 60Hz

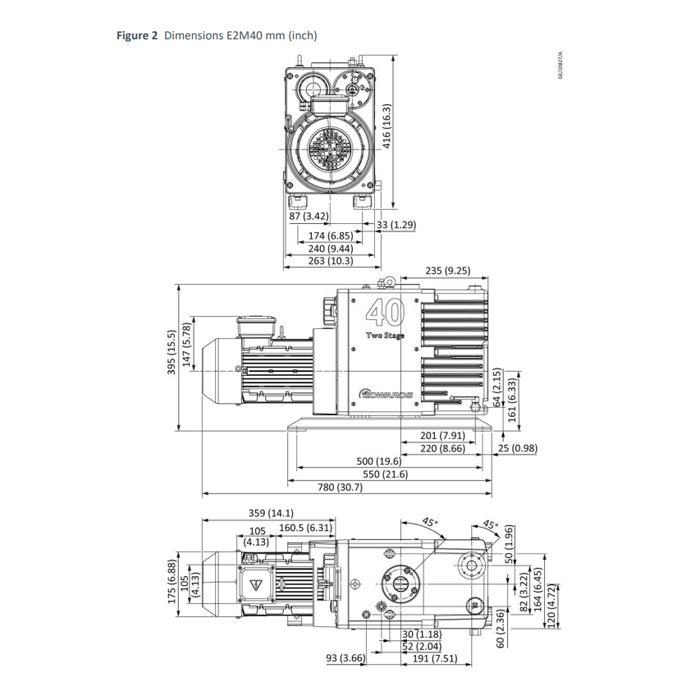

- Dimension Length: 710 mm | 27.95 in
- IP Rating: IP55
- Power Supply Frequency: 50 Hz | 60 Hz
- Dimension Height: 397 mm | 15.63 in
- Dimension Width: 240 mm | 9.45 in
- Connector Electrical Power: Hard wiring (in electrical box of pump / mains)
- Noise / Sound Level: 65.00 db(A)
- Cooling Method: Air Cooling (forced - fan)
- Motor Efficiency Class: IE3
- Connection Inlet / Outlet Flange: DN 40 ISO-F / DN 25 ISO-KF (NW25)
- Certification Motor: CE
- Power Total Rated @60Hz: 2000 W
- Power Total Rated @50Hz: 1500 W
- Pumping Speed Air Nitrogen 60Hz: 44.00 m/³h
- Pumping Speed Air Nitrogen 50Hz: 37.00 m/³h
- Pressure Water Vapor Max: 7 mbar
- Nominal Rotational Speed 50Hz: 25.00 Hz
- Capacity Water Vapor: 5.556 × 10⁻⁵ kg/s
- Displacement @50Hz Max: 42.50 m/³h
- Pressure Ultimate With Gas Ballast: 0.027 mbar
- Pressure Ultimate: 1.000 × 10⁻³ mbar
- Nominal Rotational Speed 60Hz: 30 Hz
- Displacement @60Hz Max: 50.50 m/³h
- Altitude Max: 1.000 × 10⁶ mm | 39370.08 in
- Oil Capacity Min: 2.200 × 10⁻³ m³
- Oil Capacity Max: 4.000 × 10⁻³ m³
- Temperature Inlet Gas Max: 70.00 °C | 158.00 °F | 343.15 K
- Pressure Absolute Outlet Continous Max: 1500.00 mbar
- Temperature Ambient Operation Max: 40.00 °C | 104.00 °F | 313.15 K
- Temperature Ambient Operation Min: 12.00 °C | 53.60 °F | 285.15 K
- Temperature Ambient Storage Min: -30.00 °C | -22.00 °F | 243.15 K
- Temperature Ambient Storage Max: 70.00 °C | 158.00 °F | 343.15 K
- Classification Product Pressure Range: Medium Vacuum- 1 mbar - 1·10⁻³ mbar | Rough Vacuum- 1000 mbar - 1 mbar
- Classification High / Medium / Rough Vacuum pump: Rough Vacuum Pump
- Classification Dry or Wet Pump: Wet
- Classification Vacuum Pump Technology: Oil Rotary Vane Pump Two-Stage
- Classification Region: ASIA
- Default Oil Type: ULTRAGRADE™ Performance 70
- Variant Oil Type: Standard pump for use with Ultragrade oil
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
Edwards E2M40 and E2M80 Rotary Vacuum Pumps Operation Manual
|
Service and Repair - Turbo Pumps
- Rotary Vane Pumps
- Dry Vacuum Pumps
- Leak Detectors
- Scroll Dry Pumps
- Vacuum Boosters
- Diaphragm Dry Pumps
A & J Vacuum Services provides repair service for all types of High Vacuum equipment. We perform Turbomolecular Pump repair, Turbo Pump Repair, Dry Pump repair, Vacuum Pump repair, Mass Spectrometer repair, Rotary Vane Pump repair, Vacuum Booster repair, and Leak detector repair. Our highly trained technicians have years of experience and guarantee the highest quality service.
We operate at our own full service repair facility in Clifton, NJ. We have invested in state-of-the-art equipment including; complete line of decontamination, cleaning, drying, balancing, vibration analysis and software to minimize failures. Our in-house machine shop is capable of machining various components, prototypes and housing conversions as needed.
We support all major manufacturers including Pfeiffer Vacuum, Alcatel / Adixen, Edwards Vacuum, Varian, Oerlikon / Leybod Vacuum, Vacuubrand, and Agilent Technologies.
Repair Steps
- Full incoming inspection and run up time check, vibration check, drive inspection.
- Full disassembly, decontamination and cleaning.
- Pump is balanced utilizing state-of-the-art equipment from the world leader in equipment balancing and analysis to reduce noise and vibrations and extend bearings life.
- Assembly and replacement of all necessary parts such as shafts, bushings, bearings, sleeves, O-rings, gaskets, seals, wicks, etc. Only parts that meet or surpass OEM specifications are used to ensure dependable highest quality service and long pump life.
- Final test and leak check. The pump in fully assembled condition is checked for vacuum seal. Leak test to 1 x 10-9 Mbar l/s. Vibrations are analyzed and test data is digitally recorded.
Every pump and instrument is extensively tested for 48 hours. During our final tests, we monitor total pressure, temperature, vibration and noise level utilizing newest testing technologies and techniques specified by OEM. Upon request, we can provide our customers with a pump down graph. Call us for your free repair estimate at 1-973-249-0854.
