- Pumping Speed at 60Hz: 52.97 cfm
- Pumping Speed at 50Hz: 43.55 cfm
- Pressure Ultimate: 1.000 × 10⁻³ mbar
- IP55 Rating
Shopping Cart ( )
Edwards E2M80 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36517940
Condition:
New
Item#:PN57681
Mfr Part#:A36517940
Manufacturer:Edwards Vacuum
Features:
Edwards E2M80 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36517940
Edwards E2M80 Features:
- Reliable operation
- Minimal noise
- High GB flow rate
- Swift acting inlet valve
- Connection inlet flange: DN 40 ISO-F
- Connection vacuum outlet flange: DN 25 ISO-KF (NW25)
- Cooling method: Air Cooling (forced - fan)
- Pressure ultimate: 1.000 × 10⁻³ mbar
- Power supply voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz
- Unique mode selection switch: enables high vacuum and high throughput operation from single pump
E2M80 / A36517940 Overview:
This Edwards Rotary Vane Pump has a peak pumping velocity of 52.97 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
A rotary vane pump can be described as a positive-displacement pump that is comprised of vanes mounted to a rotor that rotates inside of an enclosure. In some instances these vanes can be of varying length and tensioned to maintain contact with the walls as the pump rotates.
The simplest rotary vane pump is a circular rotor revolving inside of a larger round enclosure. The centers of these two bands are offset, inducing eccentricity. Vanes are allowed to slide in and out of the rotor and seal on all edges, making vane chambers that do the pumping work. On the intake side of the pump, the vane chambers are increasing in volume. These increasing volume vane chambers are filled with fluid forced in by the inlet pressure. Inlet pressure level is actually the pressure level from the system being pumped, frequently just the atmosphere. On the exhaust side of the pump, the vane chambers are decreasing in volume, forcing fluid out of the pump. The activity of the vane drives out the same volume of fluid with each rotation.
E2M80 Scope of Delivery:
- Installation, operation and maintenance instructions
E2M80 Applications:
- Analytical instruments
- Laboratory bench table
- Backing Turbomolecular pump
- Freeze drying
- Research and development
- In scientific and laboratory applications, the E2M0.7-2.5 and E2M18/28 are the ideal partners for your turbomolecular pump
- In Industrial applications, E2M18/28, E2M40/80 and E2M175/275 offer very robust solutions in demanding applications
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
This item is non-returnable/non-refundable
Edwards E2M80 FX Vacuum Pump, Dual Stage Rotary Vane, 3Ph 380-400V 50Hz / 230/460V 60Hz, ISO40 Inlet Flange, NW25 Outlet Flange, A36517940
Edwards E2M80 Technical Data:
- Connection Inlet Flange: DN 40 ISO-F
- Weight: 104 kg | 229 lbs
- Connection Vacuum Outlet Flange: DN 25 ISO-KF (NW25)
- Power Supply Phase: 3-Ph
- Power Supply Voltage: 3Ph 380-400V 50Hz / 230/460V 60Hz

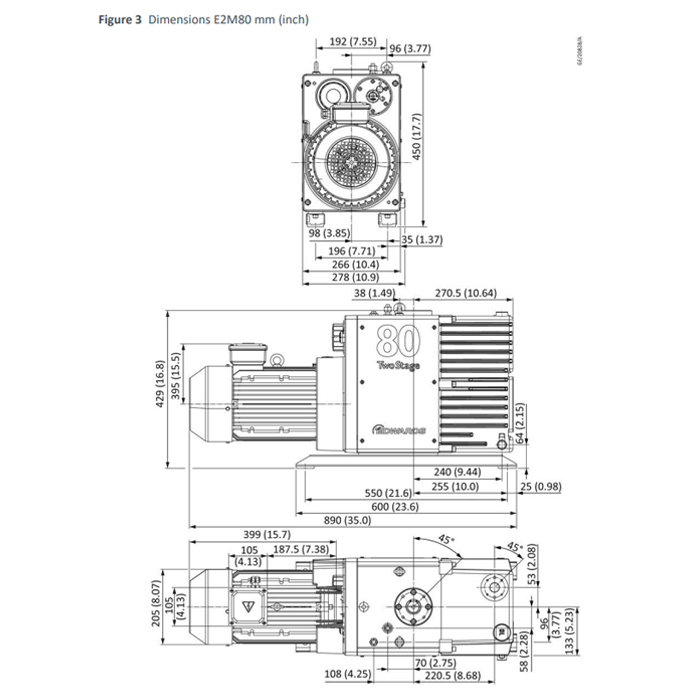

- Dimension Length: 858 mm | 33.78 in
- IP Rating: IP55
- Power Supply Frequency: 50 Hz | 60 Hz
- Dimension Height: 429 mm | 16.89 in
- Dimension Width: 266 mm | 10.47 in
- Connector Electrical Power: Hard wiring (in electrical box of pump / mains)
- Noise / Sound Level: 70.00 db(A)
- Cooling Method: Air Cooling (forced - fan)
- Motor Efficiency Class: IE3
- Connection Inlet / Outlet Flange: DN 40 ISO-F / DN 25 ISO-KF (NW25)
- Certification Motor: CE
- Power Total Rated @60Hz: 3000 W
- Power Total Rated @50Hz: 2200 W
- Pumping Speed Air Nitrogen 60Hz: 90.00 m/³h
- Pumping Speed Air Nitrogen 50Hz: 74.00 m/³h
- Pressure Water Vapor Max: 5 mbar
- Nominal Rotational Speed 50Hz: 28.67 Hz
- Capacity Water Vapor: 8.333 × 10⁻⁵ kg/s
- Displacement @50Hz Max: 80 m/³h
- Pressure Ultimate With Gas Ballast: 0.027 mbar
- Pressure Ultimate: 1.000 × 10⁻³ mbar
- Nominal Rotational Speed 60Hz: 23.67 Hz
- Displacement @60Hz Max: 96.00 m/³h
- Altitude Max: 1.000 × 10⁶ mm | 39370.08 in
- Oil Capacity Min: 4.000 × 10⁻³ m³
- Oil Capacity Max: 6.300 × 10⁻³ m³
- Temperature Inlet Gas Max: 70.00 °C | 158.00 °F | 343.15 K
- Pressure Absolute Outlet Continous Max: 1500.00 mbar
- Temperature Ambient Operation Max: 40.00 °C | 104.00 °F | 313.15 K
- Temperature Ambient Operation Min: 12.00 °C | 53.60 °F | 285.15 K
- Temperature Ambient Storage Min: -30.00 °C | -22.00 °F | 243.15 K
- Temperature Ambient Storage Max: 70.00 °C | 158.00 °F | 343.15 K
- Classification Product Pressure Range: Medium Vacuum- 1 mbar - 1·10⁻³ mbar | Rough Vacuum- 1000 mbar - 1 mbar
- Classification High / Medium / Rough Vacuum pump: Medium Vacuum Pump | Rough Vacuum Pump
- Classification Dry or Wet Pump: Wet
- Classification Vacuum Pump Technology: Oil Rotary Vane Pump Two-Stage
- Classification Region: EU | US
- Default Oil Type: PFPE prepared - FOMBLIN® Y VAC 06/6 to be purchased seperately
- lubricantProductOption1: PFPE FOMBLIN® Y VAC 06/6
- Variant Oil Type: FX | FX - (PFPE prepared)
A&J Vacuum also repair / rebuild and service all Edwards E2M40, E2M80 Series Vacuum Pumps along with all other Edwards Turbo Pumps, Edwards Dry Pumps, Edwards Scroll Pumps and all other Edwards Vacuum Rotary Vane pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854.
