THERE ARE NO RETURNS ON THIS PRODUCT.
The Edwards Vacuum ESDP 30, ESDP 30A, GVSP 30Major Repair Kit / Rebuild Service Kit includes everything needed for major overhauls on the Edwards Vacuum ESDP 30, ESDP 30A, GVSP 30 Dry Scroll Vacuum Pump.
CLick Here for Edwards ESDP30 and ESDP30A Exploded View
Edwards Vacuum ESDP 30, ESDP 30A, Major Repair / Rebuild Kit contains the following parts:
DESCRIPTION | PART NO. | QTY |

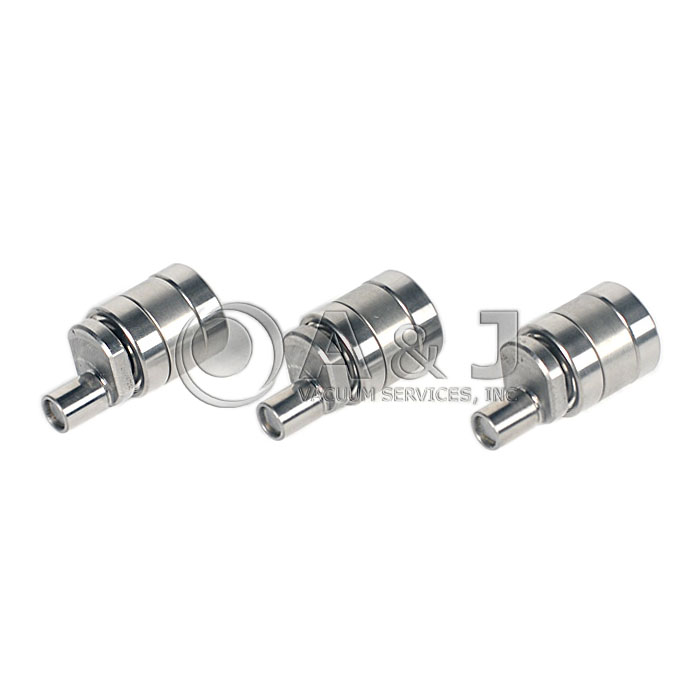

Crank Pin Assembly |
071004006S |
1 |
Viton O-Ring |
06995973 |
1 |
Grease Seal |
07193002 |
1 |
Exhaust Valve |
08802390 |
1 |
Viton Shaft Seal 26x37x6, GVSP30 |
08804072 |
1 |
Screw Phillips "TRUSS HEAD" |
400033 |
1 |
Exhaust Valve Spring |
08804390 |
1 |
Air Flush Assembly Scroll Pump |
A98881230 |
1 |
Valve Stem |
08805380 |
1 |
Needle Bearing |
08880020 |
1 |
Black Coupling Insert |
08881000 |
1 |
Viton Shaft Seal |
08882100 |
1 |
Grease Seal w/ Garter Spring |
08882150 |
1 |
Crank Needle Bearing |
08884001 |
1 |
Needle Bearing |
08884010 |
1 |
Shaft Seal 20X32X8, GVSP30 |
08885012 |
1 |
Viton O-Ring 14.5 X 1.5 MM |
320086 |
1 |
Viton O-Ring 36X1.5 |
320121 |
1 |
Bearing |
330008 |
1 |
Clear Mylar Scroll Washer |
420039 |
1 |
Tip Seal Kit |
71004026 |
1 |
5 oz. Tube Grease |
0870014 |
1 |
Viton O-Ring 17X1.5 |
20019794 |
1 |
Viton O-Ring 13.5 X 1.5 MM |
320087 |
1 |
Viton O-Ring 250 x 3 mm |
320189 |
1 |
Guide Outlet Valve |
08805041 |
1 |
Screw Washer head M3x4mm steel |
400068 |
1 |
Viton O-Ring 45 X 3 MM |
Pl23970304 |
1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS EDSP SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Edwards Vacuum ESDP12 Major Repair / Rebuild Kit includes everything needed for major overhauls on the Edwards Vacuum ESDP12 Dry Scroll Vacuum Pump.
We also do minor and major repairs for all Edwards Vacuum Dry Scroll Vacuum Pumps.
Edwards Vacuum ESDP12 Major Repair / Rebuild Kit A71005800, P71005800
DESCRIPTION | PART NO. | QTY |
Bearing Needle 6302ZZ, PFPE |
330007 |
1 |
Bearing Needle Scroll PFPE |
08880021 |
2 |
Bearing Needle Scroll PFPE |
08884002 |
2 |
Bearing Needle Scroll PFPE |
08884011 |
1 |
Coupling Sox, Open Center |
670086120 |
1 |
19 Grease Tec,. 5 oz tube |
870014 |
1 |
Washer Thrusti, 1.09 X .6 X .04 |
420038 |
1 |
Screw Phillips, "Truss Head" |
400033 |
4 |
O Ring Buna, 11.6 X 2.4 MM |
02120033 |
1 |
O Ring Viton, 11 X 1.5 MM |
02122009V |
4 |
O Ring Viton, 220 X 3 MM |
06995974 |
1 |
O Ring Viton, 45 X 3 MM |
Pl23970304 |
1 |
Ring Retaining MI7, 472, S/S |
470014 |
1 |
Crank Pin Single |
71002006S |
2 |
G-Seal, FS-1, Scroll Pump |
08883002 |
1 |
G-Seal, FS-2, Scroll Pump |
08883005 |
1 |
G-Seal, OS Scroll Pump |
08883001 |
2 |
Seal Shaft, FS-1, Scroll Pump |
08883004 |
1 |
Seal Shaft, FS-2, Scroll Pump |
08883003 |
1 |
Tip Seals, ESDPI2 |
A71002026 |
1 |
Spring |
08801050 |
1 |
Spring Exhaust Valve, ESDP30A |
08804390 |
1 |
Guide Outlet Valve |
08805042 |
1 |
Valve Exhaust Stem |
08805381 |
1 |
Screw Washer head. M3x4mm steel |
400068 |
1 |
THERE ARE NO RETURNS ON THIS PRODUCT.
A&J Vacuum Repair / Rebuild and Service Varian EDWARDS EDSP SCROLL PUMPS, XDS Pumps and all Scroll pump service along with all other EdwardsVacuum Rotary Vane Pumps, Edwards Turbomolecular Pumps repair, Edwards Leak Detector Repair and all other Edwards Vacuum pumps. Please contact us for information on service program or click here http://www.ajvs.com/service.php to go to our Service page. We also offer Emergency service upon request. For more information Please contact A&J Vacuum Services at 973-249-0854
The Edwards Vacuum ESDP30, GVSP30 Tip Seal Replacement Set includes everything needed for overhauls on the Edwards Vacuum ESDP30, GVSP30 Dry Scroll Vacuum Pump.
We also do minor and major repairs for all Edwards Vacuum Dry Scroll Vacuum Pumps.
THERE ARE NO RETURNS ON THIS PRODUCT.

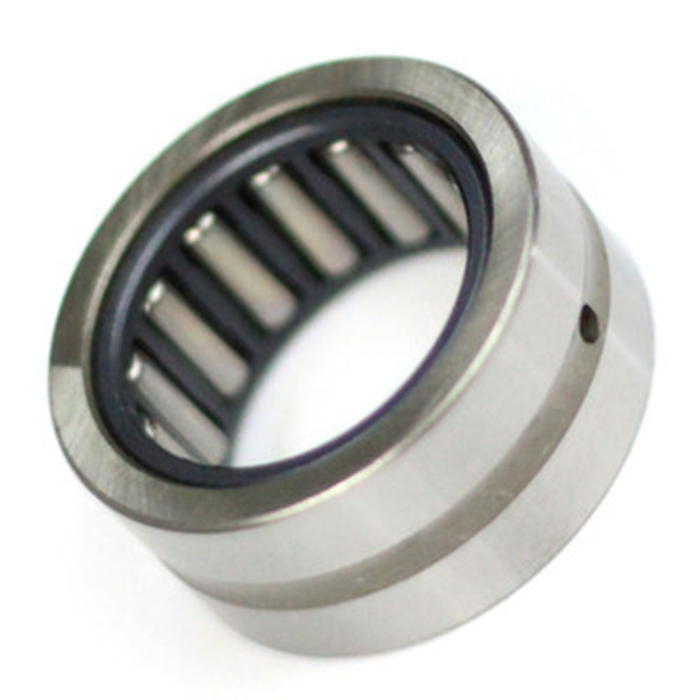

Edwards ESDP30 and GVSP30 Dry Scroll Vacuum Pump Needle Bearing, 08880020
Also used on Anest Iwata ISP 500B, ISP500C, DIS500, DIS501, DS600, Leybold SC30D.
THERE ARE NO RETURNS ON THIS PRODUCT.
